Installation and operating instructions, ATS022
1SDH000760R0002, L4106
30
8.2.3.2 Main Menu page
From Default page is entered to Main Menu page by pushing the Enter key. Main Menu page is the main
page that allows entering in all the confi guration sub-pages:

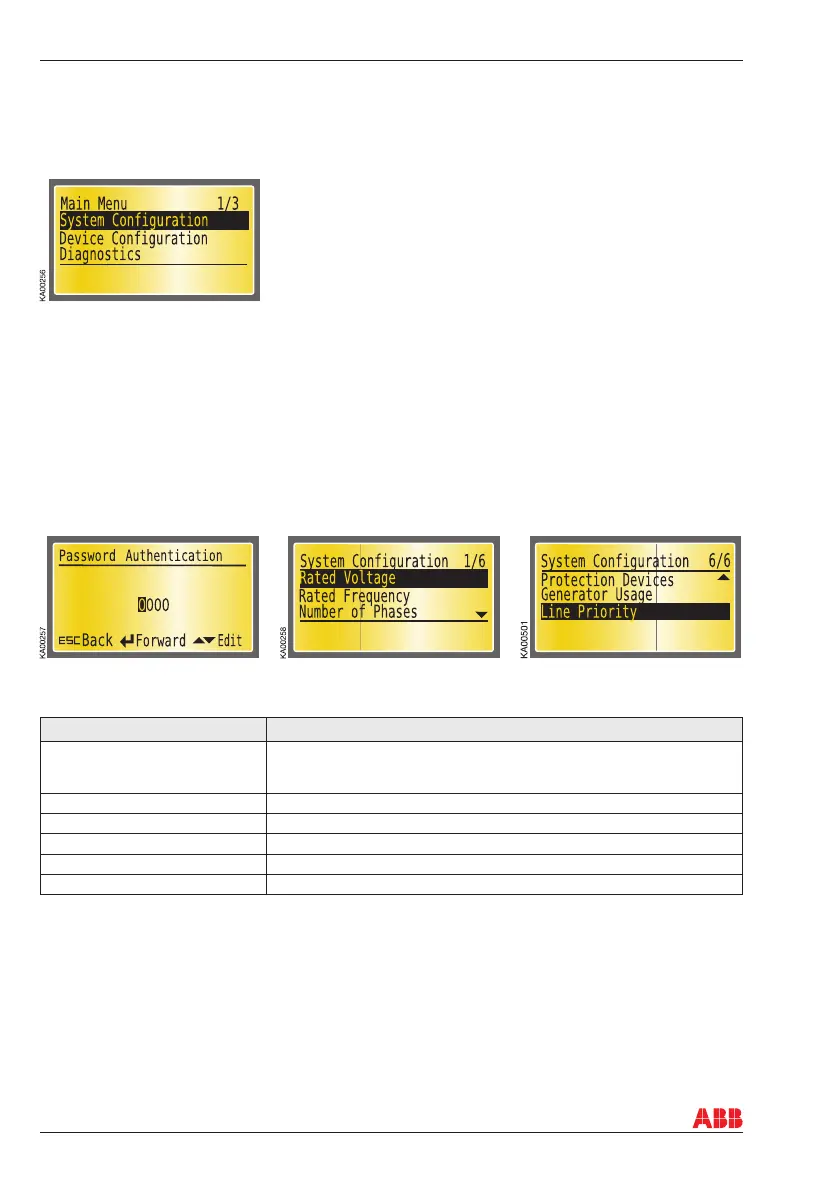

Figure 8.6 The Main Menu page allows the entering in all the confi guration sub-pages
8.2.3.3 System Confi guration
The System Confi guration sub-page can be confi gured with the attributes of the monitored lines; see
table 8.2. The attribute selection and its value changes are made by using UP, DOWN and ENTER keys.
The system confi guration requires a password. Password consists of 4 numbers, it is given by UP,
DOWN and ENTER keys. The password for the fi rst entering to the system is 0001. Please, change the
password to your own according the guidelines under the subpage Device Confi guration; see pages
35 and 36. The password is valid one minute after leaving System Confi guration; for example, back to
the Main Menu page. After that time you have to give the password again when returning to the System
Confi guration pages. If the password is forgotten/lost, please, contact product support.
Table 8.2 Attributes and values of the System Confi guration
Attribute Values
Rated operational voltage U
e
100V/57V– 115V/66V - 120V/70V - 208V/120V - 220V/127V - 230V/132V
- 240V/138V - 277V/160V - 347V/200V - 380V/220V - 400V230V - 415V/240V
- 440V/254V - 480V/277V
Rated frequency 50Hz - 60 Hz, 16 2/3 Hz, 400 Hz
Number of phases 1-phase / 3-phases with N / 3-phases without N
Protection devices CBs / CBs + Bus Tie
Generator usage No Generator / Generator in use
Line Priority No Line Priority / Line 1 (LN 1)
8. Using automatic transfer switch ATS022
Figure 8.7 System Confi guration requires a password
