10.4.1 Process Supply Voltage
CAUTION!
The process supply voltage must be included in the earthing concept (e. g.
earthing of the minus pole).

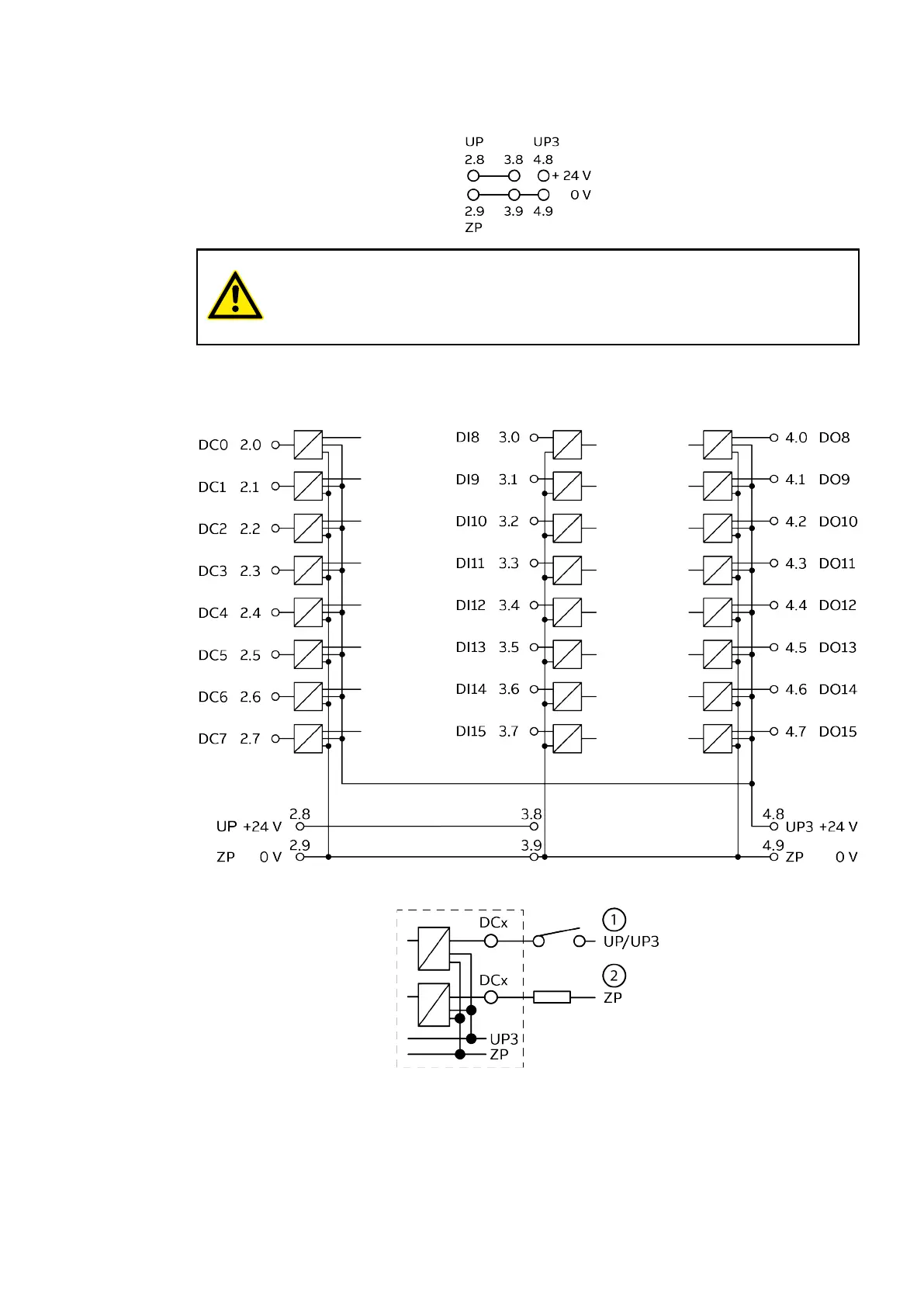

10.4.2 Inputs/Outputs
1 Example for connection as an input
2 Example for connection as an output
Example Input
or Output
CI542-DP
Connection > Inputs/Outputs
2019/11/15 3ADR024117M02xx, 11, en_US 85
