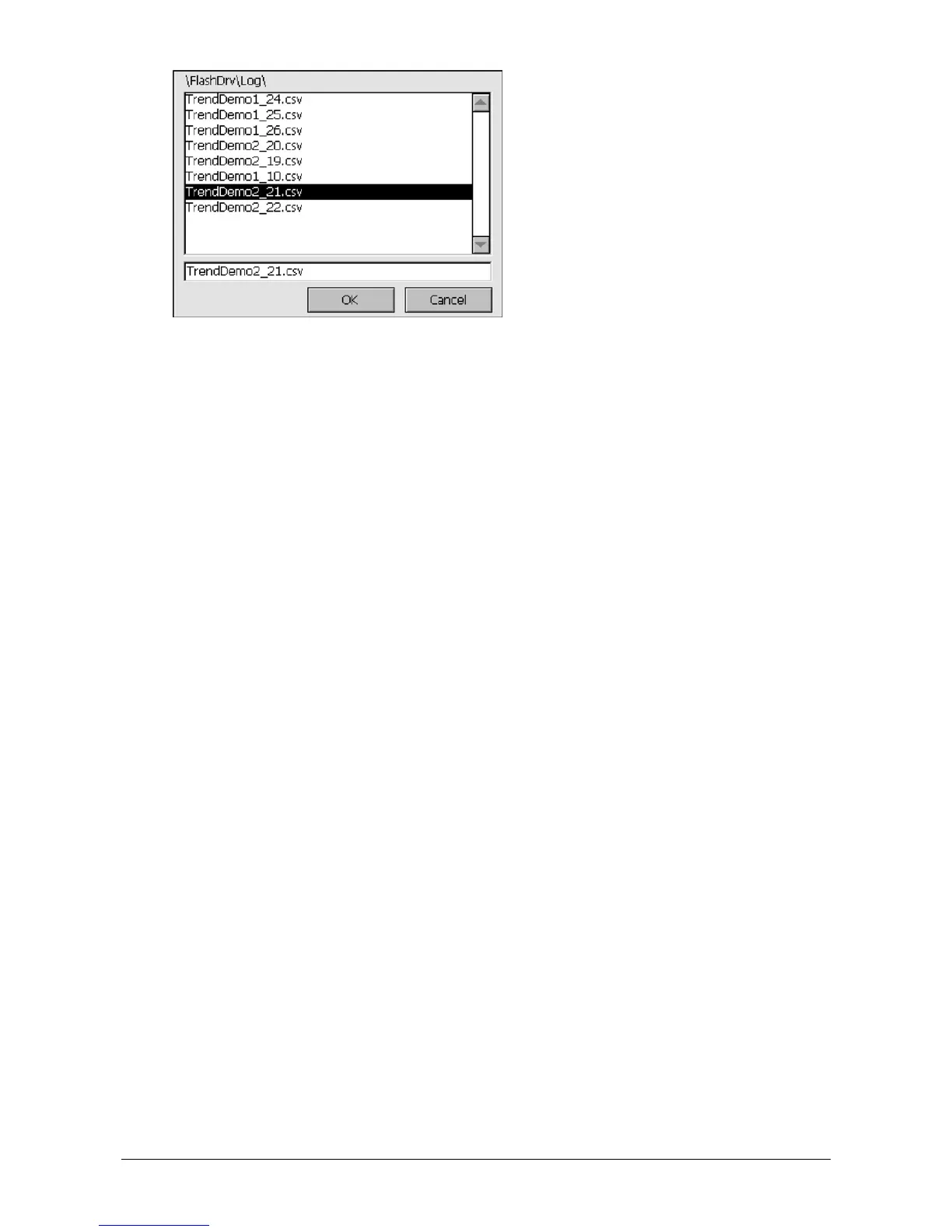

Enabled, the built-in "MBFileOpenDlg.teq" is used:

<scale_factor> Scale Factor

At the moment this is only active for CoDeSys HMI's and Kiosk-Mode <kiosk> = 2. This factor sets the

scaling of the whole HMI. Default is scaling factor 1, which means original size of the elements. A special

case is introduced with scale_factor = 0. In this case, the MicroBrowser will scale the HMI due to the

physical screen dimensions, so that the view size given by CoDeSys is streched or shrunk to meet the

physical screen dimensions.

<export_en> Export Enable

When this flag is set to 1, the MicroBrowser will export all the views that are visualized to the local storage

system and path given by the parameter <export_path>. This feature can also be used to translate a

CoDeSys HMI into a SpiderControl HMI. In that case both, the .xml and .teq files, are being generated

and stored on the local storage system.

<export_path> Export Path

This is the path to which the files are exported, when the export setting is enabled

<export_en>1</export_en>.

ABB CP600 User Manual
