ABB DC522 User Manual

34.2 Disassembly
34.3 Assembly with Screws
NOTICE!
Damage to the modules without using wall mounting accessory!
Wall mounting accessories (TA526) prevent bending and damaging the
modules during assembly with screws.
Inserting the wall mounting accessories TA526 is mandatory.

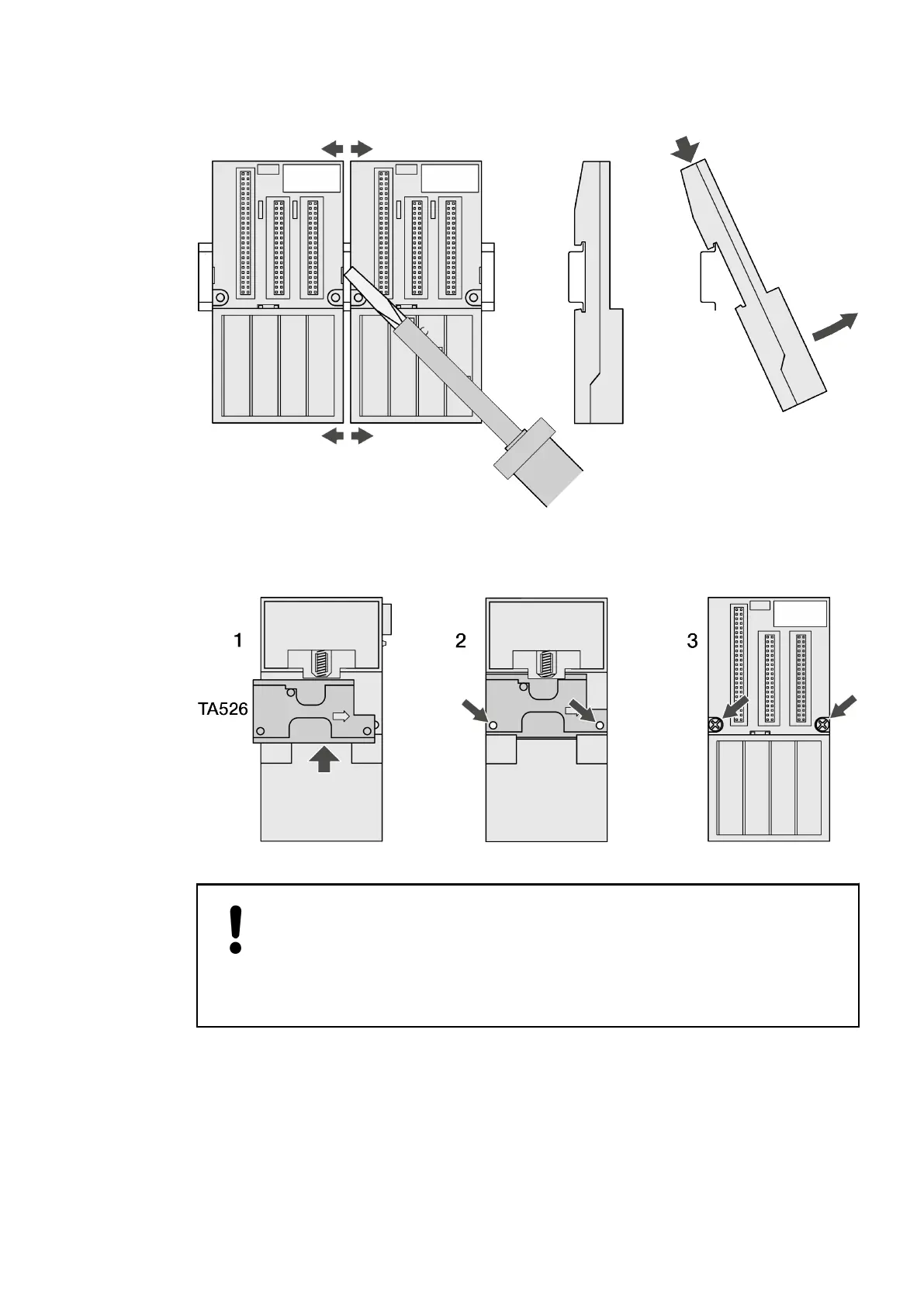

1. TA526 is snapped on the rear side of the module like DIN rails.
2. Fasten module with screws (M4, max 1.2 Nm) from the front side.
TU5xx
Assembly with Screws
2019/11/153ADR024117M02xx, 11, en_US258
