ABB DCS800 User Manual

129
Service
3ADW000195R0501 DCS800 Service Manual e e
Download SDCS-COM-8 firmware
Requirements:
 In case the PCMCIA adapter NDPA-02 with NDPC-12 is used the NtNisa
drivers have to be installed (see NtNisa5x.zip or NtNisa5x.exe) before
downloading the firmware.
 In case the USB adapter RUSB-02 is used together with DriveWindow 2.22
(and higher) and firmware package COM-8 88x160.zip (and higher) no
additional actions have to be taken.
Firmware download:
 Close all applications especially DriveWindow and DriveWindow Light!

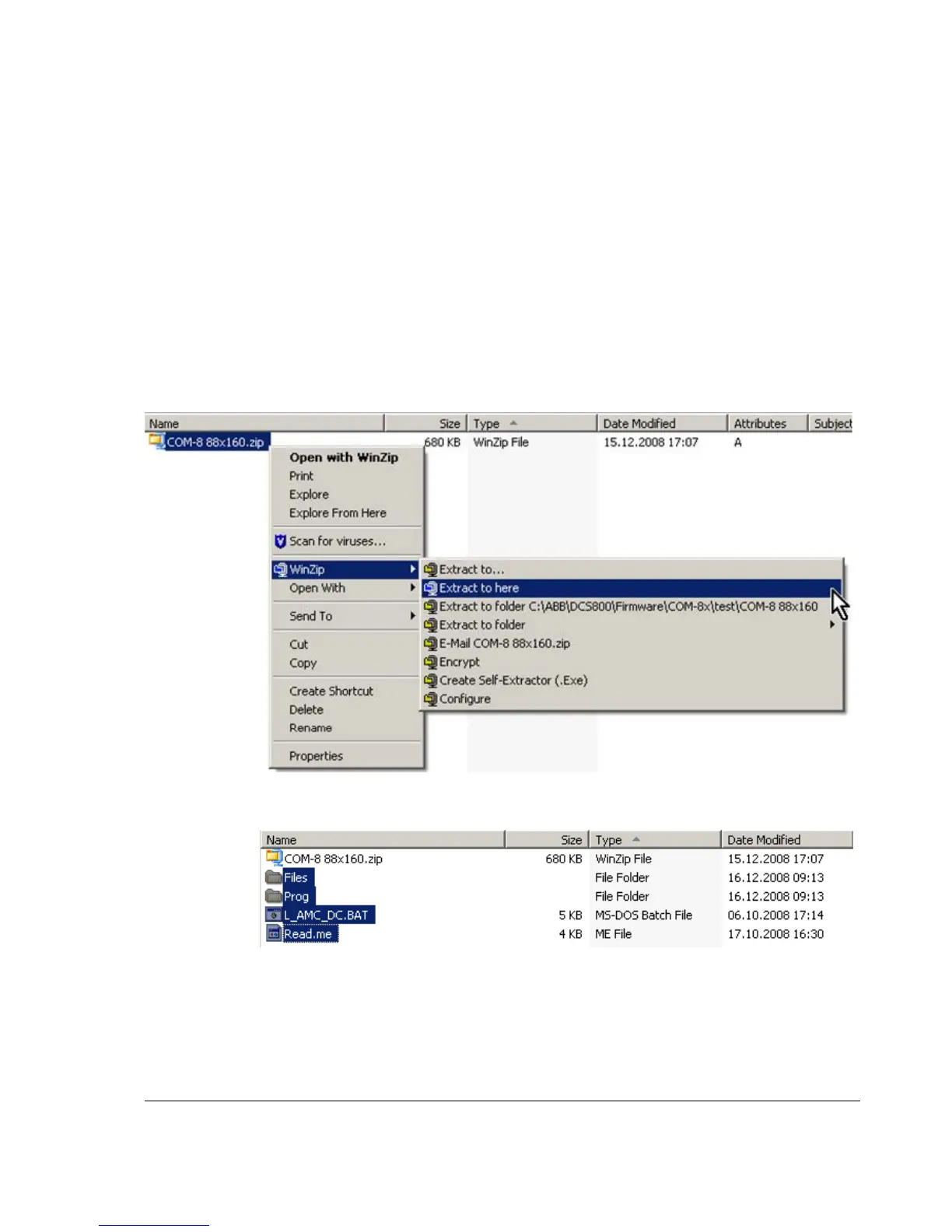

 Unzip the SDCS-COM-8 firmware (file COM-8 88xxxx.zip) by right click on the
zip file:
 Following files and folders will be created:
