4.3 Adjusting the device

Pos: 71 /Di nA 4 - A nleitu ngen Onli ne/ Ueb ersc hrift en/3 ./A bschl uss wide rsta nd @ 19\ mod _13219 5807 990 6_1 5.do cx @ 1100 83 @ 3 @ 1

Pos: 72 /D i nA4 - A nlei tu ngen Onlin e/In hal t/KN X/D o orEnt ry/B edie nun g/A bschl uss wide rsta nd s et zen 83 220 -AP-x xx @ 19\ mod _13 1072 339 236 9_1 5.do cx @ 1 078 41 @ @ 1

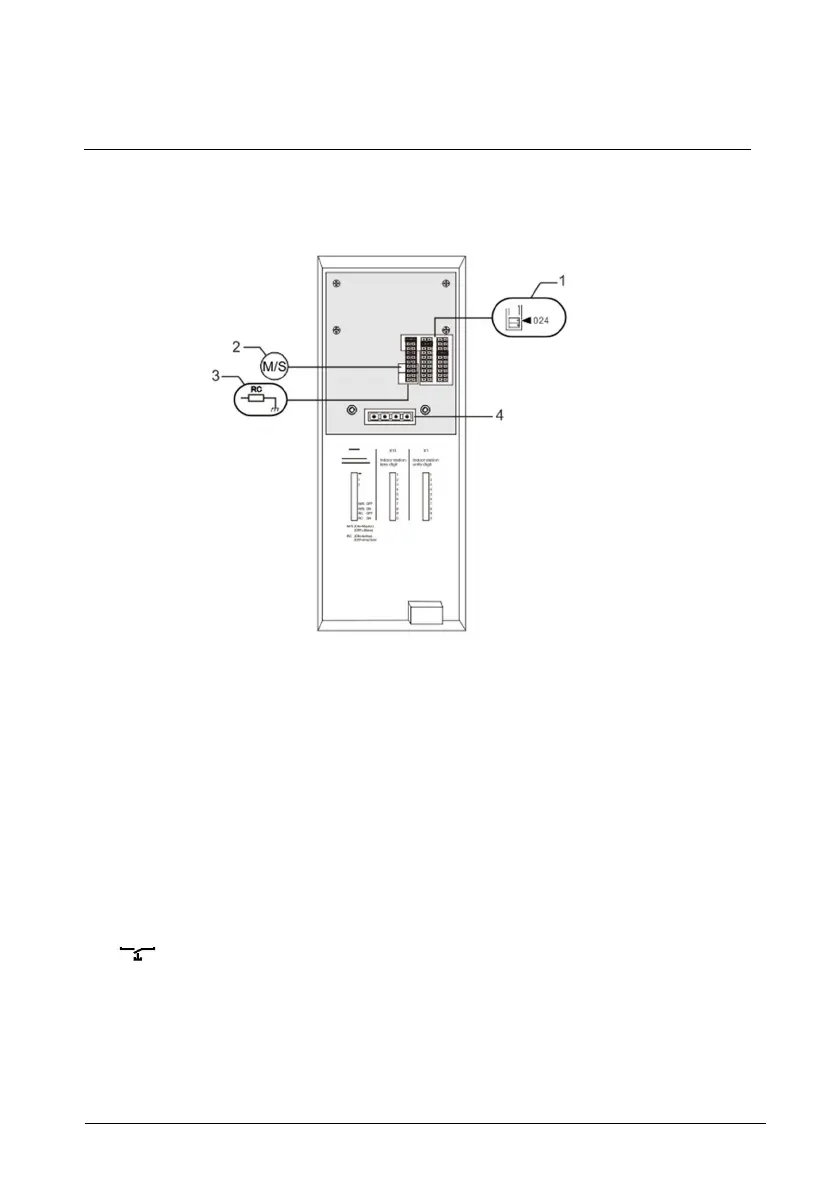

Fig. 2:

Pos: 74 /Di nA 4 - Anl eitu ngen Onlin e/In halt/ KNX /Do orEnt ry/B edie nun g/M aste r/Slav e Sc halte r setz en 832 20-AP -xxx @ 19\ mod_1 310 723 320 966_15. doc x @ 10 783 3 @ @

1. X100 X10 X1

Jumper to set the address of the indoor station.

EXAMPLE: setting address 024

2. Master /Slave function

Only one indoor station in each apartment must be set as "Master" (Jumper should

be set as 'M/S on'). All additional indoor stations in the same apartment must be

set as "Slave" (Jumper should be set as 'M/S off').

3. Terminal resistor

In video installations or mixed audio and video installations, the Jumper must be

set as 'RC on' on the last device of the line.

4. a b = Bus connection

= Door bell connection
