ABB M22001 series User Manual

ABB-Welcome
Operations
|
— 9 —
During settings, if the value set is beyond the wanted number, press , both
tens digit and units digit will go back to the default value 0.
4. Exit the programming mode
Hold this programmable button for 3 seconds until the blue LED & red LED flash
once simultaneously.
Pos: 67 /DinA 4 - Anleitungen Online/Ueberschrif ten/2./Rei nigung @ 19\ mod_131073398 0533_15.docx @ 107853 @ 2 @ 1
Pos: 70 /DinA 4 - Anleitungen Online/Ueberschrif ten/2./Gera eteeinstellunge n @ 18\mo d_130276884774 4_15.docx @ 1 03548 @ 2 @ 1
4.3 Adjusting the device
Pos: 71 /DinA 4 - Anleitungen Online/Ueberschrif ten/3./Absc hlusswiderst and @ 19\mod_ 132195807990 6_15.docx @ 1 10083 @ 3 @ 1
Pos: 72 /DinA 4 - Anleitungen Online/Inhalt/KN X/DoorEntry/B edienung/Absc hlusswidersta nd setzen 8322 0-AP-xxx @ 19\mod_1 310723392369_ 15.docx @ 1078 41 @ @ 1

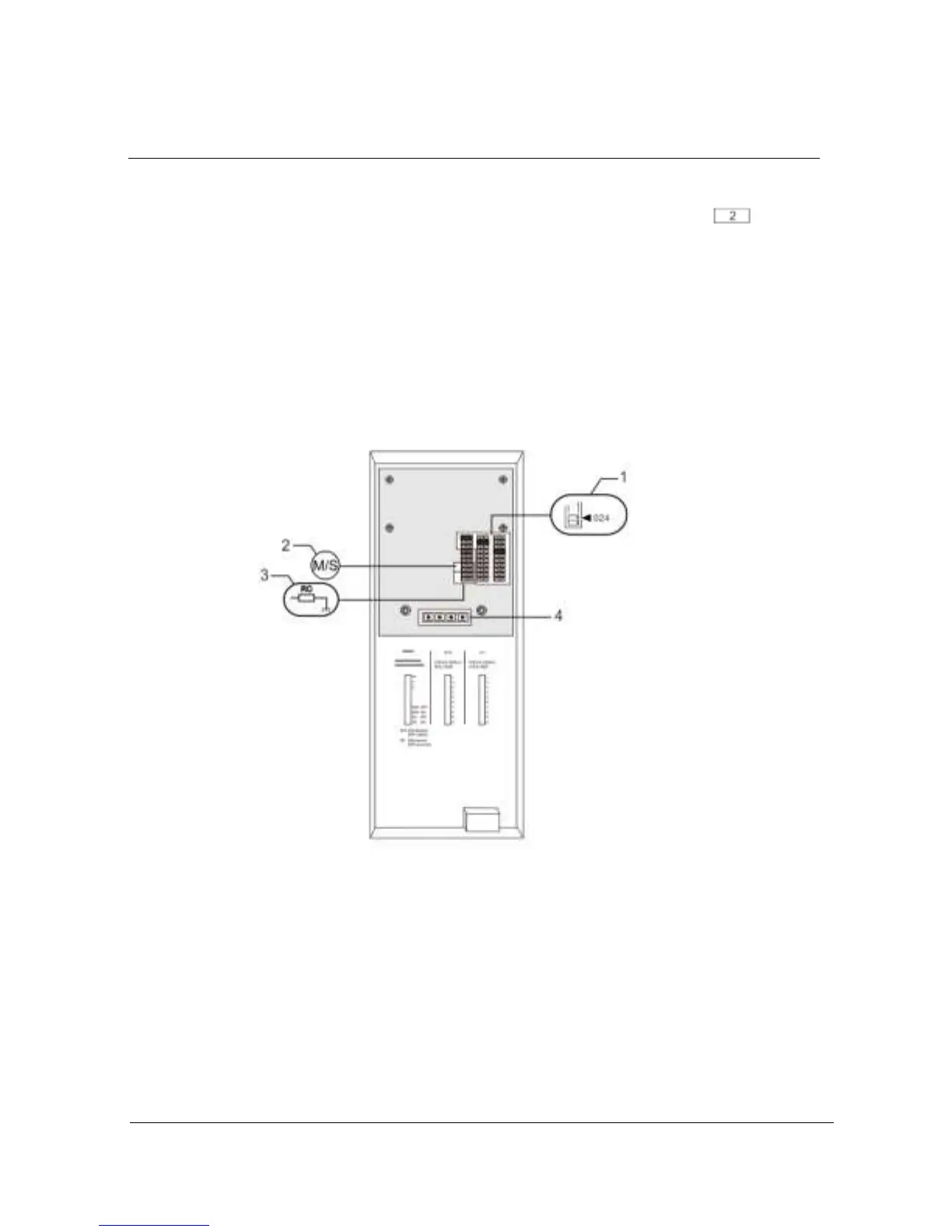

Fig.
2
:
Pos: 74 /DinA 4 - Anleitungen Online/Inhalt/KN X/DoorEntry/B edienung/Mast er/Slave Schalt er setzen 83 220-AP-xxx @ 19\mod_1 31072332096 6_15.docx @ 1 07833 @ @
1. X100 X10 X1
Jumper to set the address of the indoor station.
EXAMPLE: setting address 024
2. Master /Slave function
Only one indoor station in each apartment must be set as "Master" (Jumper should
