Quick installation guide - MicroFlex e190
6
Electrical installation
Notes:
(1) If shielded supply cable is used, and the
conductivity of the shield is less than 50% of
the conductivity of a phase conductor, use a
cable with a ground conductor or a separate
PE cable.
(2) MicroFlex e190 can be powered from a
DC supply. See User’s Manual.
(3) AC supply, 1-phase 200...240 V or 3-
phase 200...240 V phase-to-phase (±10%).

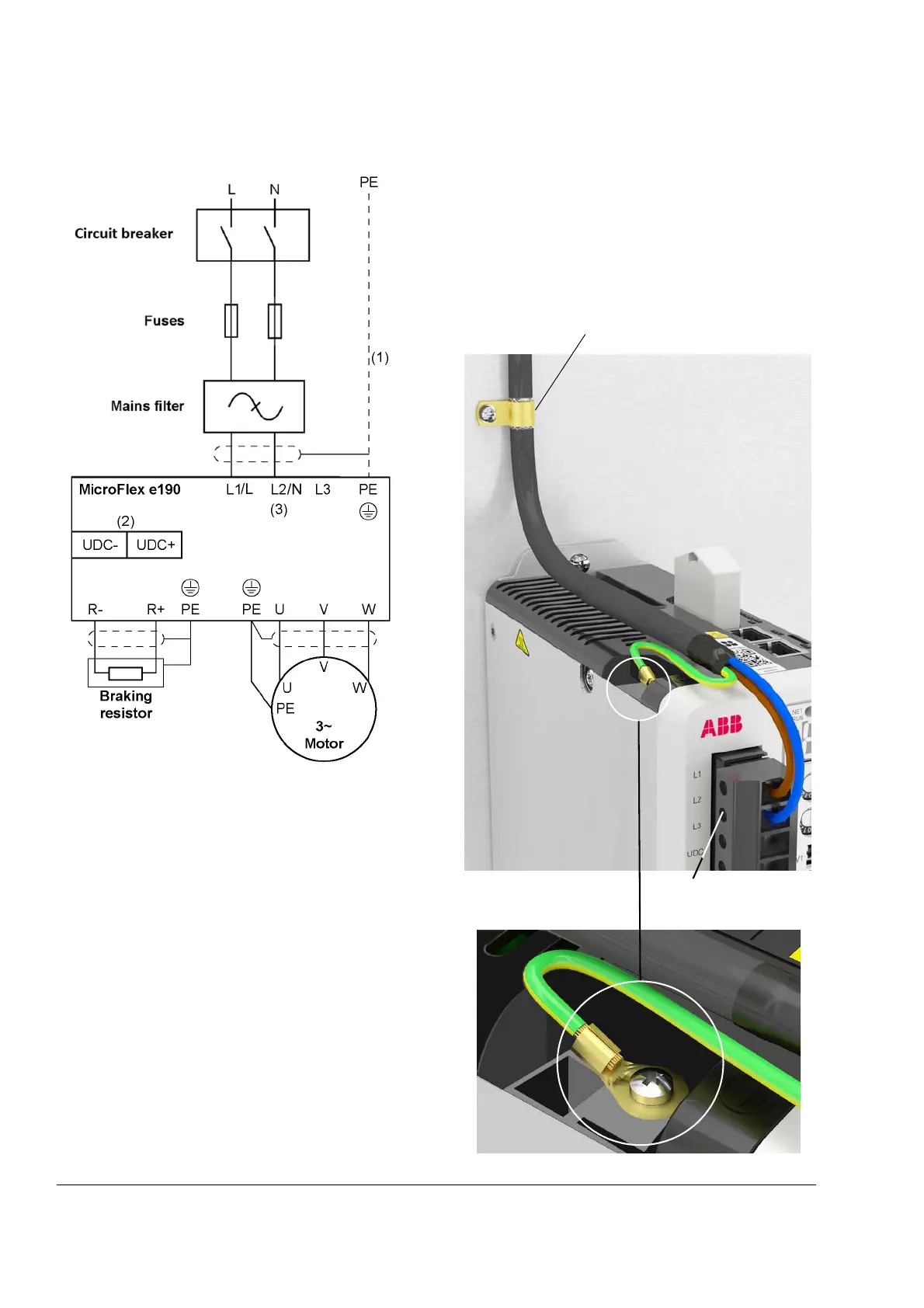

Power cabling: input
• Attach the included terminal blocks to the
drive.
• Connect the supply, resistor (if present)
and motor cables to the appropriate
terminals of the drive.
• Strip the power cables so that the shields
are bare at the cable clamps.
0.5...0.6 N·m
(4.4...5.3 lbf·in)
To Next Page
