Quick installation guide - MicroFlex e190
9

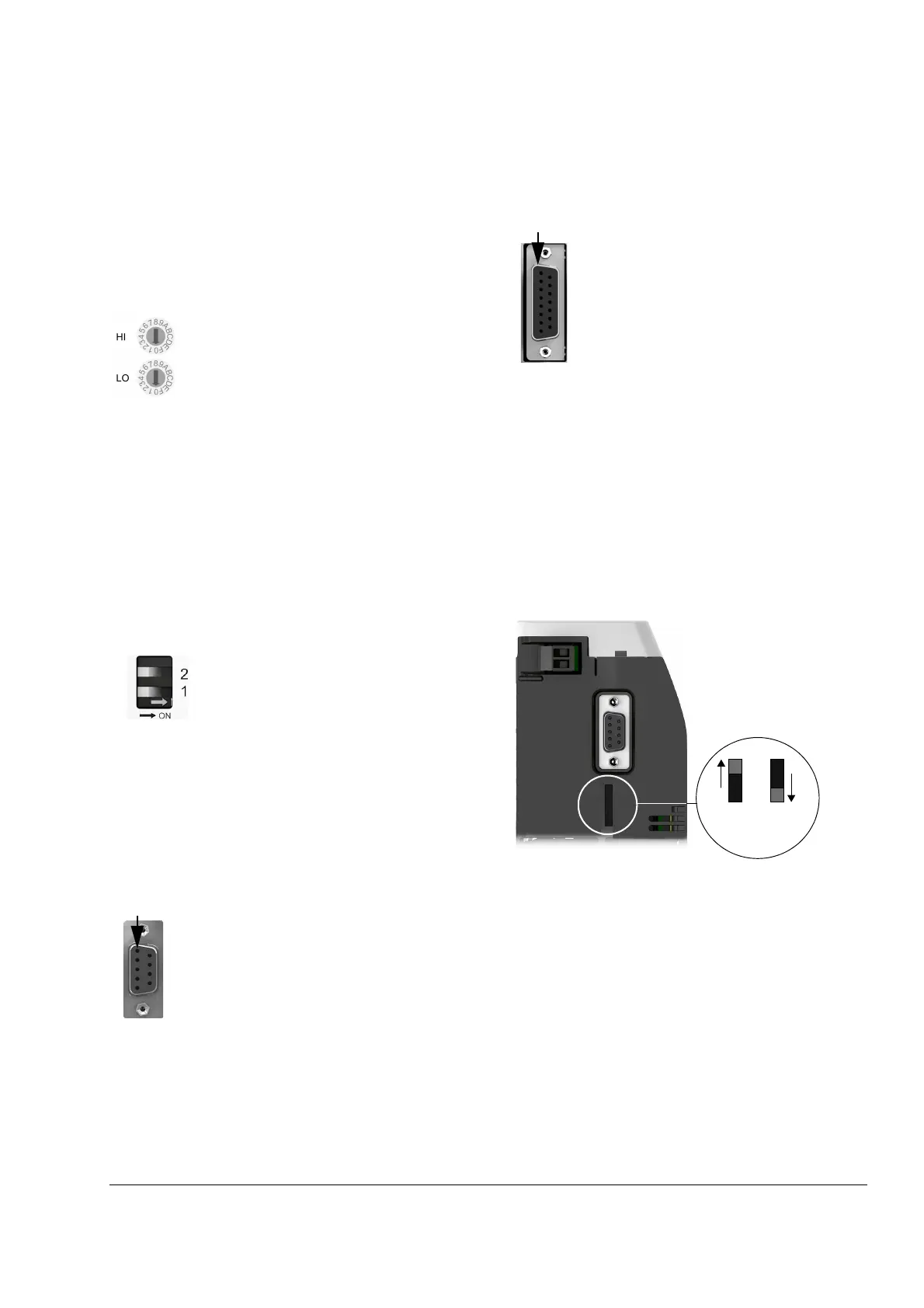

E1 / E2: Ethernet port configuration
The rotary switches are read once at start-
up. The switches select the mode of
operation for the E1 and E2 Ethernet
fieldbus connectors on the top panel of the
drive.
SW1: Mode and IP address selection
The linear switches are read once at start-
up. The switch 2 selects the mode of
operation for the drive. The switch 1 selects
IP address assignment for the E3 host port.
X7: Incremental encoder in / out
The secondary incremental encoder input/
output connection provides A/B channels
and a Z index channel.
X8: Motor feedback in
Universal encoder interface.
More connections, see User’s Manual.
Feedback supply voltage
The selector sets the supply output voltage
on feedback connector X8, Pin 12. Check
that the correct output voltage is selected.
Most feedback devices require 5 V (default),
but some Hiperface devices require 8 V.
1
2
3
4
5
CHA+
CHB+
CHZ+
(NC)
GND
6
7
8
9
CHA-
CHB-
CHZ-
+5 V out
Value Mode
00 EtherCAT slave mode
01-EF Ethernet POWERLINK CN mode:
selected value is the node ID
F0-F1 Reserved
F2* PROFINET slave mode
F3-FF Reserved
*Dual port PROFINET within E1/E2 only
Switch OFF ON
2 Normal Recovery
operation mode
1 Normal IP Fixed IP address
configuration (192.168.0.1)
Pin 1
1
2
3
4
5
6
7
8
Data+
(NC)
(NC)
(NC)
(NC)
(NC)
(NC)
(NC)
9
10
11
12
13
14
15
Data-
(NC)
(NC)
+5.5 V out
GND
(NC)
(NC)
Pin 1
5 V 8 V
Smart Abs
