Section 3 Location of interface ports and LED‘s
Removal
Press down the support at the back of the unit using a screwdriver. See Figure 7.
Cooling

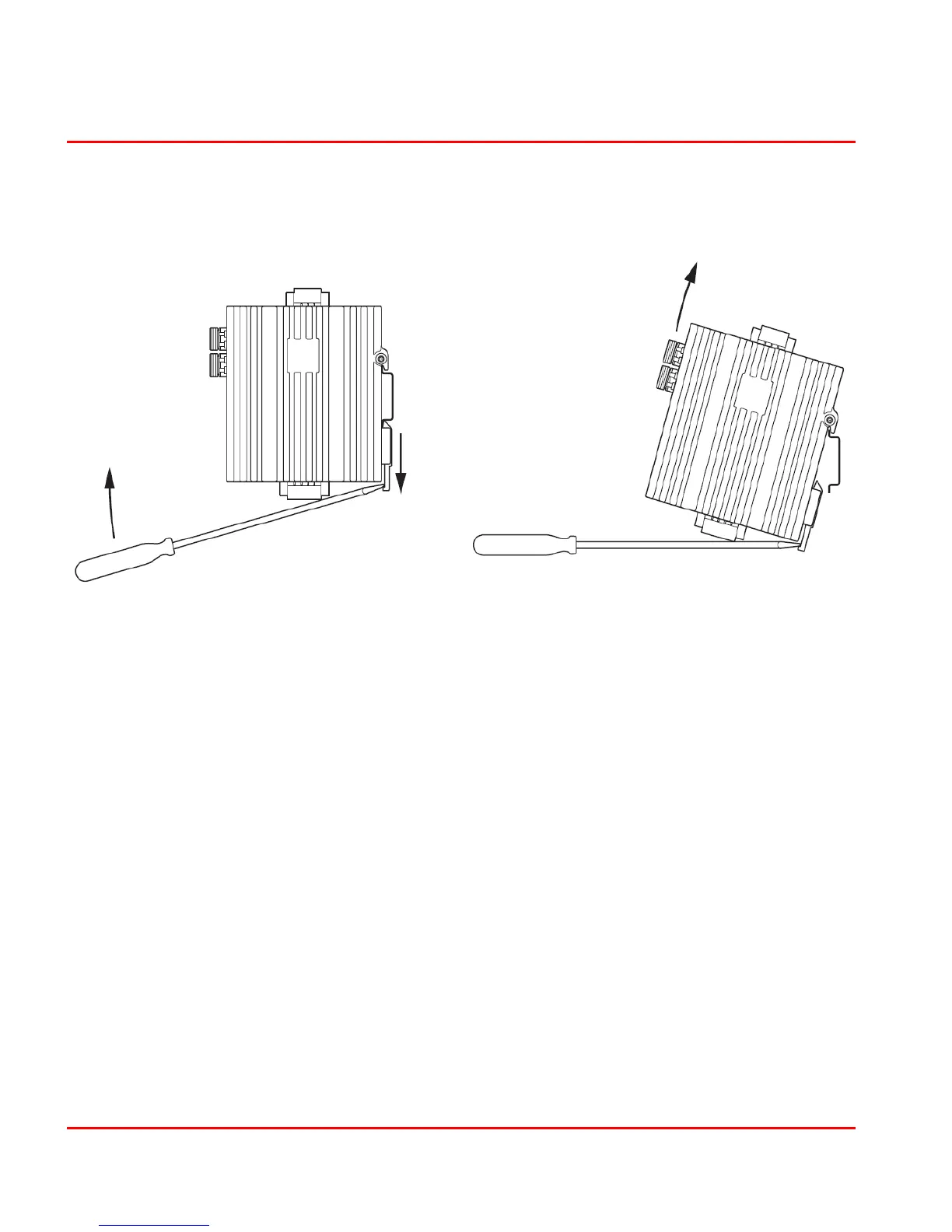

Figure 7. Removing NE810 with integrated DIN-clip
This unit uses convection cooling. To avoid obstructing the airow around the unit,
use the following spacing rules. Minimum spacing 25 mm (1.0 inch) above / below
and 10 mm (0.4 inches) left / right the unit.
3BSE080633 19
