OVR-15, 27 & 38 LV cabinet Instruction Manual
4.2.2 Intelligent battery charger:
The Intelligent battery charger indicated here is to convert the auxiliary power supply from connected
from External PT or equivalent to suitable form required by components like Battery, RER615, ACM and
external communication modem. This Battery charger is temperature compensated.
4.2.3 Auxiliary supply
The LV control cabinet requires auxiliary power to operate the Recloser, Actuator control Module (ACM),
HV & LV cubicle heating, illumination, etc. A separate outdoor type 2 x1.5 Sq.mm jacketed cable is
required to connect the external auxiliary power to the LV cabinet. Pl refer the Recloser quick reference
guide for details.
For the auxiliary supply voltage / frequency applicable for your recloser, please refer the approved / as
built drawings.
MCB is provided inside the cubicle for protection of Intelligent Battery charger, cubicle heating,
illumination, and auxiliary power socket outlet.
The auxiliary power outlet on the inner swing door is only meant for laptop charging in
emergency situations. It should not be used for any other means as it may burden the
external auxiliary power source
.
4.2.4 Actuator Control Module
The Actuator Control Module (ACM) module gets its power supply from
Intelligent battery charger.
ACM regulates the closing and tripping signals to magnetic actuator as per the
feedback from HV unit and interaction with relay by charging/discharging the
capacitors.
ACM is hardwired to RER615 relay to perform operations.

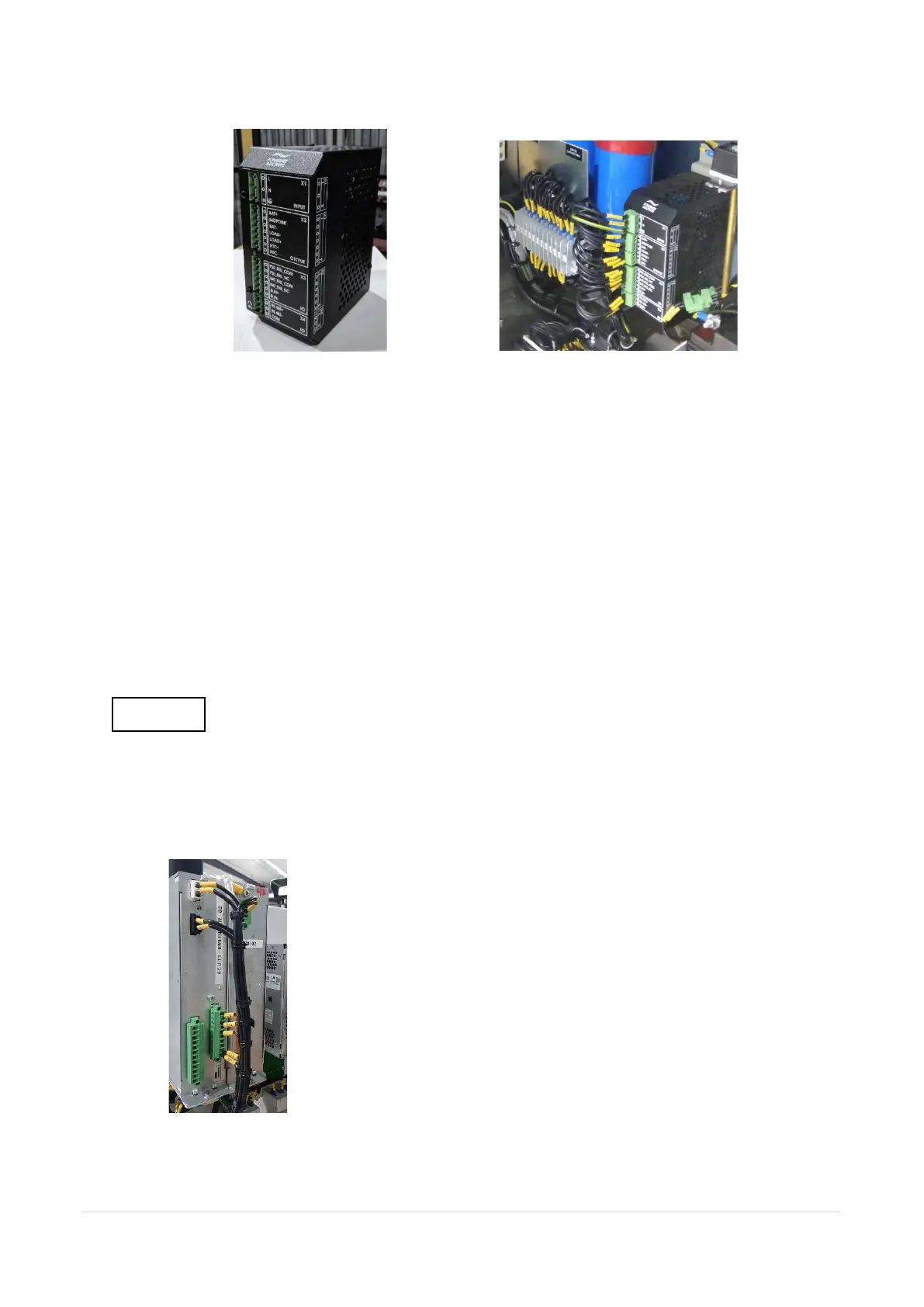

Figure-8: Actuator Control Module
