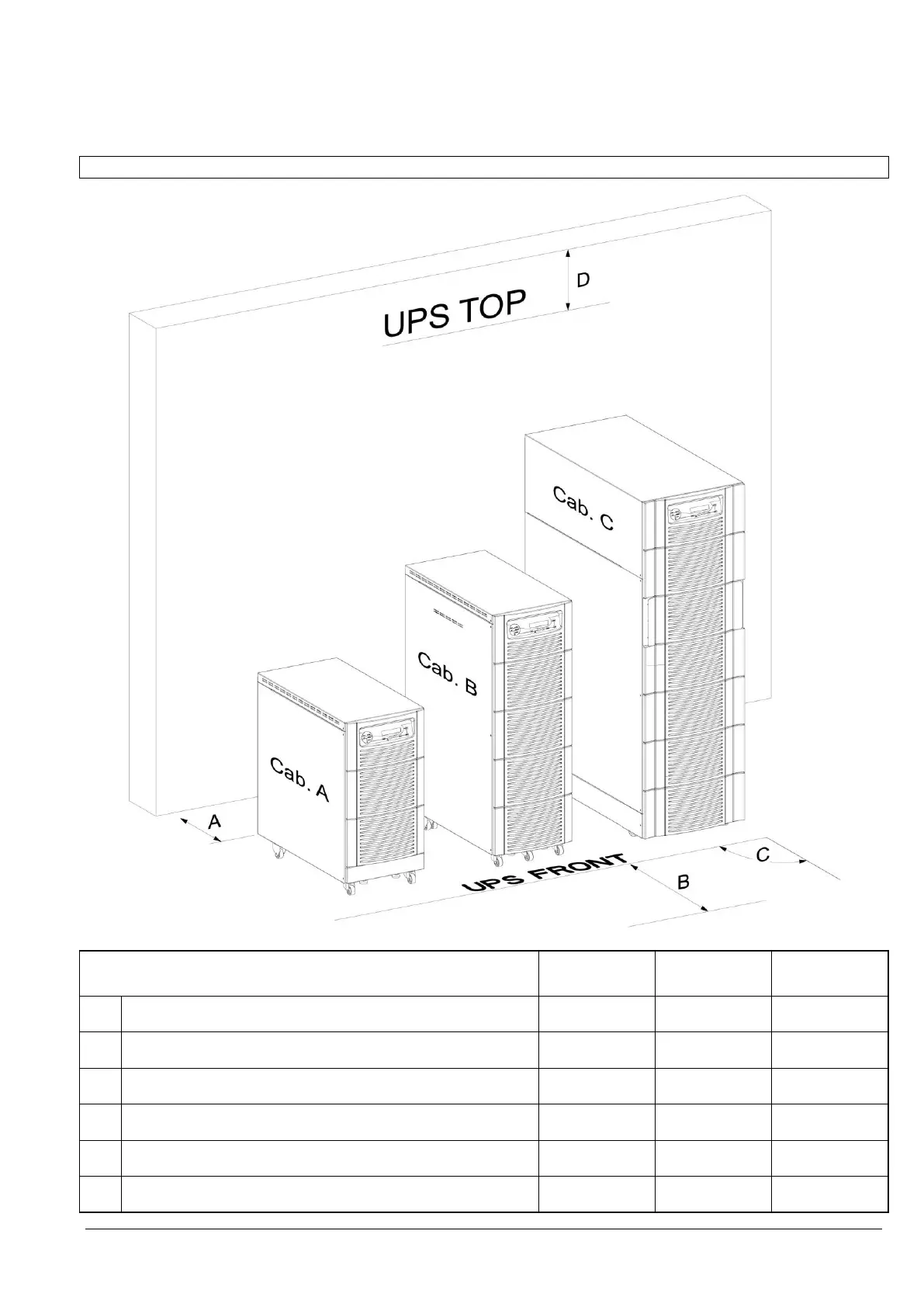

10.11 INSTALLATION PLANNING
PowerScale Cabinets
Cab. A
Cab. B
Cab. C
A
Back clearances for ventilation (forced air outlet) / access for
wiring in case the unit cannot be pulled forward
200 / 500 mm
200 / 500 mm
200 mm / front
wiring
B
Front clearances for pulling the unit forward (to get rear access
for wiring or side access for battery. replacement)
800 mm
800 mm
1000 mm
C
Maximum door opening angle (there is no door)
-
-
-
D
Top Clearance, not needed
0 mm
0 mm
0 mm
Side clearances R for vent. (natural air-exchange) / access for
battery replacement in case the unit cannot be pulled forward
50 / 800 mm
50 / 800 mm
0 / 800 mm
Side cl. L for ventilation (natural air-exchange)
50 mm
50 mm
0 mm
