ABB PVI-3.0-TL-OUTD User Manual

- 14 -
000399BG
2 - Characteristics
UNO
N.B. The labels must NOT be
hidden with objects and ex-
traneous parts (rags, boxes,
equipment, etc.); they must be
cleaned regularly and kept vi-
sible at all times.

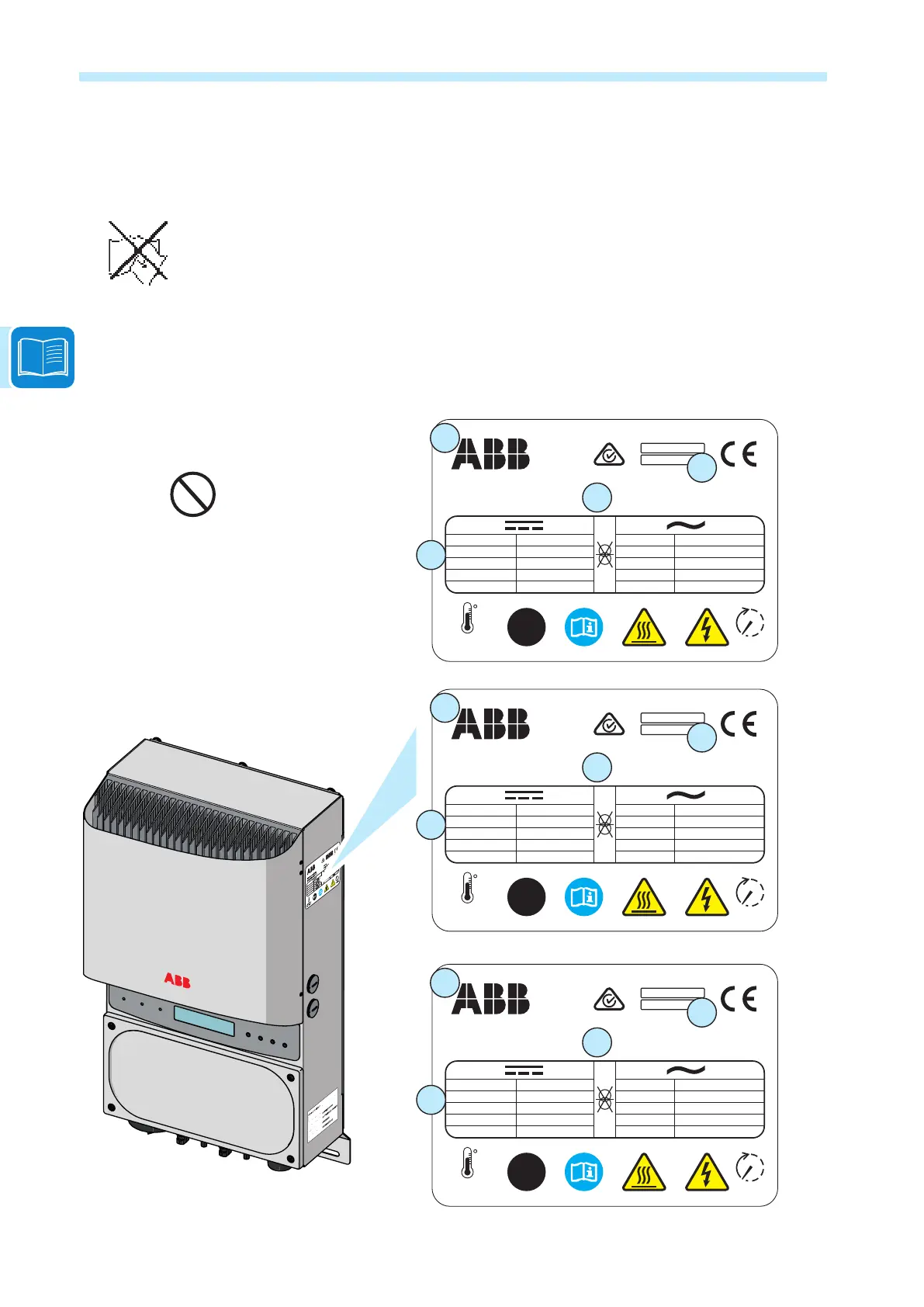

Identification of the equipment and the manufacturer
The technical data shown in this manual do not in any case replace
those shown on the labels attached to the equipment.
The labels attached to the equipment must NOT be removed, damaged, dirtied, hidden, etc.
The approval label contains the following information:
1. Manufacturer
2. Model
3. Rating data
4. Certication marks
V dc max
I dc max
V dc MPP
V dc, Full Power
I sc max
V acr
f r
I ac max
P acr (cos φ = ±0.9)
P acr (cos φ = 1)
MODEL:
PVI-3.0-TL-OUTD
IP65
5 minutes
600 V
90 - 580 V
2x10 A
160 - 530 V
2x12.5 A
Made in Italy
DINVVDE 0126-1-1
PROTECTIVE CLASS: I
230 V 1Ø
50 Hz
3000W @ 45°C amb.
3000 W @ 50°C amb.
14.5 A
-25 to +60 °C
-13 to +140 °F
SOLAR INVERTER
www.abb.com/solar
1
4
2
3
V dc max
I dc max
V dc MPP
V dc, Full Power
I sc max
V acr
f r
I ac max
P acr (cos φ = ±0.9)
P acr (cos φ = 1)
MODEL:
PVI-3.6-TL-OUTD
IP65
5 minutes
600 V
90 - 580 V
2x16 A
120 - 530 V
2x20 A
Made in Italy
DINVVDE 0126-1-1
PROTECTIVE CLASS: I
230 V 1Ø
50 Hz
3600W @ 50°C amb.
3600 W @ 55°C amb.
17.2 A(*)
(*): 16 A for UK G83 Version
-25 to +60 °C
-13 to +140 °F
SOLAR INVERTER
www.abb.com/solar
1
4
2
3
V dc max
I dc max
V dc MPP
V dc, Full Power
I sc max
V acr
f r
I ac max
P acr (cos φ = ±0.9)
P acr (cos φ = 1)
MODEL:
PVI-4.2-TL-OUTD
IP65
5 minutes
600 V
90 - 580 V
2x16 A
140 - 530 V
2x20 A
Made in Italy
DINVVDE 0126-1-1
PROTECTIVE CLASS: I
230 V 1Ø
50 Hz
4200W @ 45°C amb.
4200 W @ 50°C amb.
20 A
-25 to +60 °C
-13 to +140 °F
SOLAR INVERTER
www.abb.com/solar
1
4
2
3
