22. Mounting methods
By means of appropriate mounting accessories, the
standard relay case can be flush mounted, semi-
flush mounted or wall mounted. The flush mounted
and wall mounted relay cases can also be mounted
Further, the relays can be mounted in any standard
19” instrument cabinet by means of 19” mounting
panels available with cut-outs for one or two relays.
23. Relay case and plug-in unit
The relay cases are assigned to a certain type of
plug-in unit. For safety reasons, the relay cases for
current measuring relays are provided with auto-
matically operating contacts for shortcircuiting the
CT secondary circuits when a relay unit is with-
drawn from its case. The relay case is further pro-
vided with a mechanical coding system preventing
the current measuring relay units from being in-
serted into relay cases intended for voltage mea-
suring relay units.
24. Selection and ordering data
Use ABB Library to access the selection and order-
ing information and to generate the order number.
Order Number Tool, supports order code creation
for ABB Distribution Automation IEC products with
emphasis on, but not exclusively for, the Relion
product family. PST is an easy to use, online tool al-
ways containing the latest product information.
The complete order code can be created with de-
tailed specification and the result can be printed
and mailed. Registration is required.
A link to the tool can be found here.
Mounting methods
• Flush mounting
• Semi-flush mounting
•
• Rack mounting
• Wall mounting
• Mounting to a 19" equipment frame
Panel cut-out for flush mounting
•
•
4
8
177
160
1
7
7
1
5
3
1
6
4
230
107
2
5
°
1
3
3
1
9
0
9
8
177
160
1
8
6
103

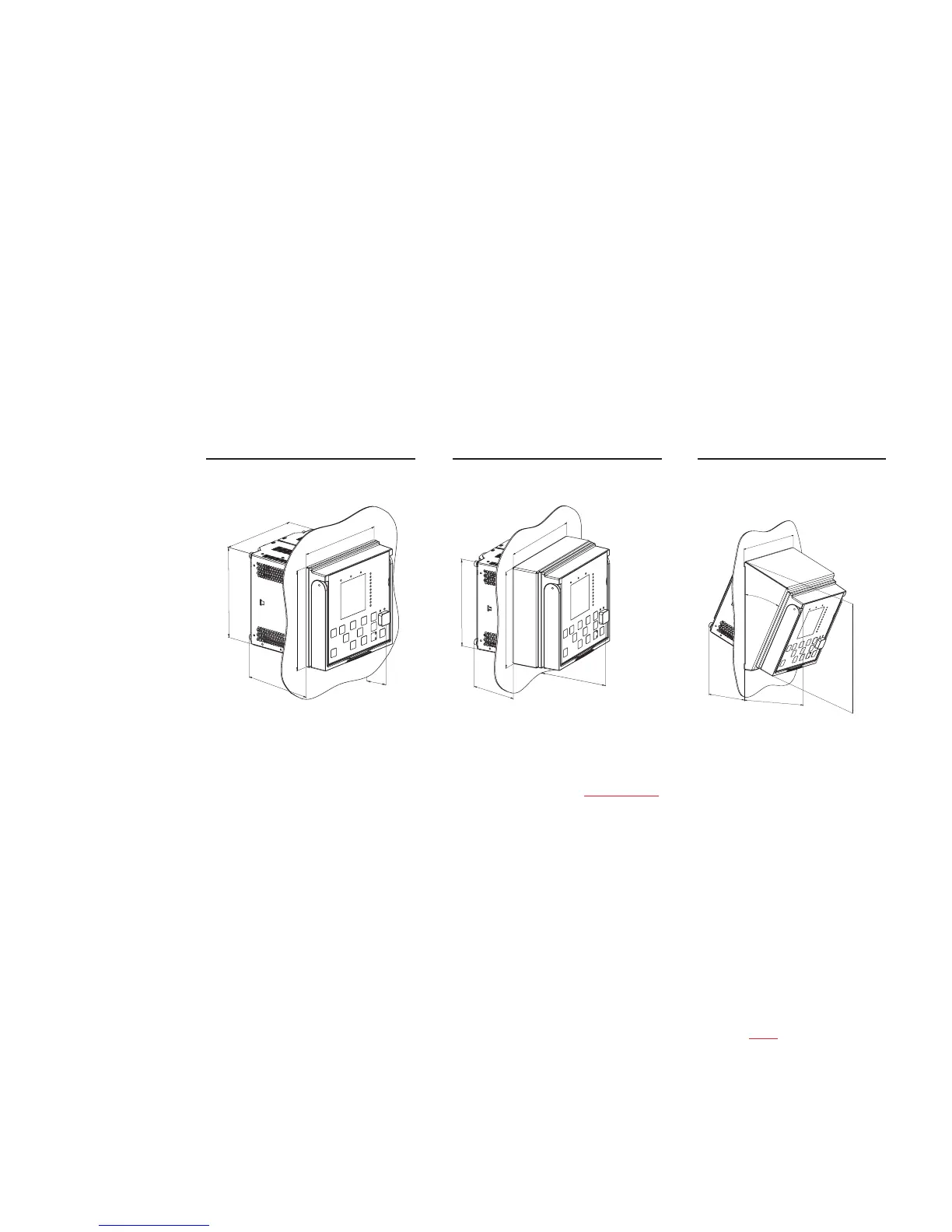

Figure 19. Flush mounting Figure 20. Semi-flush mounting Figure 21. Semi-flush mount-
ing in a 25º tilt
66 REF615 ANSI 5.0 FP1 FEEDER PROTECTION AND CONTROL
—
Figure 26. Flush mounting
—
Figure 27. Semi-flush
mounting
—
Figure 26. Semi-flush
