Technical data
83
Technical data
RETA-01
Enclosure:
Mounting: Into the option slot on the control board of the drive.
Degree of protection: IP20
Ambient conditions: The applicable ambient conditions specified
for the drive in its Hardware Manual are in effect.
Settings:
• Parameters (set through the drive)
• 8-way DIP switch for intranet IP address selection
Connectors:
• 34-pin parallel bus connector
• RJ-45 connector

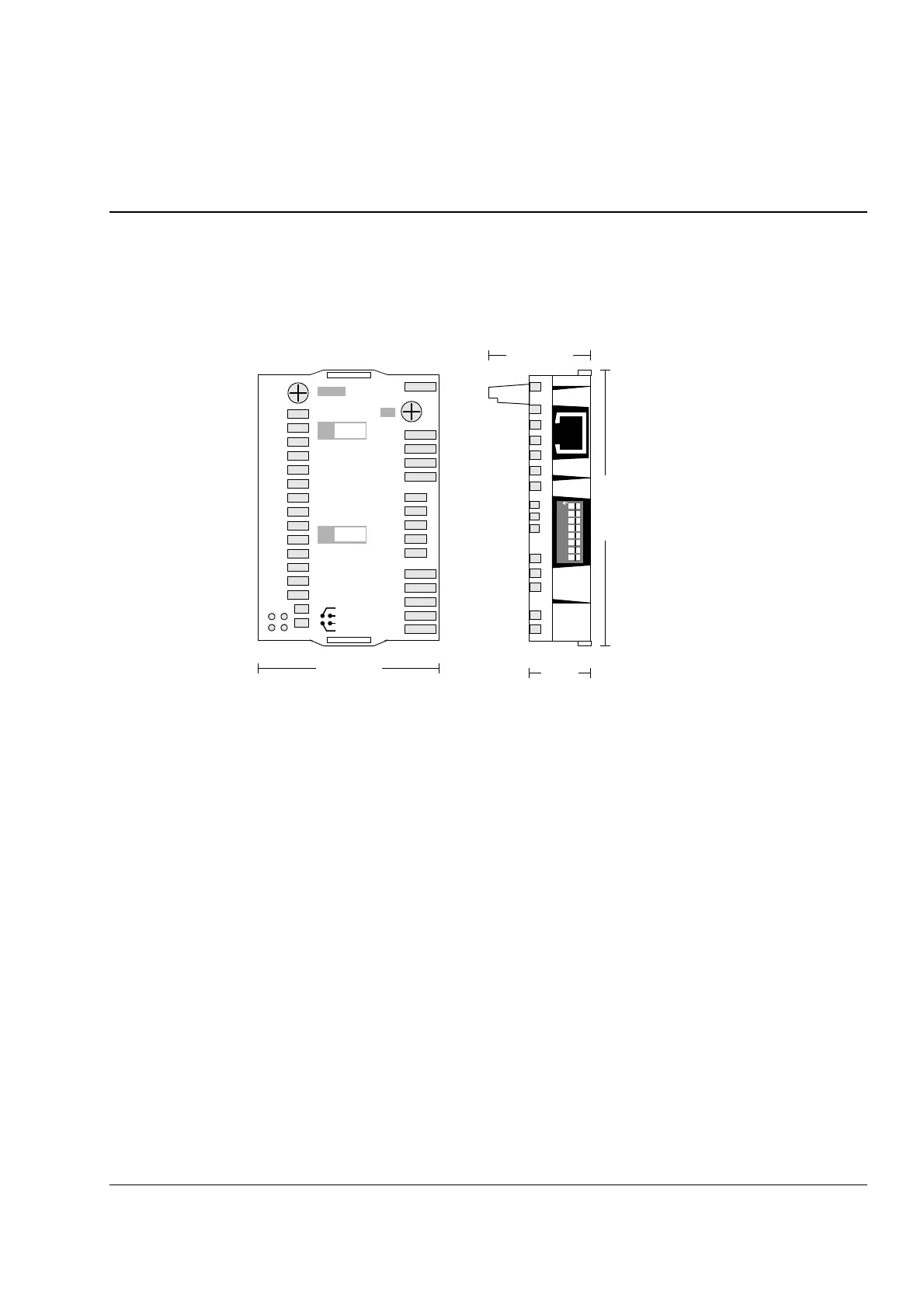

95 mm
34 mm
20
mm
62 mm
RETA-01
PROFIBUS ADAPTER
CHASSIS
X1
NETWORK
S1
IP
ADDRESS
NOT USED
LINK / ACTIVITY
MODULE STATUS
NETWORK STATUS
GND
12345678
ON
