ABB S26 Series User Manual

Ø 96 (3.77)
16 (0.62)
23 (0.90)
C
Gasket
Ø A
Ø B
Ø 96 (3.77)
44 (1.73)
Ø 52 (2.04)
126.5 (4.98)
Ø 79 (3.11)
5.12 Saddle and Socket diaphragm seal (S26VN)
The saddle and socket seal are the best solution when the diaphragm needs to be as closest as possible to the process media.
These are typically installed by welding to the process pipes with fluid at high viscosity. Saddle and socket process connection
fittings are available as option selection, available only in AISI 316 L ss.
Ø 96 (3.77)
Gasket
23 (0.90)
R
74 (2.91)
Ø C
Ø 79 (3.11)
Ø 96 (3.77)
126.5 (4.98)
Ø A
B
Fitting connection
Size
Dimensions mm (in) for S26VN- saddle type
A (dia) B C (dia) R
Saddle 2 in. 55 (2.17) 48 (1.89) 40 (1.57) 30
Saddle 2 1/2 in. 76 (3.0) 45 (1.77) 52 (2.05) 45
Saddle 3 in. 76 (3.0) 45 (1.77) 50 (1.97) 45
Saddle 4 in. 76 (3.0) 41 (1.61) 50 (1.97) 57
Saddle 5 in. 76 (3.0) 40 (1.57) 50 (1.97) 70
Saddle 6 in. 76 (3.0) 36 (1.42) 50 (1.97) 85
Fitting connection
Size
Dimensions mm (in) for S26VN- socket type
A (dia) B C
Socket 1/2 in. 21.8 (0.86) 15.9 (0.63) 86 (3.39)
Socket 3/4 in. 27 (1.06) 21.2 (0.83) 96 (3.78)
Socket 1 in. 33.6 (1.32) 26.8 (1.06) 101 (3.98)
Socket 1 1/2 in. 48.5 (1.91) 41 (1.61) 121 (4.76)
Socket 2 in. 60.5 (2.38) 52.5 (2.07) 121 (4.76)

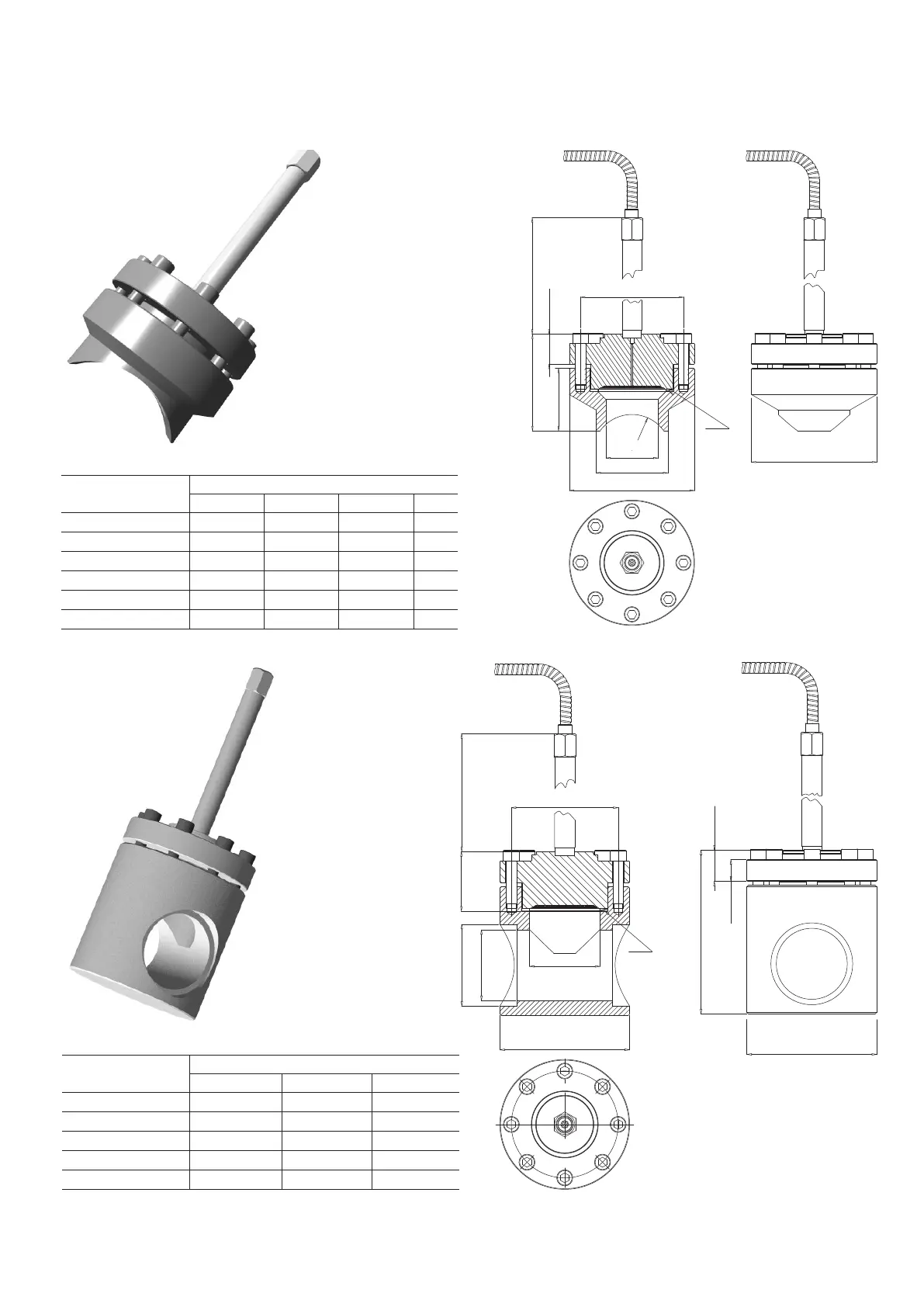

Figure 39: Saddle type seal
Figure 40: Socket type seal
2600T Series Pressure transmitters | OI/S266-EN Rev. B 33
