ABB Smile 41 AS-i Series User Manual

2TLC172255M0201, rev. D
10
www.abb.com/jokabsafety
AS-i LED and Fault LED in combination / LED pairs:
AS-i (Green)
Fault (Red)
OFF
OFF
AS-i power missing
ON
OFF
Normal operation
OFF
ON
No data exchange with master
FLASH
ON
No data exchange because address = 0

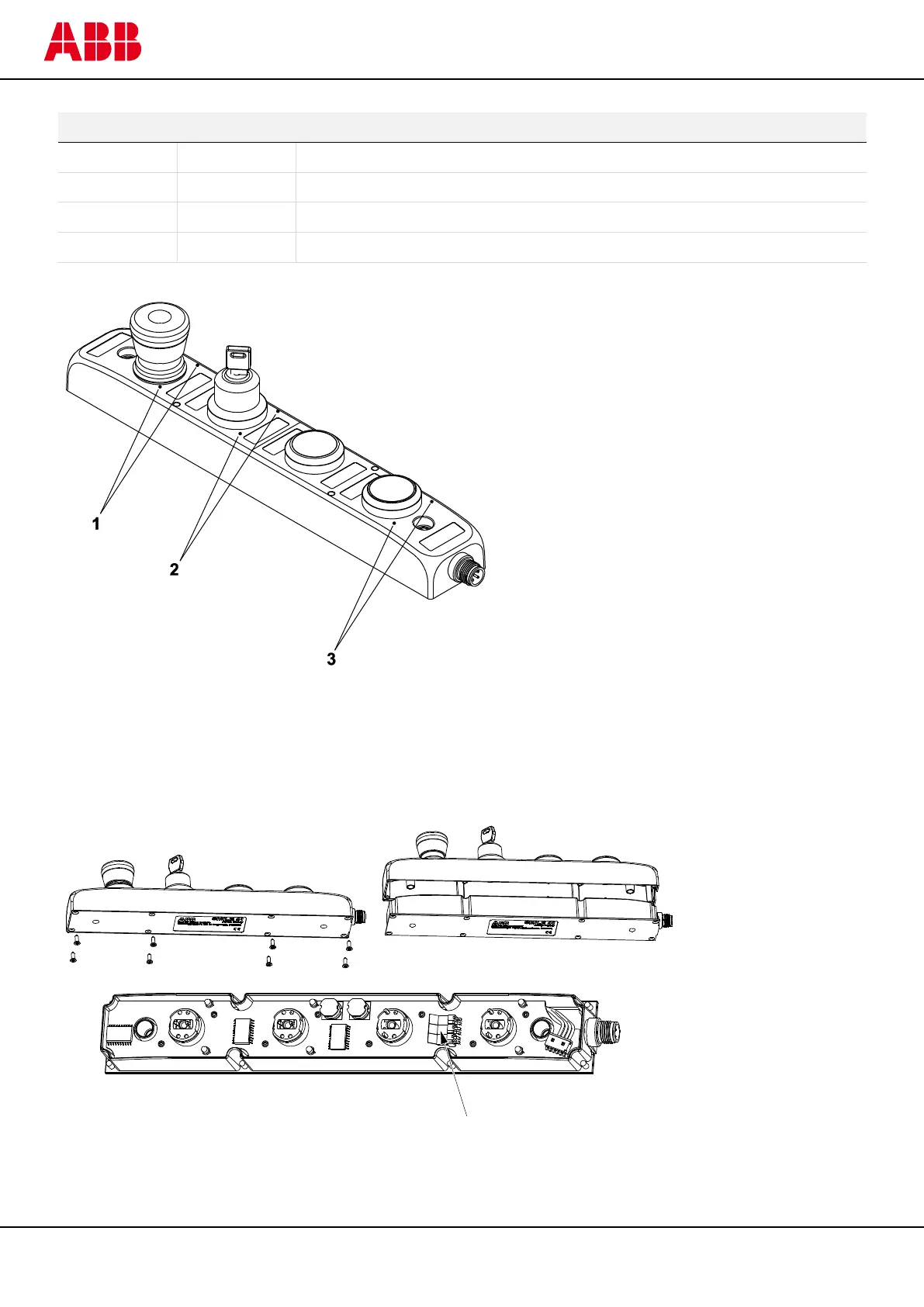

Position of AS-i LEDs:
1. Safe node 1
2. Safe node 2
3. Non-safe node
Re-addressing
If two nodes in the same Smile 41 have been given the same address they can be re-addressed.
The push-button box is opened as shown below. A node is shut off when the jumper is removed. The arrow shows
the jumpers. Only one node may be active during re-addressing (only one jumper connected). When done, put
back all jumpers and assemble the box again. Test and verify the functions.
