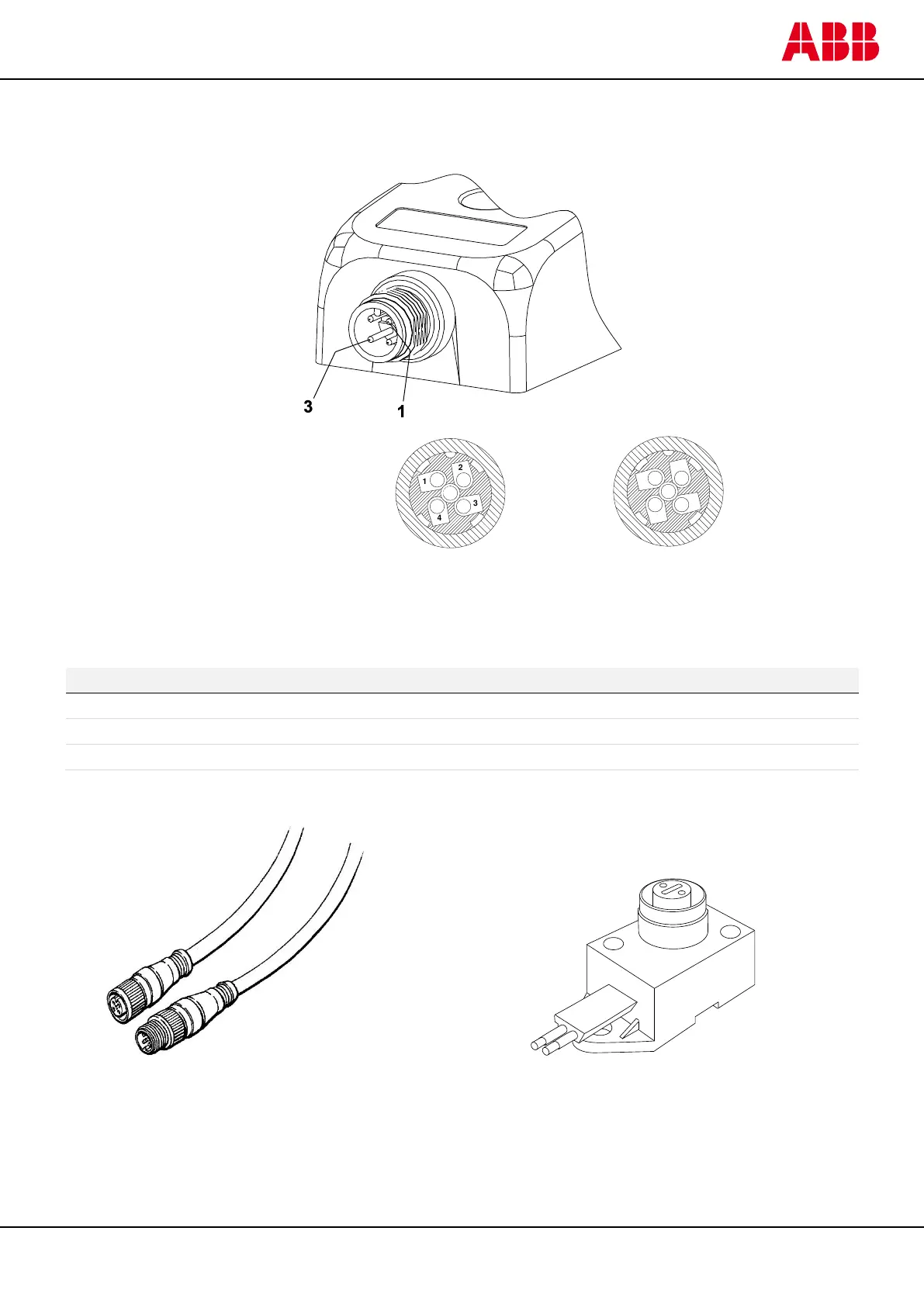

3 Connections
Electrical connections
Accessories for connection to the AS-i bus
Type
Article number
Description
AS-i T-connector with M12
2TLA020073R0000
Flat cable connector to M12
M12-C112
2TLA020056R2000
1 m cable, 5-pole, 0.34 mm
2
, M12 female + M12 male connectors
M12-C312
2TLA020056R2100
3 m cable, 5-pole, 0.34 mm
2
, M12 female + M12 male connectors
1
2
5
3
4
2
1
5
4
3
4-pole male
connector
4-pole M12 connector:
1 ) AS-i +
2 ) Not used
3 ) AS-i –
4 ) Not used
M12 4-pole male connector
seen from cable side.
5 x 0.34 mm
2
cable, screen with straight female
and male M12 connectors.
Screen connected to pin 3 (0 VDC) on male
connector.
Flat cable connector to M12
M12 4-pole female connector
seen from cable side.
