2. Description of the product
2.1. Charge post overview
A. Antenna.
B. Touchscreen display.
C. RFID card reader with (optional)
payment terminal.
D. CCS and/or CHAdeMO
connectors, depenging on the
charge post configuration.
E. Ventilation grill.
2.2. Charge post configurations
The Terra HP charger supports the following DC charging protocols:
Indicator
Description
C
CCS outlet with liquid cooled cable. Up to 375 A and 175 kW with one
power cabinet, and up to 500 A and 350 kW with two power cabinets.
J
CHAdeMO outlet with conventional cable. Up to 125 A or 200 A depending
on the cable type.

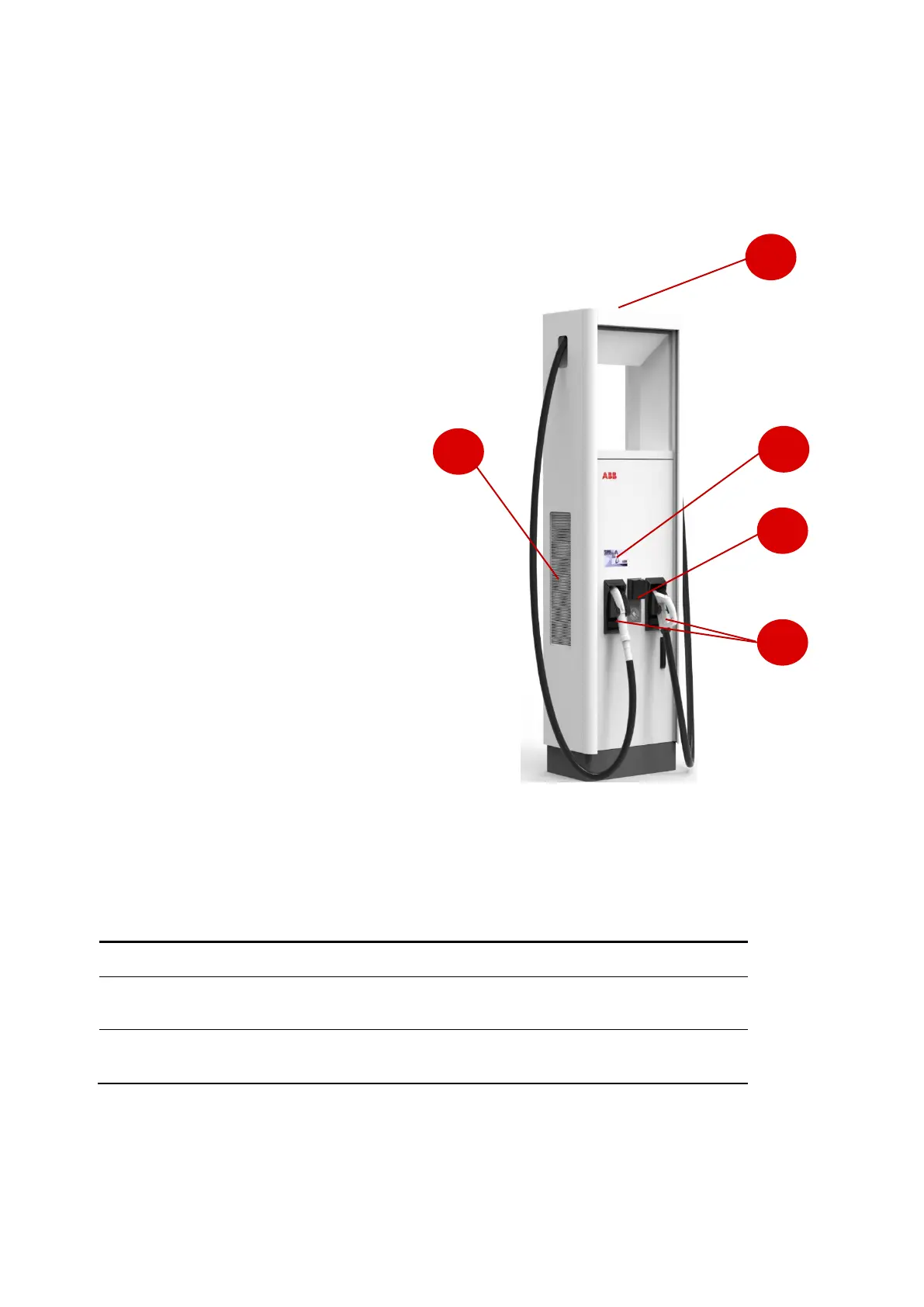

Figure 1: Terra HP charge post overview
A
B
C
D
E

ABB Terra HP Specifications

General

Brand	ABB
Model	Terra HP
Category	Automobile Accessories
Language	English
