ENGINEERING ETHE RNE T

1VLG5 00007 E 71

3.5.8 Traffic segregation

SMV messages causing high traffic should be filtered out so that they do not reach network

devices which do not subscribe to SMV messages. This is done in managed Ethernet switch

configuration which must be configured to perform the filtering operation. Traffic over

Ethernet network is grouped into several virtual LANs.

– VLAN ID = 1 (MMS, IEEE 1588, SNMP, …). It exists as default and its usage

throughout LAN yields the same behaviour as if there were no

VLANs (VLAN ID = 0)

– VLAN ID = 1 000 (GOOSE messages)

– VLAN ID = 3 000 – 3 511 (SMV stream). It is grouped based on sender and associated

receivers.

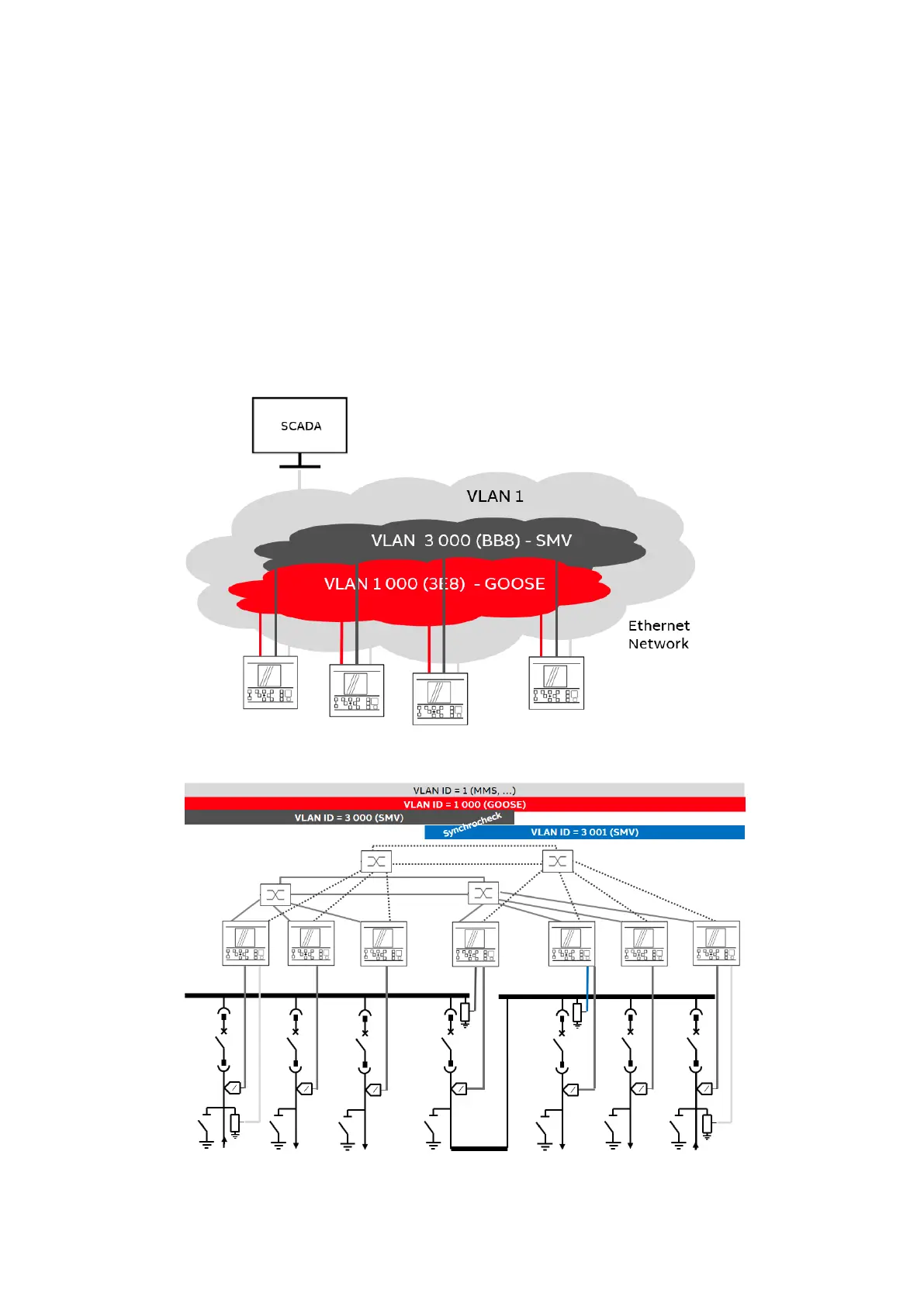

Figure 92: Example of traffic segregation via building virtual LANs

Figure 93: Virtual LANs allocation in PRP-RSTP networks
