9

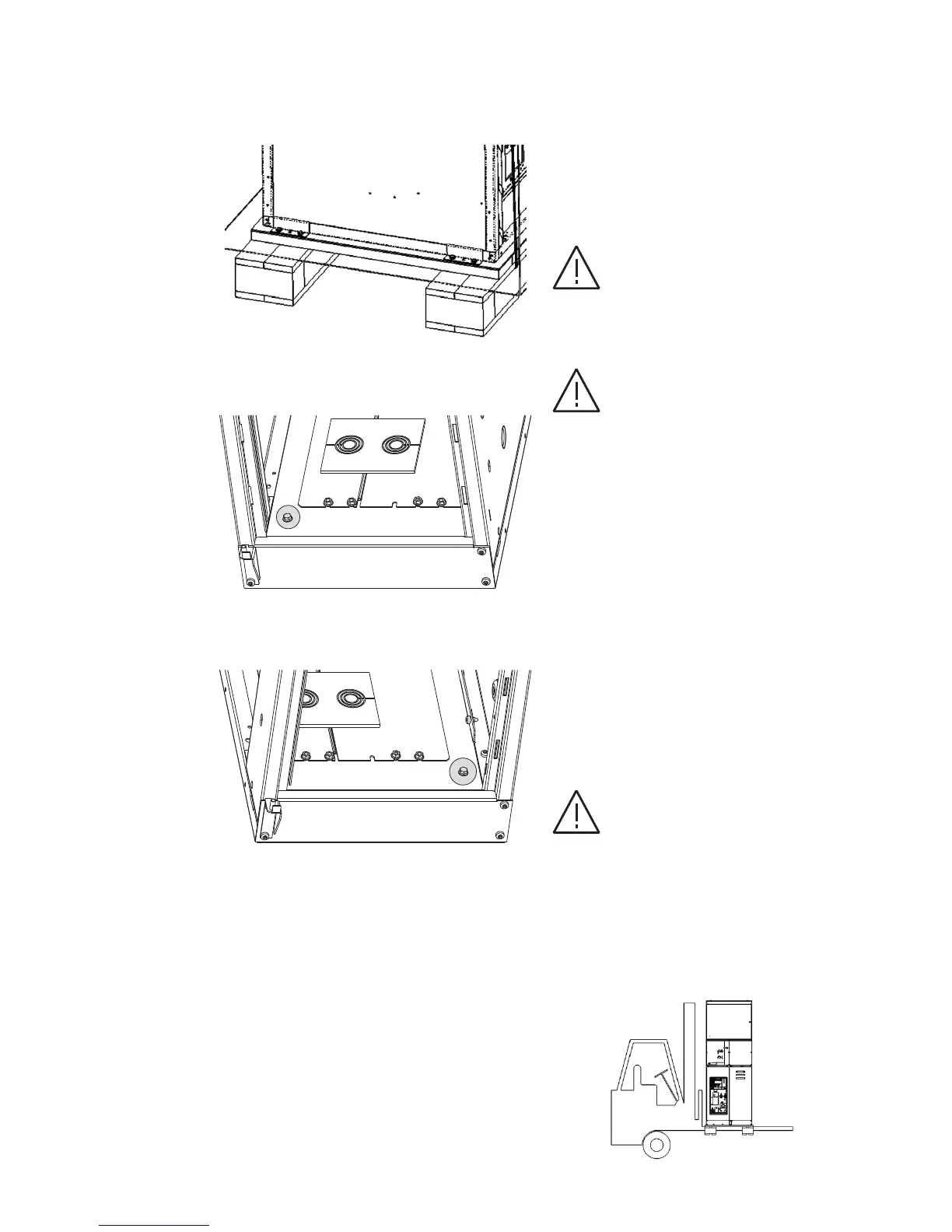

Figure 13. Bolt inside the unit (left side)
Figure 14. Bolt inside the unit (right side)
Figure 15.
Figure 12. Fixing plates outside the 750 mm unit
2.3 Handling the units as far as
the installation site
2.3.1 General warnings and cautions
DANGER
Only carry out loading operations when it has been
ensured that all precautionary measures to protect
personnel and materials have been taken
CAUTION
The switchgear units should usually be handled in
an upright position. Take the high centre of gravity
into account. Tilting or overturning must be
avoided. If necessary, single units can be carried
horizontally, for example, because of a low
doorway. In such cases, the unit must be supported
over a wide area
2.3.2 Instructions
Transport units
Handling instructions
CAUTION
Lifting instructions
•
•
