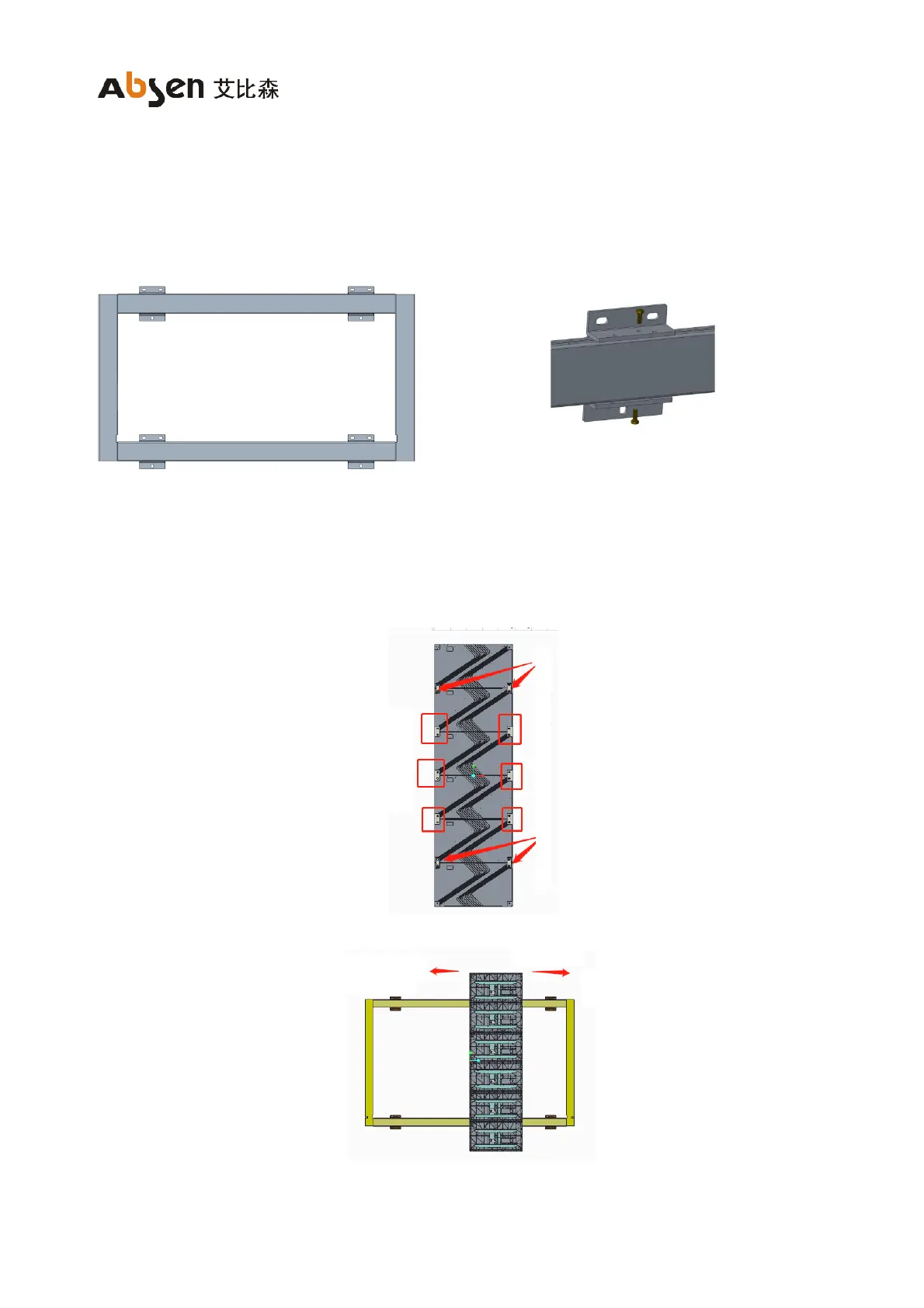

2.2.3 Fixed the frame
After the frame fixed connecting plate is installed, install the frame, fix it with 2 M6*16 screws at each position,
and clamp it up and down.
2.2.4 Install cabinet
(1) Hang the middle row of cabinet first, and hook connecting plate on the back of the cabinet into the notch of the cross
beam of the frame. Move the cabinet to the center and align the marking line on the beam;
(2) The top two rows of cabinets are connected to the beams without hooks, and are only connected by the left and right
bolts between the cabinets.
Flat connecting plate
Hook connecting plate
Hook connecting plate
Three more rows of cabinets
Two more rows of cabinets
