Absenicon3.0 C165 User Manual
17

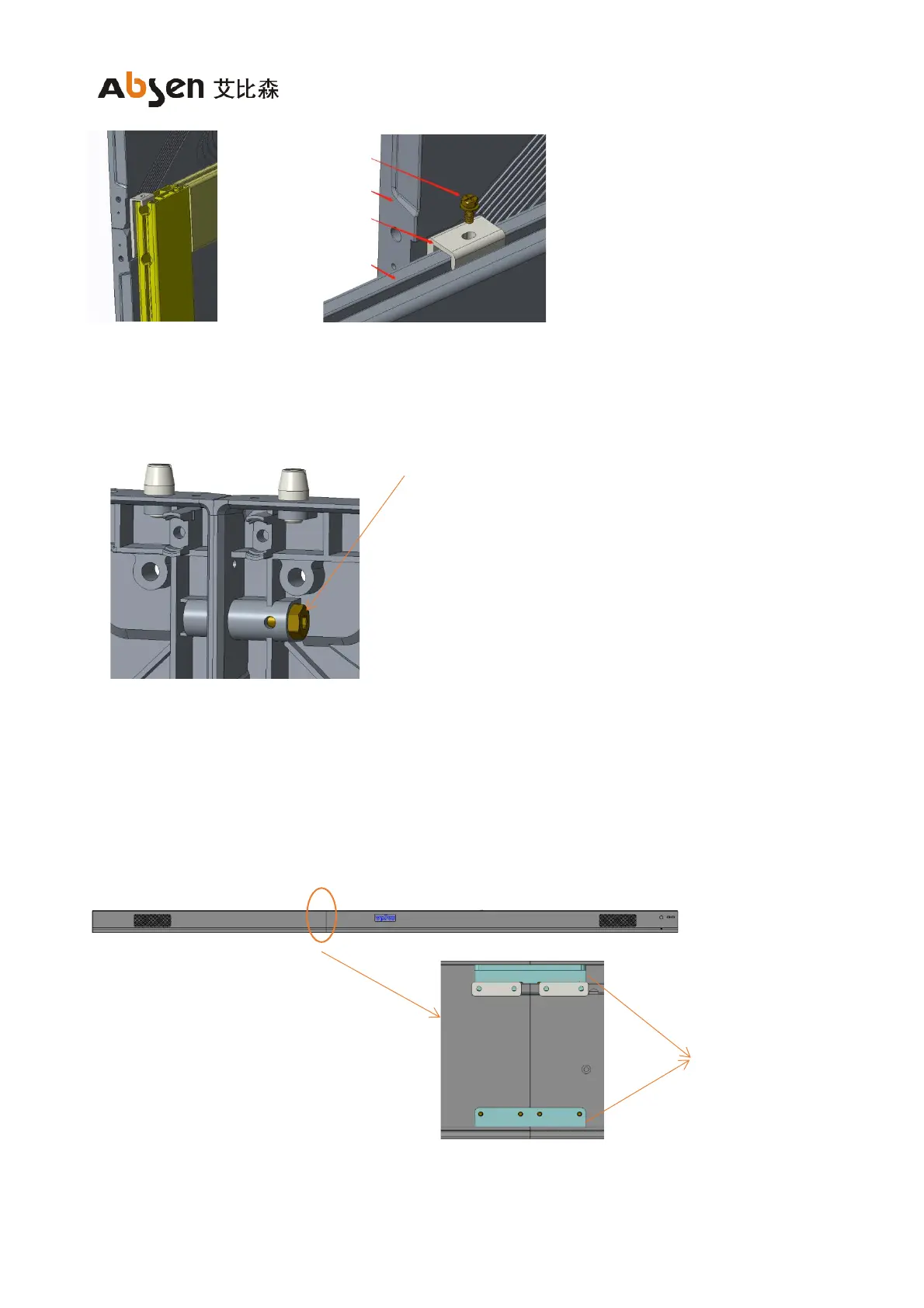

Note: Show details. Lock M4*4 security screw after hanging
(3) Hang the cabinets on the left and right sides in turn, and lock the left and right connecting bolts on the cabinet. The
four-corner hook connecting plate of the screen are flat connecting plate.
Note: The internal structure is subject to the actual product.
2.2.5 Install edging
(1) Install the edging under the screen, and tighten the fixing screws of the left and right connecting plates of
the bottom edging (16 M3 flat head screws);
