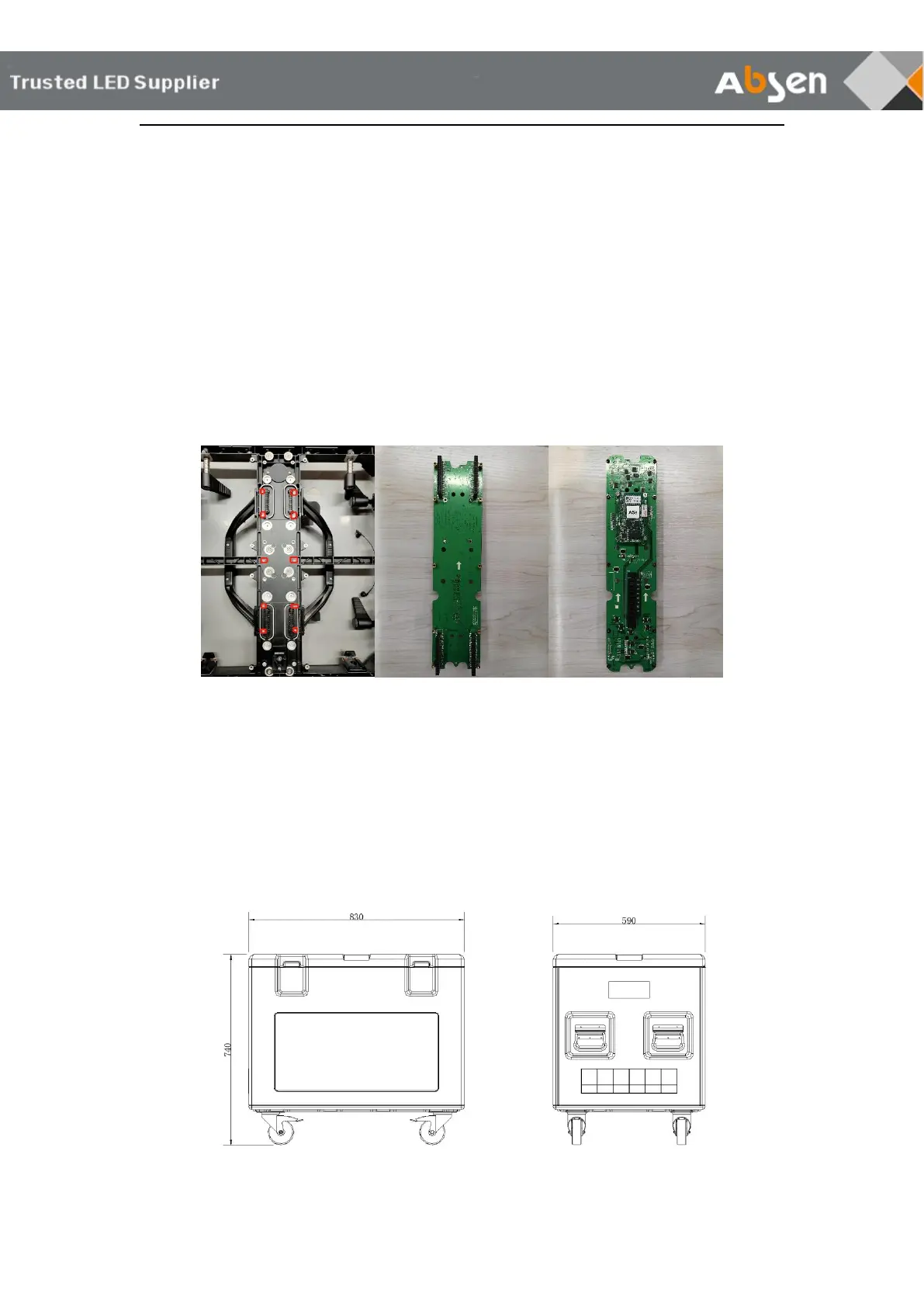

Maintenance for receiving card (Front)- Indoor products (500*500 cabinets) can be

customized

Step 1: remove the power box and module from the cabinet;

Step 2: remove the screws from the front of the cabinet (red circle position as shown

below);

Step 3: hand through the box, take out the HUB board and the receiving card from the

back side and replace them if needed. When replace the new receiving card, please note

that the receiving card direction should correspond to the arrow direction on the HUB

board (please note the yellow border mark in the figure below);

Step 4: install the HUB board back (note the direction of the HUB board and the

corresponding screw hole);

Step 5: install the screw;

Step 6: install the power box and module.

5.2.4 Flight Case

Place the LED panels horizontally to prevent SMD damage.

Flight cases are optimised to fit in vehicles for low cost transport. Fully stackable to save

space.

PL Lite series flight case has 6in1 and 4in1. 6 in 1 is suitable for the 500×500 cabinet and

4 in 1 is designed for the 500×1000 cabinet.

6 in 1 design.
