Accuphase E-212 User Manual

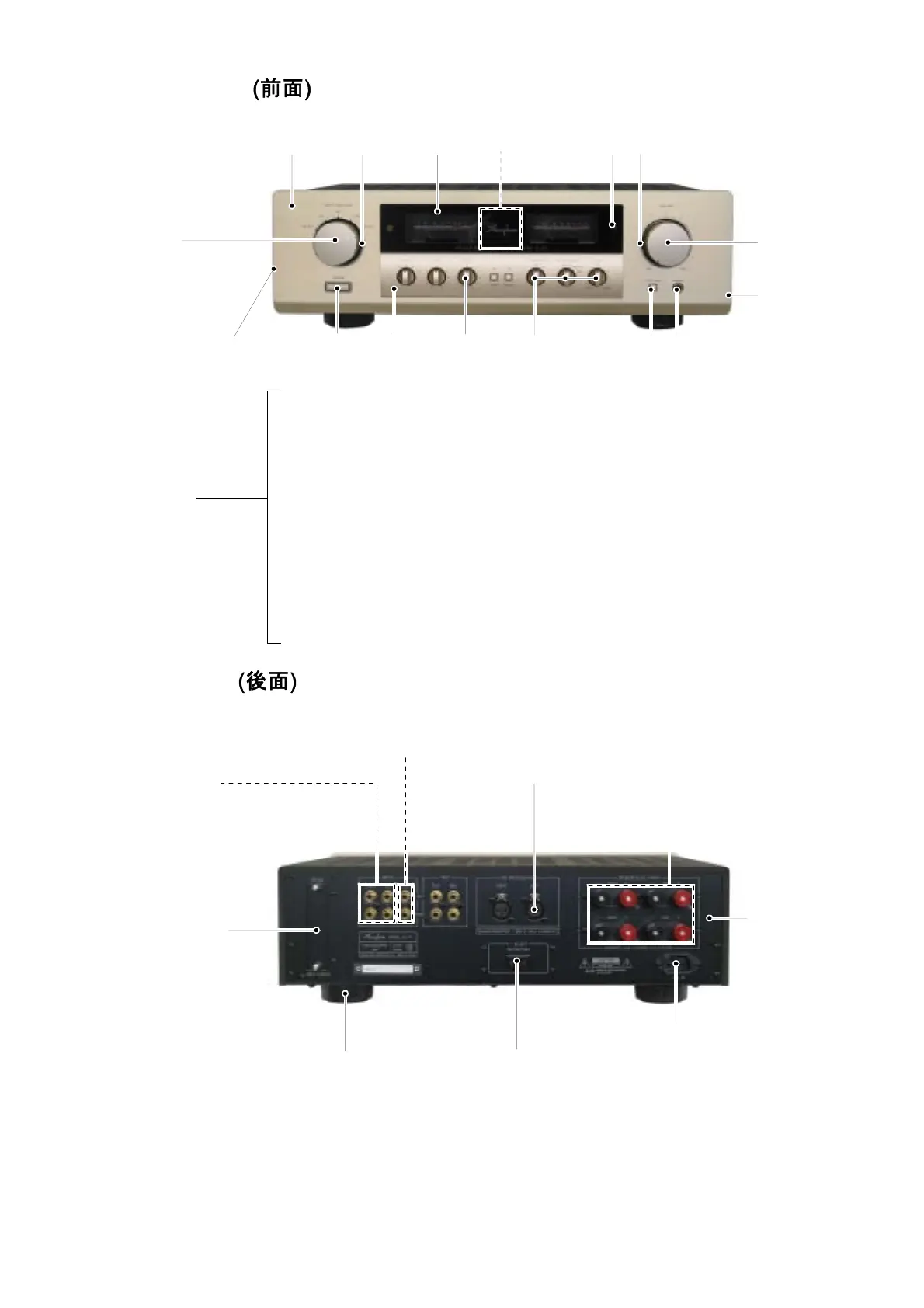

FRONT VIEW
REAR VIEW
Speaker Terminal
SP端子
(313-1019-00)
Pin Jack
ﾋﾟﾝｼﾞｬｯｸ /5pcs.
(302-0411-00)
Pin Jack Cover
ﾋﾟﾝｼﾞｬｯｸｶﾊﾞｰ/10pcs.
(254-2015-04)
Foot
脚
(238-0023-00)
Decoration Plate
ｽﾛｯﾄﾊﾟﾈﾙ
(159-0059-04)
Fixing Screw
飾りﾈｼﾞ/2pcs.
(630-0302-04)
XLR (Cannon) Receptacle
ｵｰﾃﾞｨｵｺﾈｸﾀｼﾞｬｯｸ/2pcs.
(302-8011-00)
Connector Cover / Female
ｺﾈｸﾀｶﾊﾞｰ/ 2pcs.
(254-2012-00)
AC Outlet
ACｿｹｯﾄ /J type only
(305-1205-00)
AC Inlet
AC ｺﾈｸﾀﾌﾟﾗｸﾞ
(301-3304-00)
＊Power Supply Cord
電源ｺｰﾄﾞ
J type:680-1204-00
U tyep:680-2401-00
E type:680-3402-00
Rear Panel
ﾊﾞｯｸﾊﾟﾈﾙ
(135-0151-02)
Front Panel Assembly
ﾌﾛﾝﾄﾊﾟﾈﾙ Ass'y
(130-0162-01)
1 Front Panel=131-0162-01
ﾌﾛﾝﾄﾊﾟﾈﾙ
2 Sub-panel =134-0131-
0
3
ｻﾌﾞﾊﾟﾈﾙ
3 Panel End Cap=132-0109-04
ﾊﾟﾈﾙｴﾝﾄﾞｷｬｯﾌﾟ
4 Front Arcylic=172-0117-13
ﾌﾛﾝﾄｱｸﾘﾙ
5 Decoration Screw=630-0304-14
飾りﾈｼﾞ
Washer =637-9045-04
ﾜｯｼｬ
6 Push-button=388-5044-03
ﾌﾟｯｼｭﾎﾞﾀﾝ
/POWER
Coil Spring=285-1016-04
Frame=113-0100-04
1pce.
1pce.
2pcs.
1pce.
2pcs.
2pcs.
1pce.
1pce.
1pce.
7 Push-button=389-5077-03
ﾌﾟｯｼｭﾎﾞﾀﾝ /TONE,MONO,ATT
Coil Spring=285-1023-04
Frame=113-0111-04
8 Receiver Assembly=721-0064-00
受光器Ass'y
Frame=170-0058-12
ｴｽｶｯｼｮﾝ
9 Knob Base=170-0025-04/VOLUME
10 Knob Base=170-0039-03/INPUT
台座
3pcs.
3pcs.
3pcs.
1pce.
1pce.
1pce.
1pce.
1
2
10 4 5 9
376
3
8
Knob for VOLUME
ﾂﾏﾐ
(381-4406-04)
Head Phone Jack
ﾍｯﾄﾞﾌｫｰﾝｼﾞｬｯｸ
(302-1204-00)
Knob for INPUT
ﾂﾏﾐ
(381-4405-04)
Knob for SP,TONE,BAL,
ﾂﾏﾐ / TAPE
(384-1601-04)
－２－
7
Pin Jack
ﾋﾟﾝｼﾞｬｯｸ /1pce.
(302-0209-00)

Accuphase E-212 Specifications

General

Brand	Accuphase
Model	E-212
Category	Amplifier
Language	English
