11. See “Removing the Middle Cover” on page 73.
12. See “Removing the Keyboard” on page 74.
13. See “Removing the Heatsink Module” on page 78.
14. See “Removing the CPU” on page 80.
15. See “Removing the LCD Module” on page 84.
16. See “Separating the Upper Case from the Lower Case” on page 87.
17. See “Removing the Modem Board” on page 100.
18. See “Removing the Main Board” on page 101.

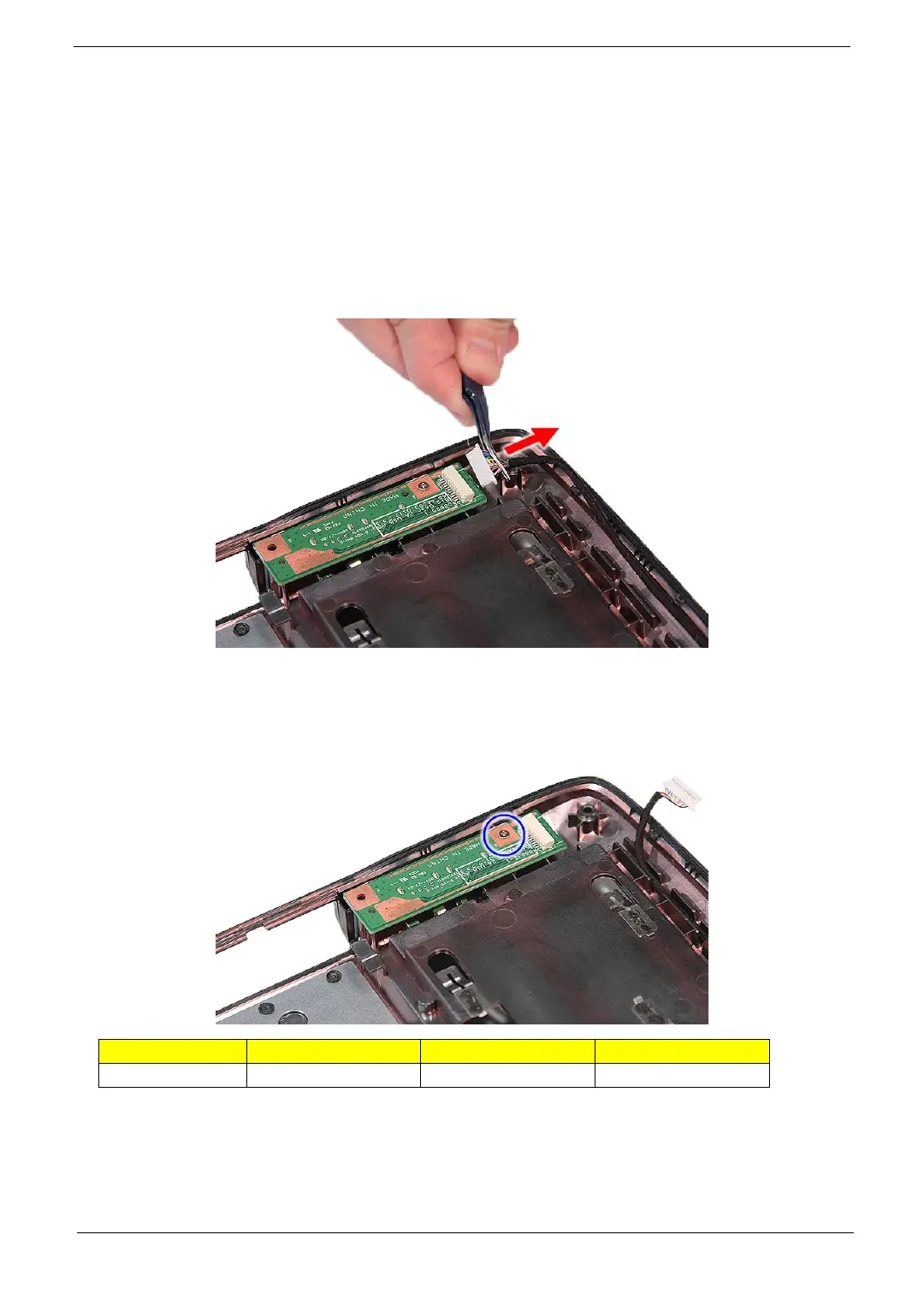

19. Disconnect the cable from the USB board module.
20. Remove the one screw (B) securing the USB board module to the lower case.
Step Size (Quantity) Color Torque
1 M2 x L4 (1) Silver 1.6 kgf-cm
To Next Page
