54 Chapter 3

Removing the Battery Pack

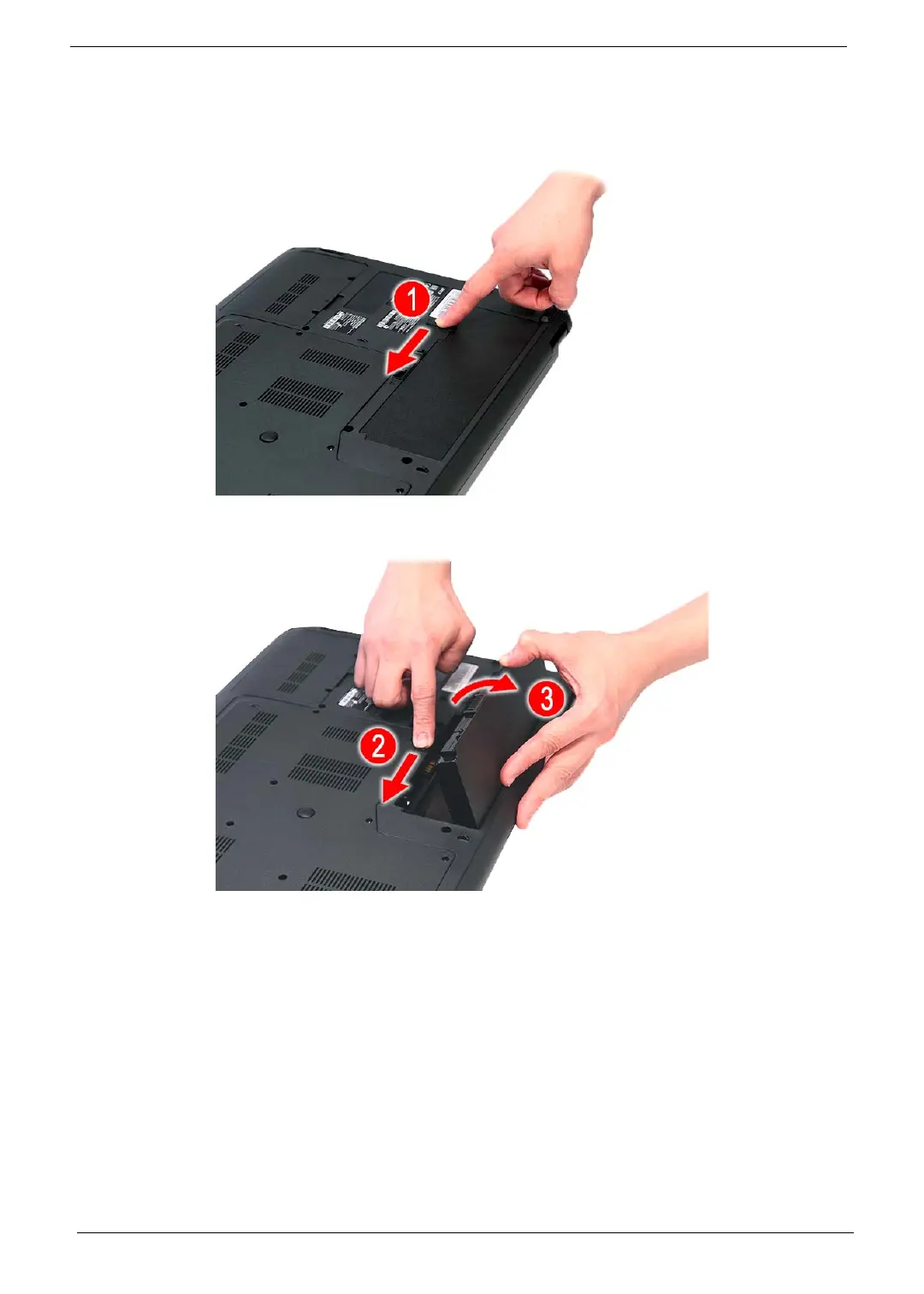

1. Turn base unit over.

2. Slide the battery lock/unlock latch to the unlock position.

3. Slide the battery release latch to the release position to pop out the battery pack, then remove the battery

pack from the main unit.
