Chapter 3 123

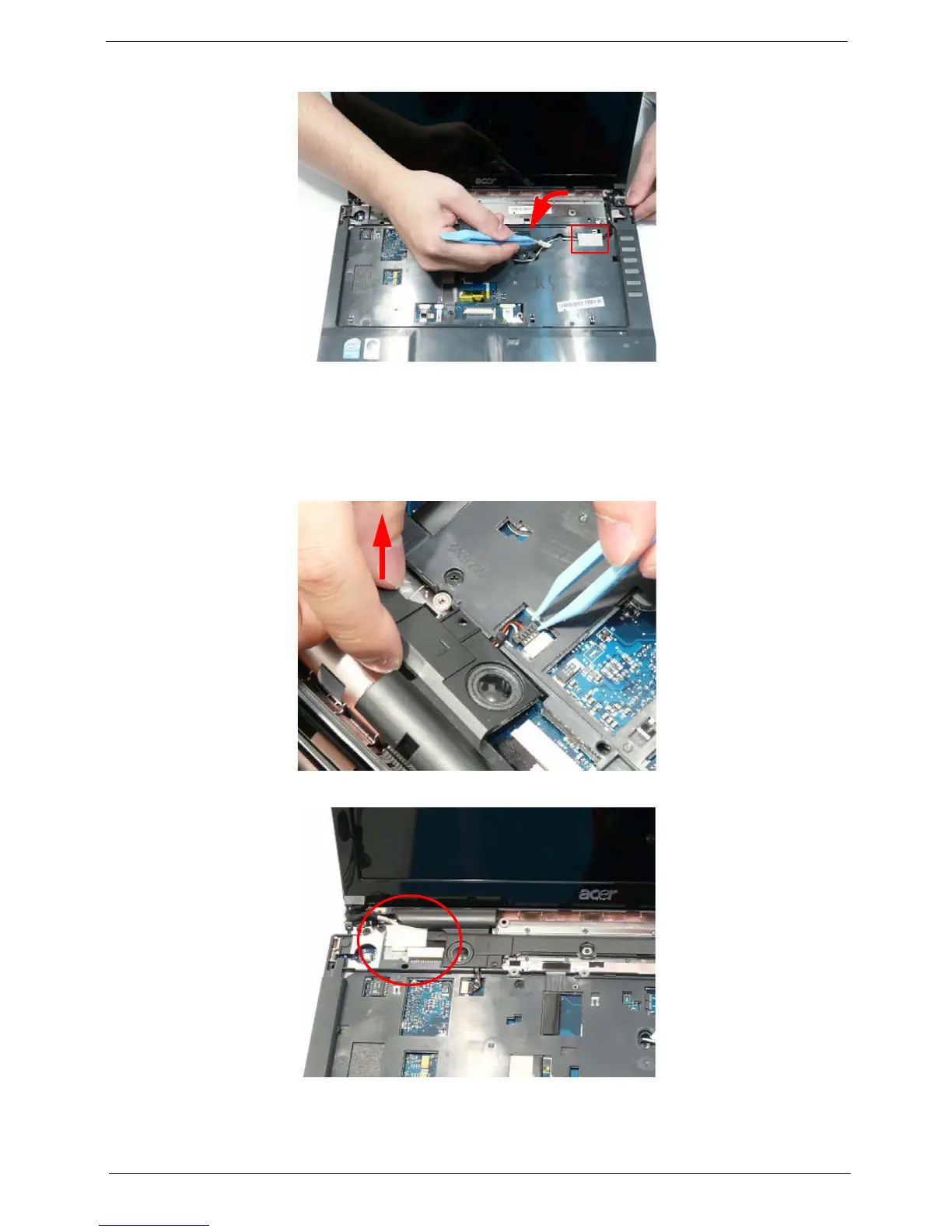

12. Replace the two pieces of adhesive tape securing the Antenna cables to the Upper Cover.
Replacing the Speaker Module
1. Align and replace the Speaker Module in the lower case.
IMPORTANT: Be sure the LVDS and microphone cables pass over the Speaker Module.
2. Reconnect the Speaker cable.
3. Replace the adhesive tape to secure the LCD cables in place.
To Next Page
