Chapter 3 133

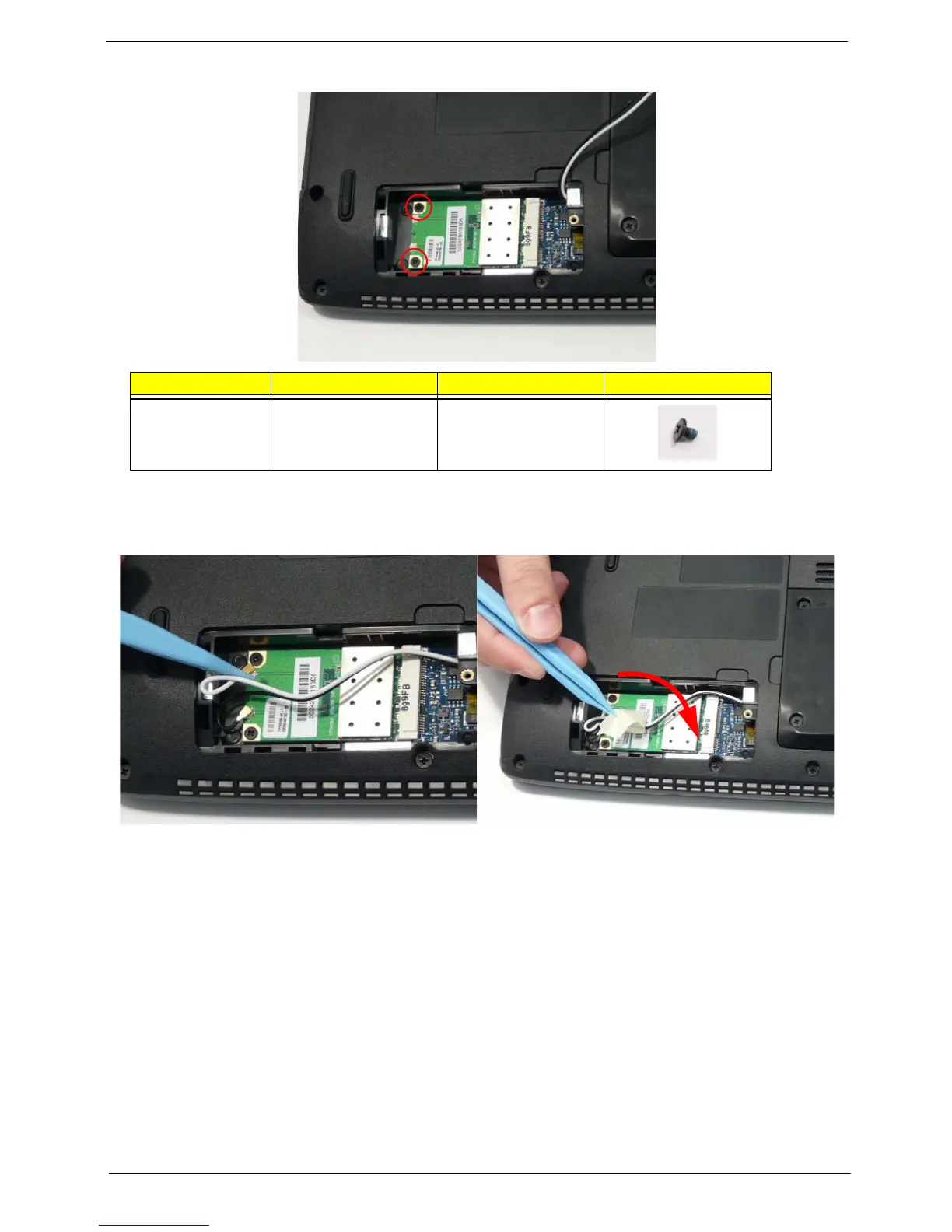

2. Replace the two screws to secure the module.
3. Connect the two antenna cables to the module.
NOTE: The White cable goes to the upper terminal and the black cable to the lower terminal.
IMPORTANT: Ensure that the cabling is replaced as shown to avoid trapping when the covers are replaced.
Step Size Quantity Screw Type
WLAN Module M2*3 2
