Chapter 3 111

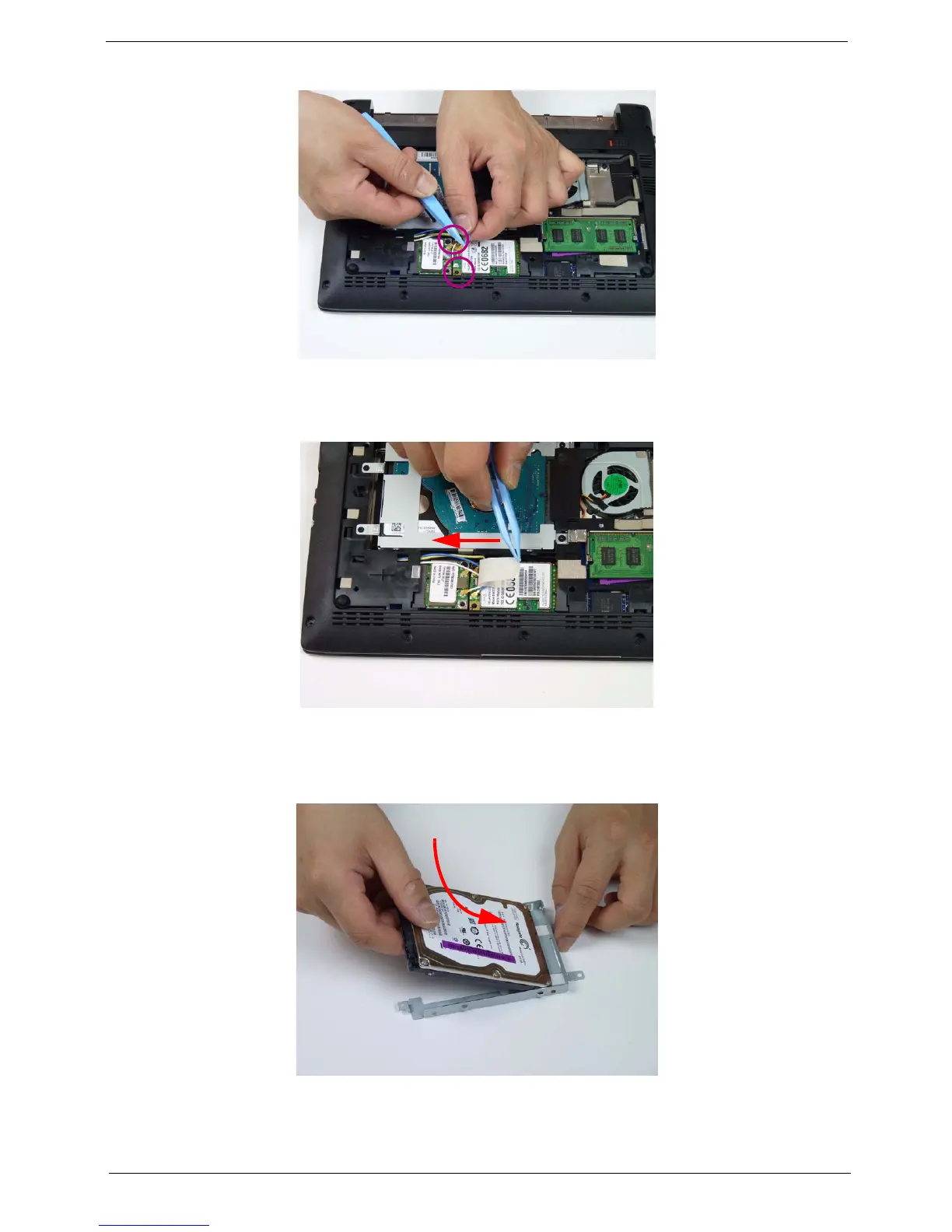

3. Reconnect the antenna cables to the 3G module.
NOTE: Cable placement is YELLOW to the MAIN terminal (closest to the HDD) and BLUE to the AUX
terminal (closest to the edge of the computer).
4. Replace the adhesive tape securing the antenna cables.
Replacing the HDD Module
1. Insert the HDD into the carrier.
2. Replace the four (4) screws (two each side) securing the hard disk to the carrier.
NOTE: Remove screws in order from 1 to 4.

Acer ASPIRE 533 Specifications

General

Resolution	1366 x 768
RAM	4 GB
Display	15.6" HD
Optical Drive	DVD Super Multi DL
Operating System	Windows Vista Home Premium
Battery	6-cell Li-ion
