Acer Aspire 5820T Series User Manual

164 Chapter 5

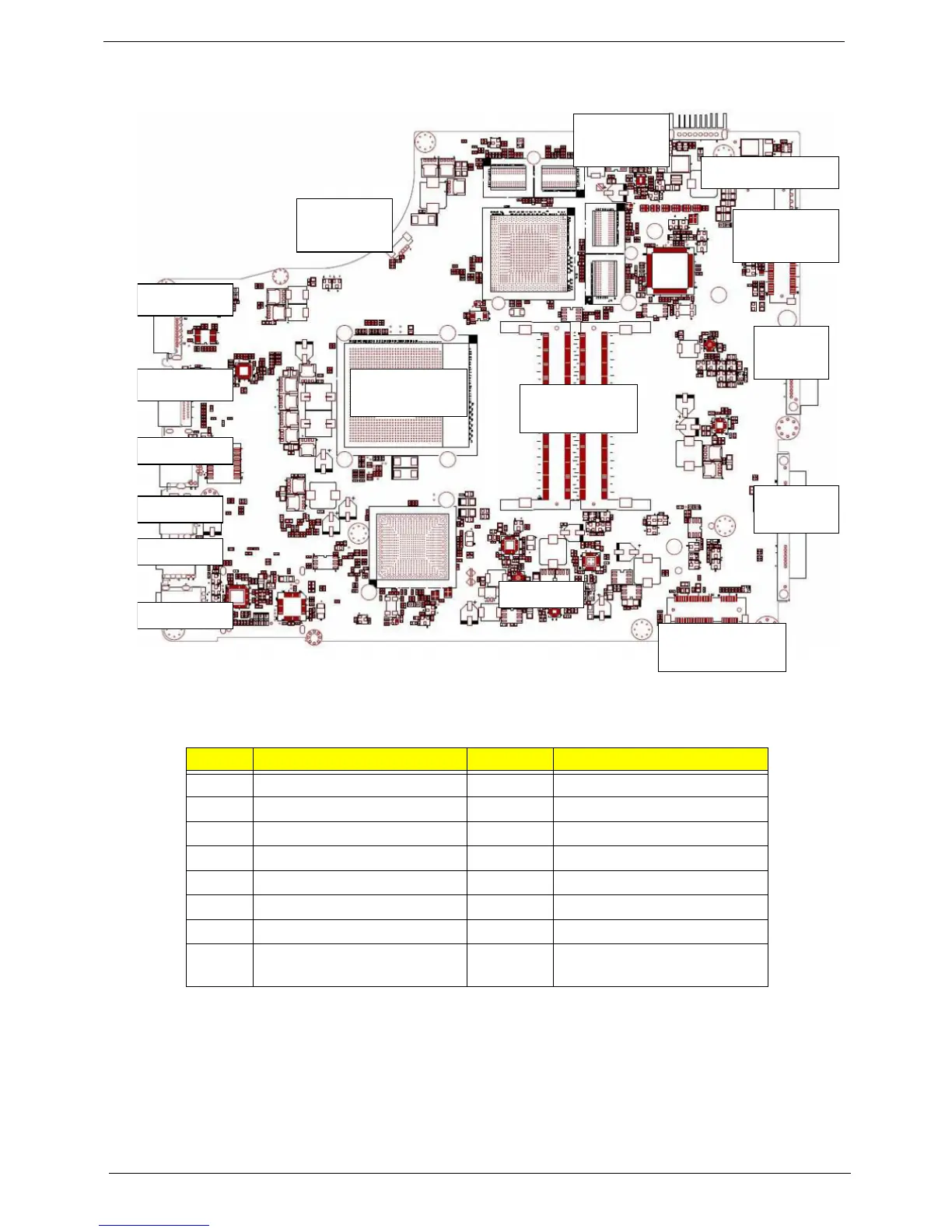

Mainboard Bottom View
Item Description Item Description
PJ1 Battery connector CN19 Microphone connector
PJ2 Power Jack CN17 USB connector
CN12 3G Mini card connector CN16 LAN connector
CN14 SATA ODD connector CN15 HDMI connector
CN18 SATA HDD connector CN13 External CRT connector
CN21 WLAN Mini card connector CN11 Fan connector
RTC RTC battery connector U33 CPU socket
CN20 SPDIF connector JD1M1/
JD1m2
DDR Socket
U33
CPU SOCKET
JDIM1/JDIM2
DDR SOCKET
CN11
FAN CONN.
PJ1
BATT. CONN.
CN13 CRT
CN15 HDMI
CN16
LAN
CN17
USB
CN19 MIC
CN20 SPDIF
RTC
CONN.
PJ2 POWER JACK
CN12
3G MINI CARD
CN14
SATA ODD
CN18
SATA HDD
CN21
WLAN MINI
CARD
