Mainboard Layout

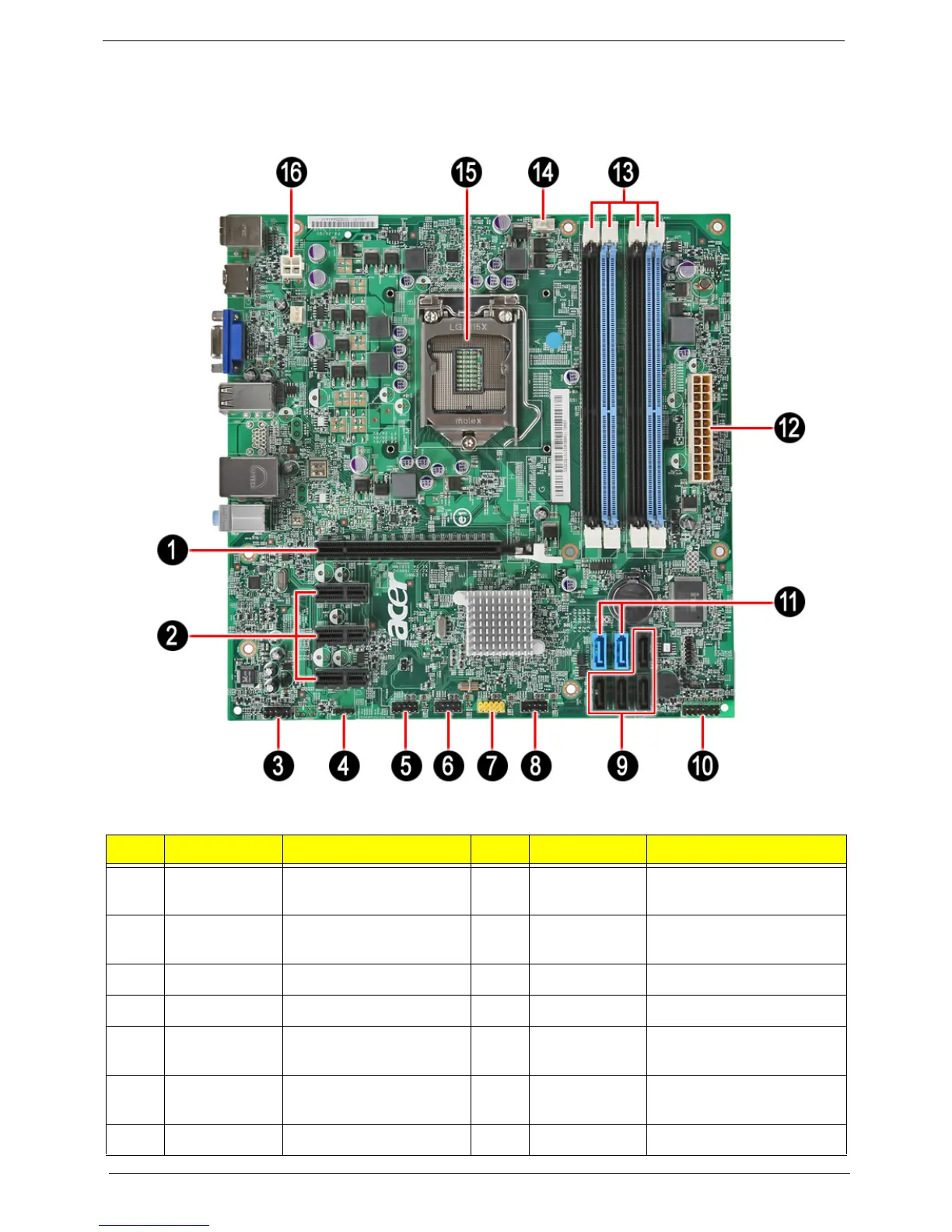

This section shows the major mainboard components.
No Label Description No Label Description
1 PCIE116X1 PCIEx 16 socket 11 SATA0~1 SATA0 and 1 cable
connectors
2 PCIE1~3 PCIEx1 sockets 12 PWR1 24-pin ATX power
connector
3 AUDIO_F Front audio header 13 DIMM1~4 Memory slots DIMM1 to 4
4 SPDIF1 SPDIF audio header 14 CPUFAN1 CPU fan connector
5~8 USBF1~4 Front panel USB
headers
15 U2 CPU Socket
9 SATA2~5 SATA2 to 5 cable
connectors
16 PWR2 4-pin +12V power
connector
10 LEDH1 LED indicator header
