46 Chapter 3

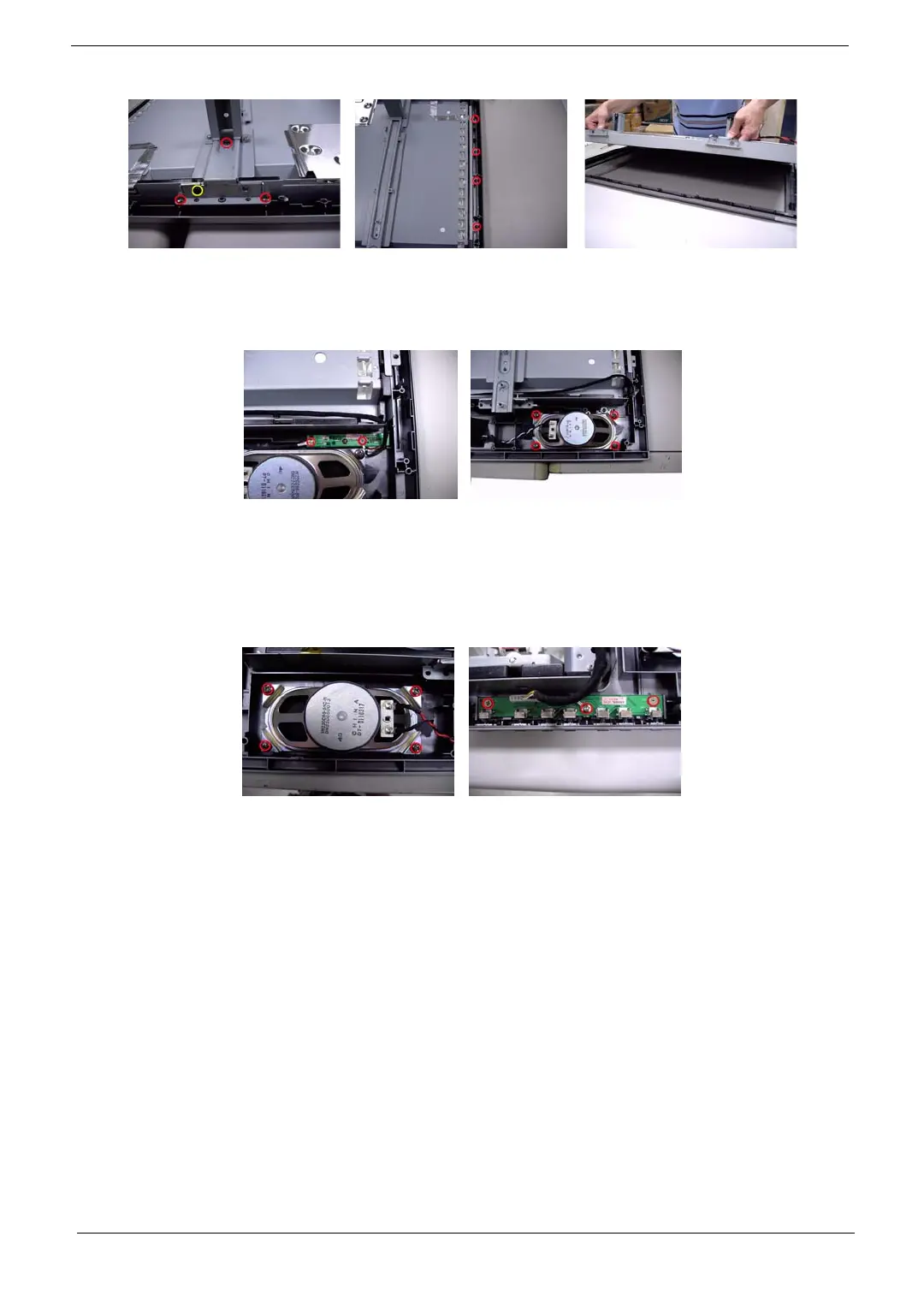

25. Remove the two screws holding the IR board then disconnect the cables and remove the IR board.
26. Remove the four screws fastening the speaker on the right side.
27. Remove the four screws fastening the speaker on the left side then take out the speaker set.
28. Remove the three screws holding the button board to the main unit then disconnect the cables and
remove the button board. Now you have completed the LCD TV disassembly.
NOTE: Before you remove the boards, please disconnect the cables on the boards.
To Next Page
