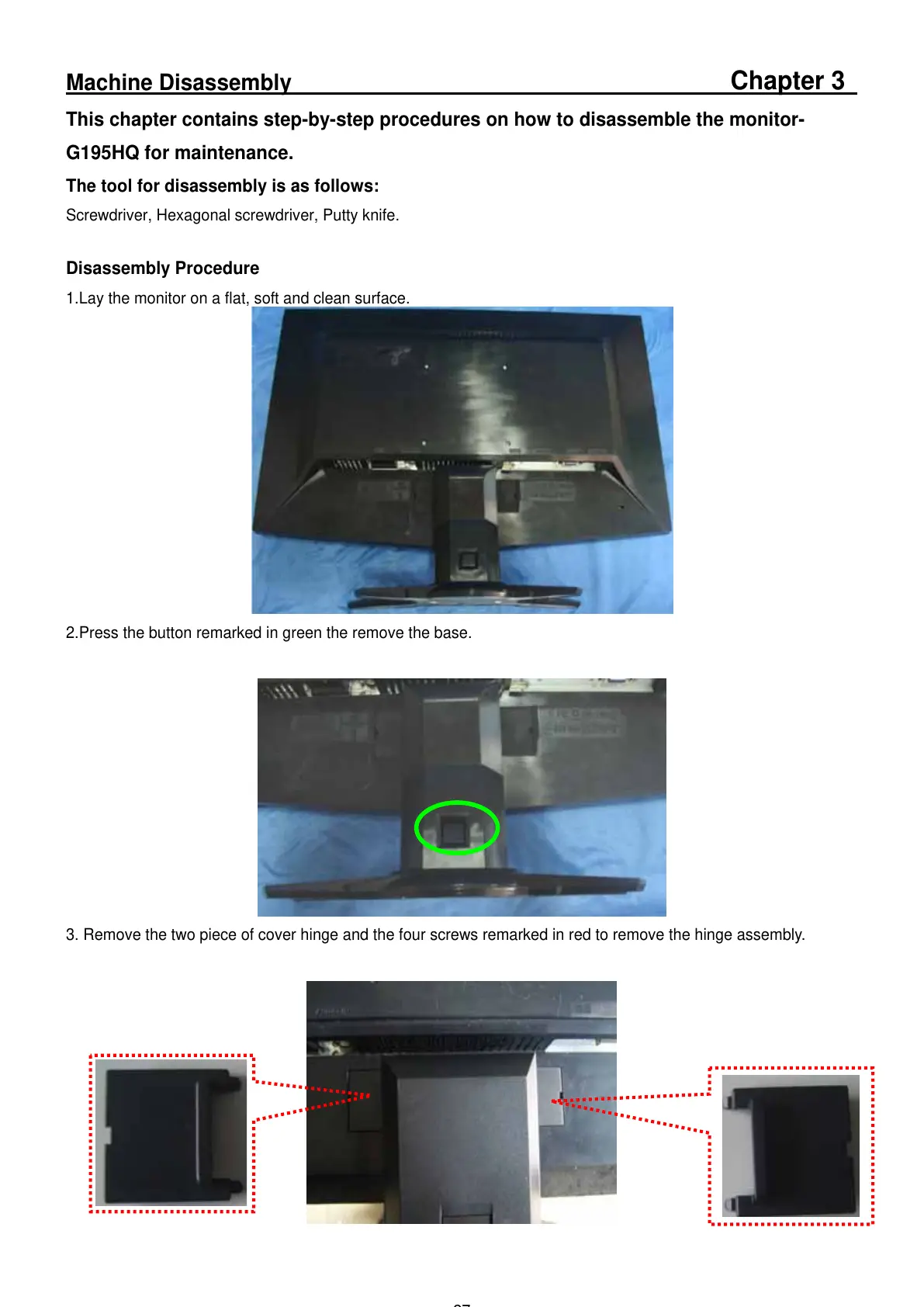

Machine Disassembly
This chapter contains step-by-step procedures on how to disassemble the monitor-
G195HQ for maintenance.
The tool for disassembly is as follows:
Screwdriver, Hexagonal screwdriver, Putty knife.
Disassembly Procedure
1.Lay the monitor on a flat, soft and clean surface.
2.Press the button remarked in green the remove the base.
3. Remove the two piece of cover hinge and the four screws remarked in red to remove the hinge assembly.
Chapter 3
