5
English

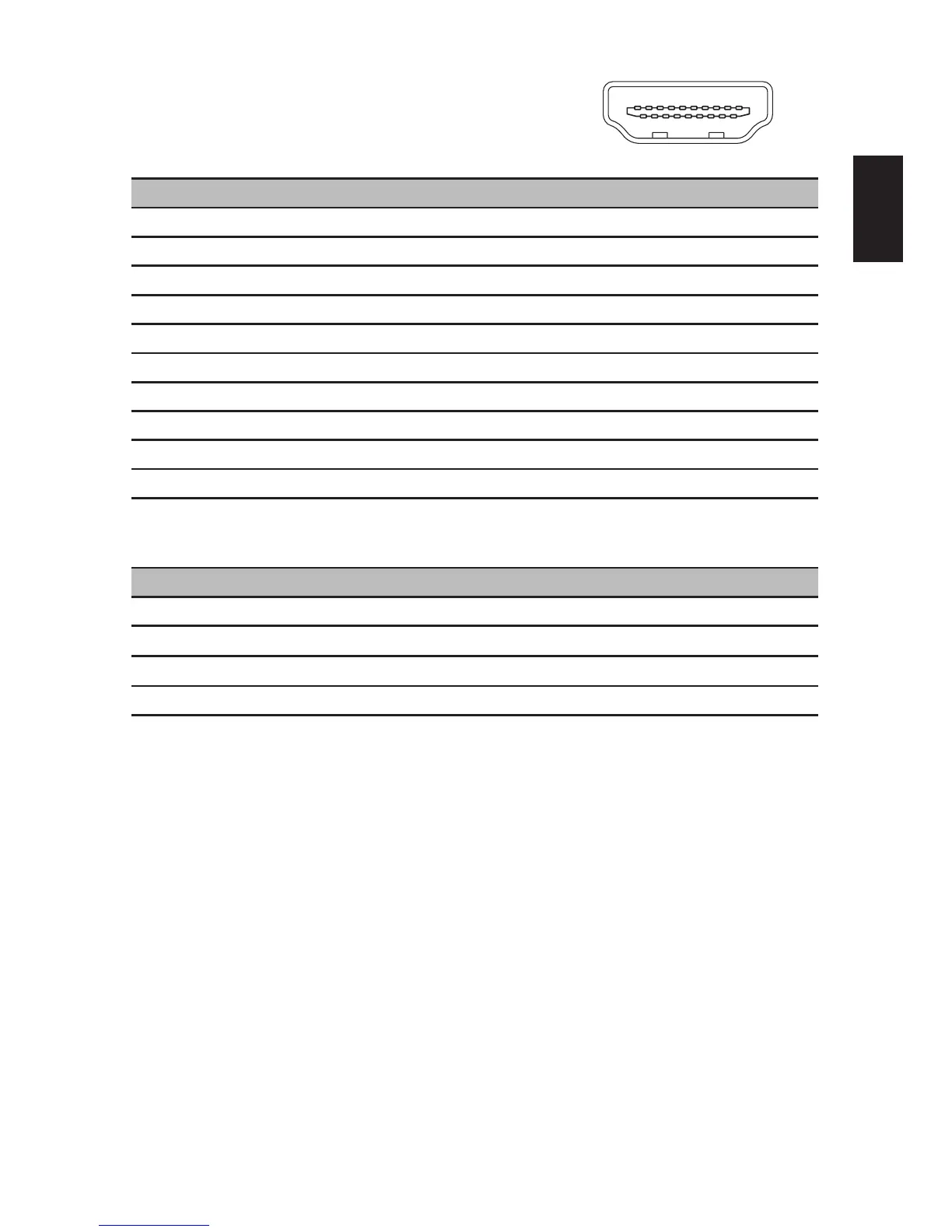

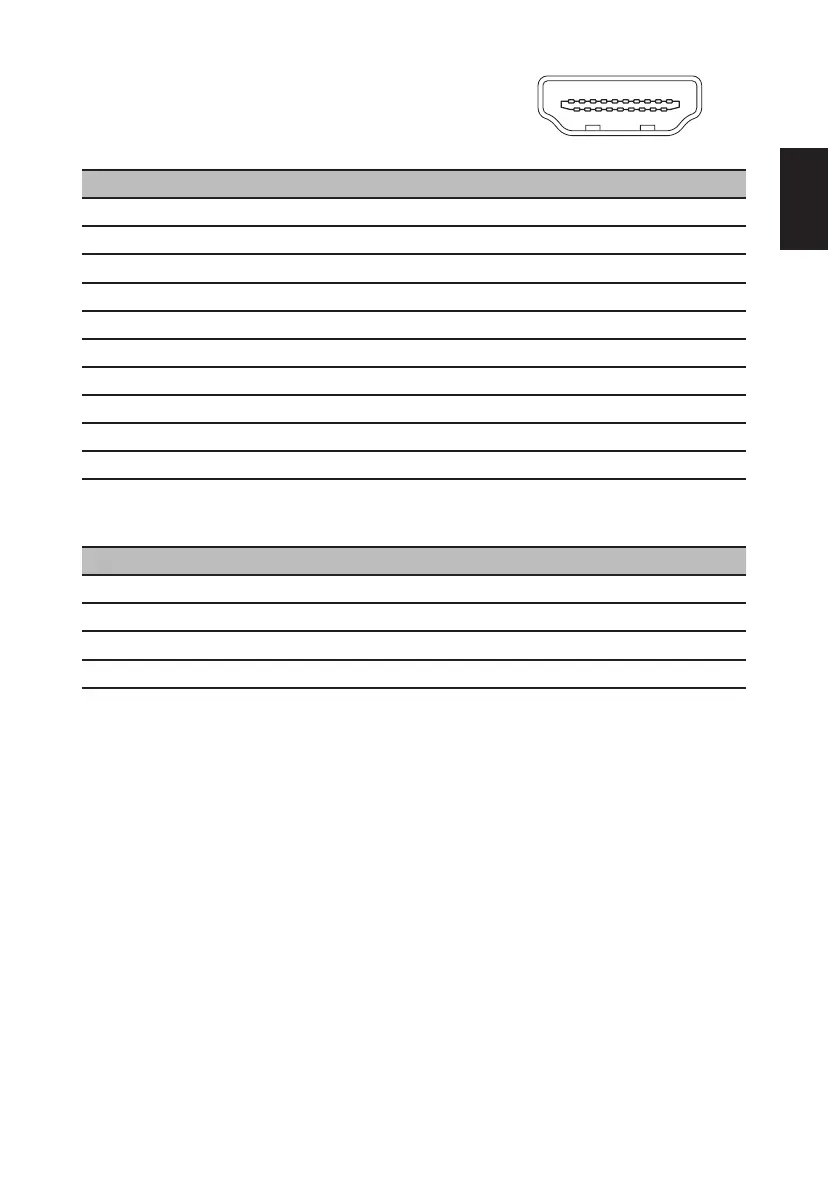

19-pin color display signal cable
PIN No. Description PIN No. Description
1 TMDS Data2+ 2 TMDS Data2 Shield
3 TMDS Data2- 4 TMDS Data1+
5 TMDS Data1 Shield 6 TMDS Data1-
7 TMDS Data0+ 8 TMDS Data0 Shield
9 TMDS Data0- 10 TMDS Clock+
11 TMDS Clock Shield 12 TMDS Clock-
13 CEC 14 Reserved (N.C. on device)
15 SCL 16 SDA
17 DDC/CEC Ground 18 +5V Power
19 Hot Plug Detect
PIN No. Description PIN No. Description
7 MHL+ 9 MHL
18 VBUS 19 CBUS
5 GND 11 GND
17 GND
*Only for MHL models
1113151719 97531
26481014 121618
