Page #14 background image
14

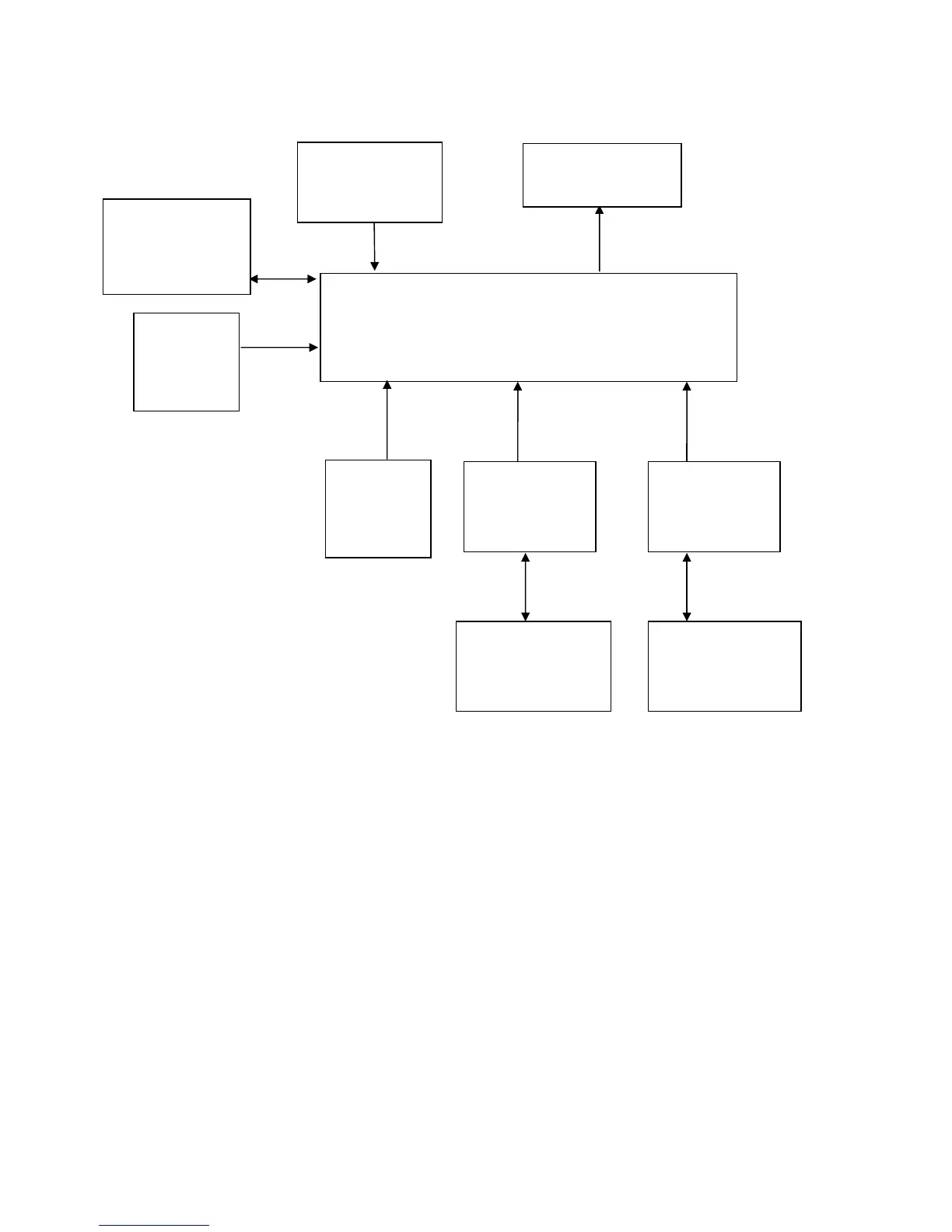

Main Board Diagram
FLASH ROOM
PM25LV010A
(U402)
Scalar IC TSUMU58BWHL-LF
(Include MCU ,ADC, OSD)
(U202)
D-Sub
Connector
(CN101)
H sync
V sync
RGB
LCD Interface
(CN301)
Key Board
Control
CN201
Crystal
(X201)
14.318MHz
DVI
Connector
(CN103)
EEPROM
M24C04-W
MN6TP
D-Sub DDC
M24C02-WMN6TP
(U101)
DVI DDC
M24C02-WMN6TP
(U102)
