29

Machine Disassembly

This chapter contains step-by-step procedures on how to disassemble the monitor for

maintenance.

Disassembly Procedure

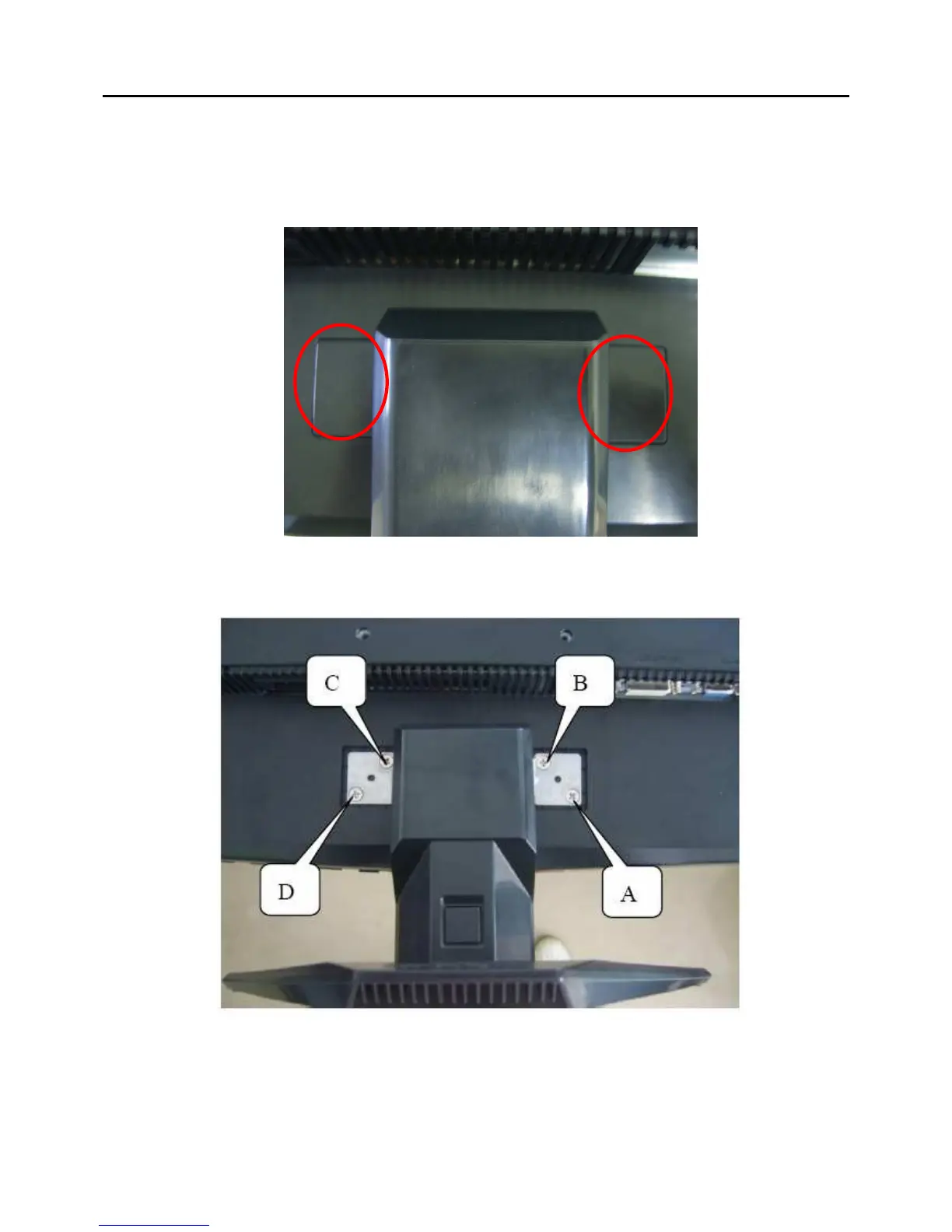

1. Remove the cover hinge marked in red. (Fig 1)

Fig 1

2. Remove the screws as following indicate to release base stand . (Fig 2)

Fig 2

Chapter 3

Questions and Answers:

J
Joshua FisherAug 6, 2025
What to do if OSD is unstable or not working on Acer P203W Monitor?
- T
  Thomas HawkinsAug 6, 2025
  If the OSD (On-Screen Display) on your Acer Monitor is unstable or not working, try these steps: * Check if the Keypad board is connected normally; if not, connect it. * Verify the Button Switch is functioning correctly; replace it if necessary. * Determine if the Keypad board is working correctly; replace it if needed. If these steps don't resolve the issue, check the main board.
B
Bruce MckinneyAug 19, 2025
How to troubleshoot Acer P203W panel power circuit issues?
- J
  jonathan97Aug 19, 2025
  To troubleshoot panel power circuit issues on your Acer Monitor, check the PPWR panel power relative circuit Q301, Q302. Also, check if CN301 PIN1 has the correct voltage. Note whether PPWR responds when the power switch is toggled from on to off. Try turning the power on and off, and consider replacing U202. If all else fails, replace the panel.
