Acer Predator XB273U User Manual

EN-7

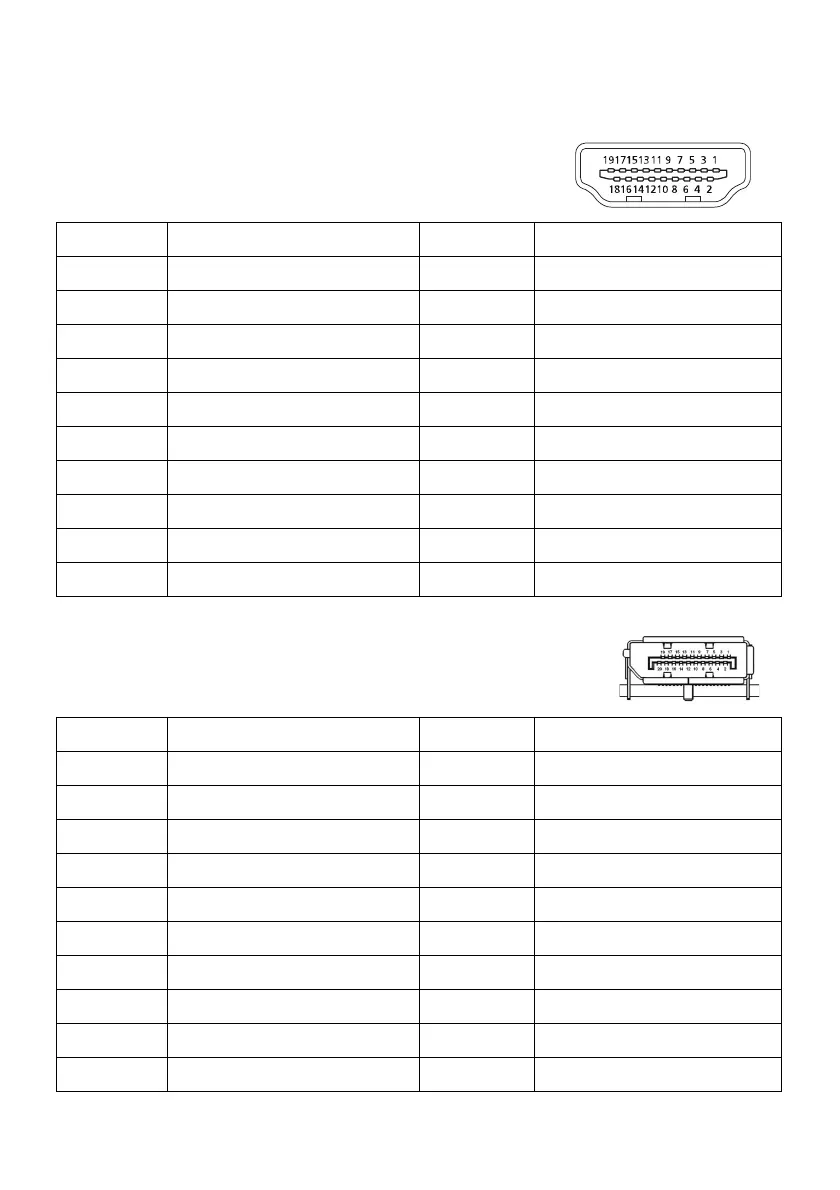

CONNECTOR PIN ASSIGNMENT
19-Pin Color Display Signal Cable*
* only for certain models
20-Pin Color Display Signal Cable*
* only for certain models
PIN Meaning PIN Meaning
1. TMDS Data2+ 10. TMDS Clock+
2. TMDS Data2 Shield 11. TMDS Clock Shield
3. TMDS Data2- 12. TMDS Clock-
4. TMDS Data1+ 13. CEC
5. TMDS Data1 Shield 14. Reserved (N.C. on device)
6. TMDS Data1- 15. SCL
7. TMDS Data0+ 16. SDA
8. TMDS Data0 Shield 17. DDC/CEC Ground
9. TMDS Data0- 18. +5V Power
19. Hot Plug Detect
PIN Description PIN Description
1. Lane0(p) 11. GND
2. GND 12. Lane3(n)
3. Lane0(n) 13. Config1
4. Lane1(p) 14. Config2
5. GND 15. AUX_CH (n)
6. Lane1(n) 16. GND
7. Lane2(p) 17. AUX_CH (p)
8. GND 18. Hot Plug Detect
9. Lane3(n) 19. DP Power_Return
10. Lane3(p) 20. DP Power

Acer Predator XB273U Specifications

General

Screen shape	Flat
Backlight type	LED
Display diagonal	27 \
Display technology	LCD
Native aspect ratio	16:9
Maximum refresh rate	170 Hz
Contrast ratio (dynamic)	100000000:1
Contrast ratio (typical)	1000:1
Display number of colors	1.07 billion colors
Display diagonal (metric)	68.6 cm
Display brightness (typical)	400 cd/m²
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	DisplayHDR 400
NVIDIA G-SYNC type	G-SYNC Compatible
RMS rated power	4 W
Number of speakers	2
Product color	Black
Country of origin	China
Market positioning	Gaming
DisplayPort version	1.2
Tilt angle range	-5 - 25 °
Height adjustment	115 mm
Panel mounting interface	100 x 100 mm
Power consumption (off)	0.21 W
Power consumption (standby)	0.25 W
Cables included	AC, DisplayPort, HDMI, USB
Package depth	228 mm
Package width	680 mm
Package height	506 mm
Package weight	8600 g
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	220 mm
Width (with stand)	614 mm
Height (with stand)	541 mm
Weight (with stand)	7750 g
