4
Introduction
This quick start guide provides the basic information, front panel functions
and general specifications of Agilent U1600B Series handheld digital
oscilloscopes. The U1600B Series can also function as a digital multimeter
(DMM) and data logger. With its 4.5- inch LCD color display, it is capable of
clearly distinguishing waveforms from two channels. The U1600B Series
handheld digital oscilloscopes are high performance troubleshooting tools in
multi- industrial automation, process control, facility maintenance and
automotive- service industries. The U1600B Series comprises two models:
U1602B and U1604B, with 20 MHz and 40 MHz bandwidths, respectively. Both
models are dual- channel scopes with real- time sampling rate of up to 200
MSa/s. Users can use the Dual Waveform Math (DWM) and Fast Fourier
Transform (FFT) functions (in U1604B) to perform a quick waveform analysis
in both time and frequency domain. The U1600B Series with built- in 6000-
count resolution and true RMS comes with an auto range function that allows
users to perform quick and accurate DMM measurements. Additionally, with
data logger function, users can perform automatic data logging for all DMM
measurements.

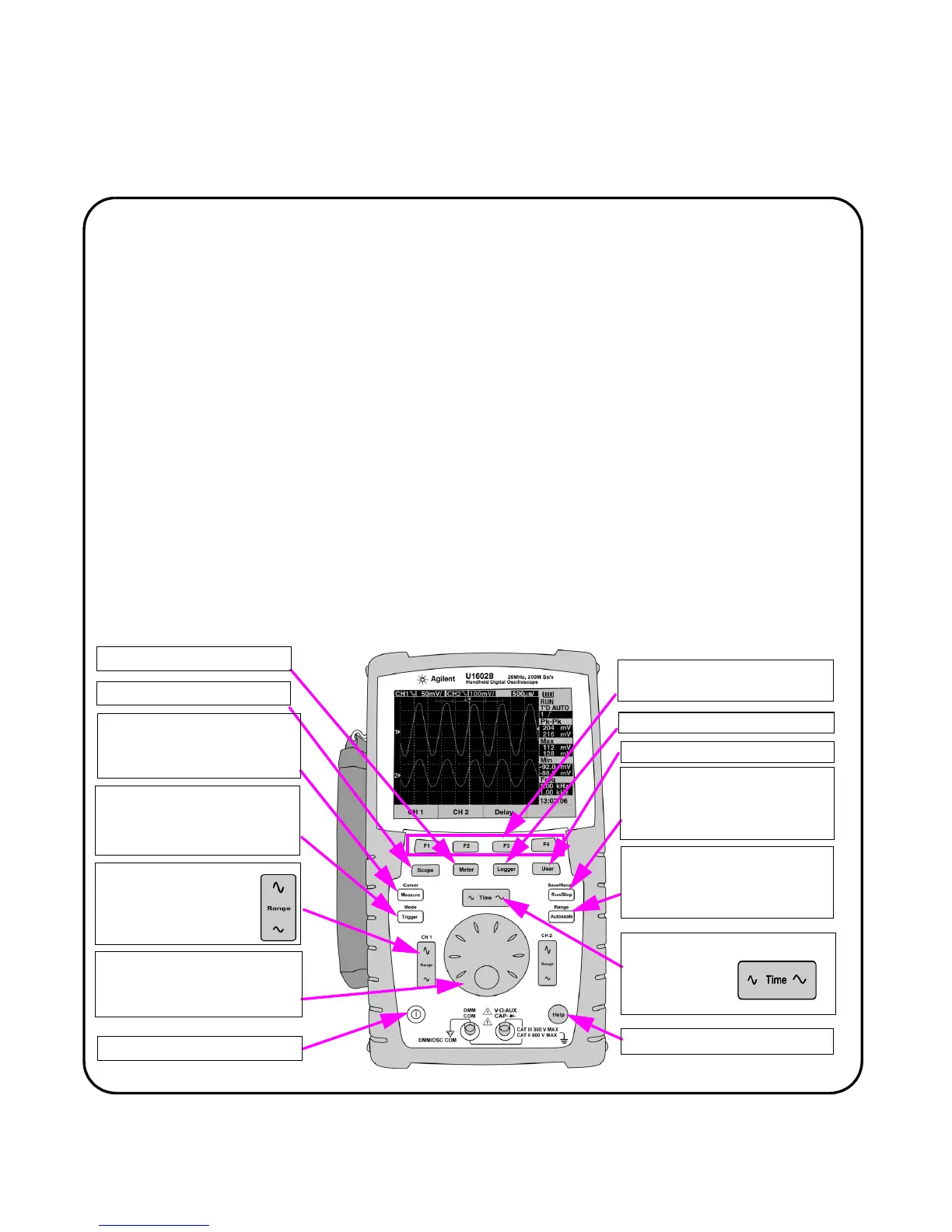

The Front Panel at a Glance
Quick Help button
Power Switch button
Softkeys to select submenu of
each function mode.
Logger mode button
User mode button
Scope mode button
Meter mode button
Auto measurement button
To access Cursor mode, press
and hold the button.
Run/Stop button
To access Save/Recall mode,
press and hold the button
Trigger button
To access Trigger mode, press
and hold the button.
Autoscale button
For manual ranging setting, press
and hold the button.
Horizontal scale
button to
increase and
reduce time/
Vertical scale button to
increase and reduce
volt/div for respective
channel.
Turn clockwise or anti-clockwise
for value selection and press the
knob to set the value.
