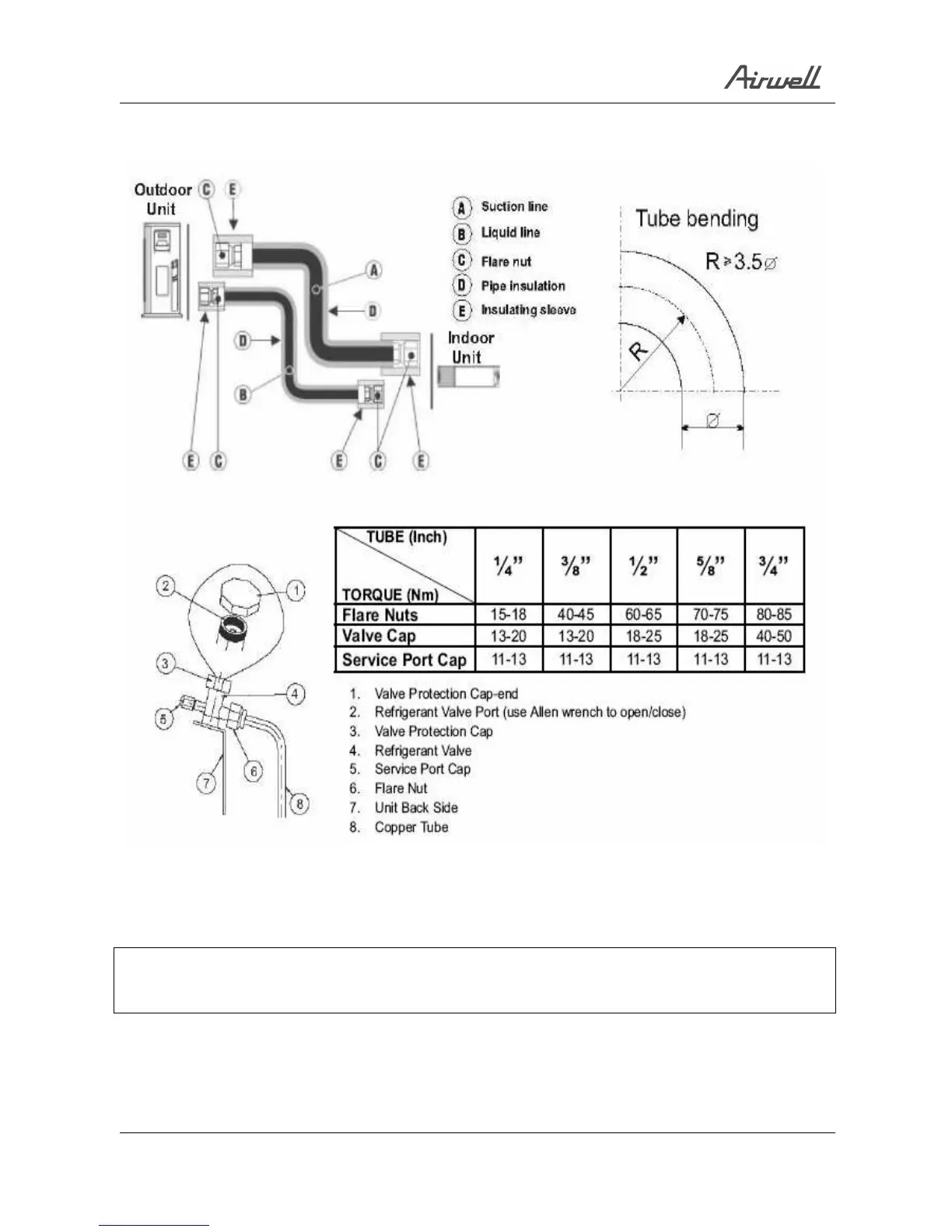

TUBING CONNECT
IONS
SM PNXADCI 1-A.1 GB
15-1
15.
TUBING C
ONNECTIO
NS
W
he
n the outdoor unit is i
nstalled above the indoor unit an oil trap
is required every 5m along the
suction line at the low
est point of the riser. In case the indoor uni
t is installed above the outdoor, no
trap is required.
