OmniSwitch 6850 Series Power Supplies OmniSwitch 6850 Series Chassis and Hardware Components
page 2-88 OmniSwitch 6850 Series Hardware Users Guide September 2009
4 Tighten the clamp by tightening the screw above the slot into which you inserted the wire lead. The
wire lead should be securely attached inside the connector. You should be able to pull on the wire and not
dislodge it.
Warning. For DC input voltages, the positive (+) wire of the sourcing equipment, such as a battery or
rectifier, must be connected to the positive (+) terminal of the OmniSwitch DC power supply and the
negative (-) wire of the sourcing equipment must be connected to the negative (-) terminal of the
OmniSwitch DC power supply."
5 Repeat Steps 2 through 4 for the remaining positive and negative wire leads.

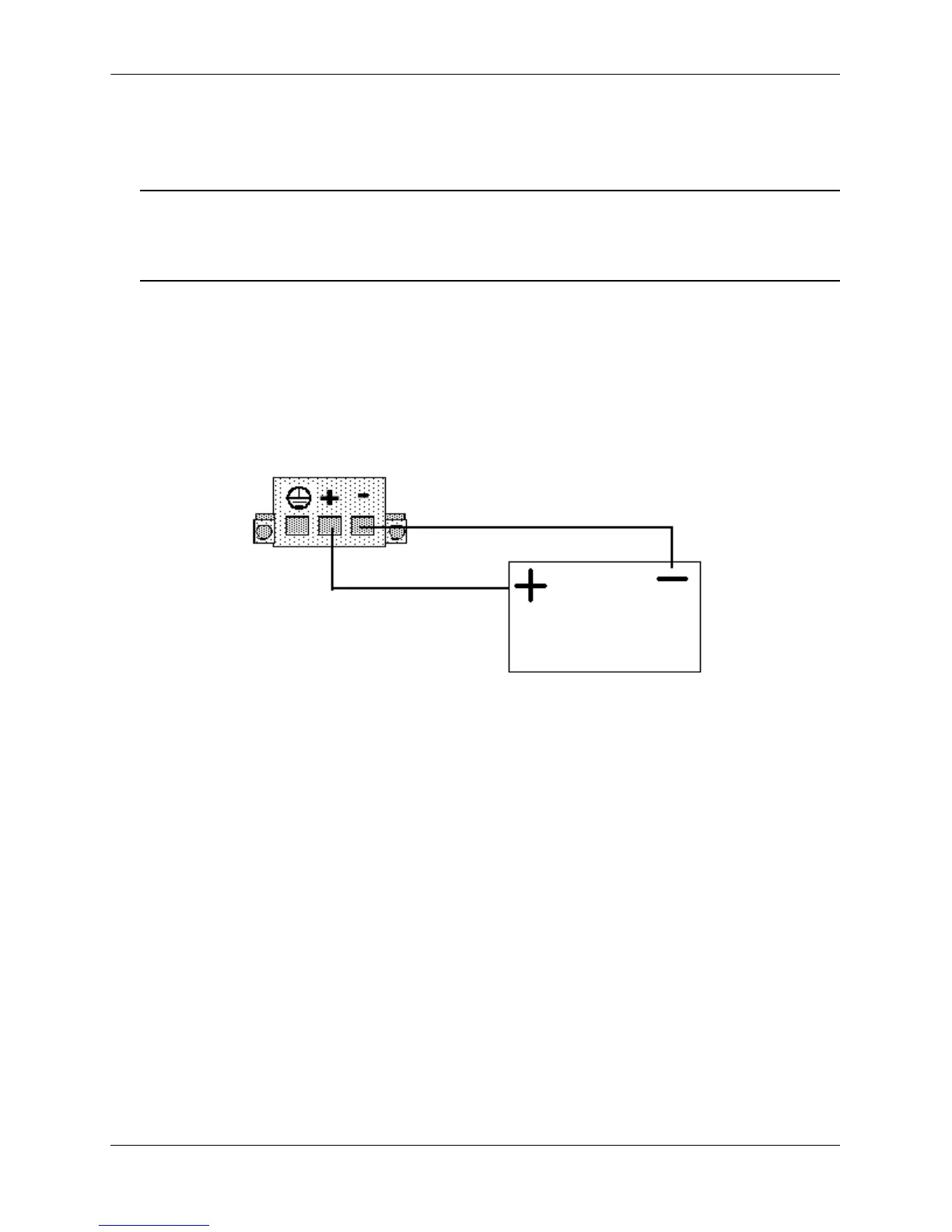

Correct Polarity Connections
DC Power Source
OS6855 Power Supply
