2. Follow the procedure in After working inside your computer.
Solid-state drive
Removing the solid-state drive
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
About this task
NOTE: The following procedure applies only to computers shipped with an M.2 2280 solid-state drive.

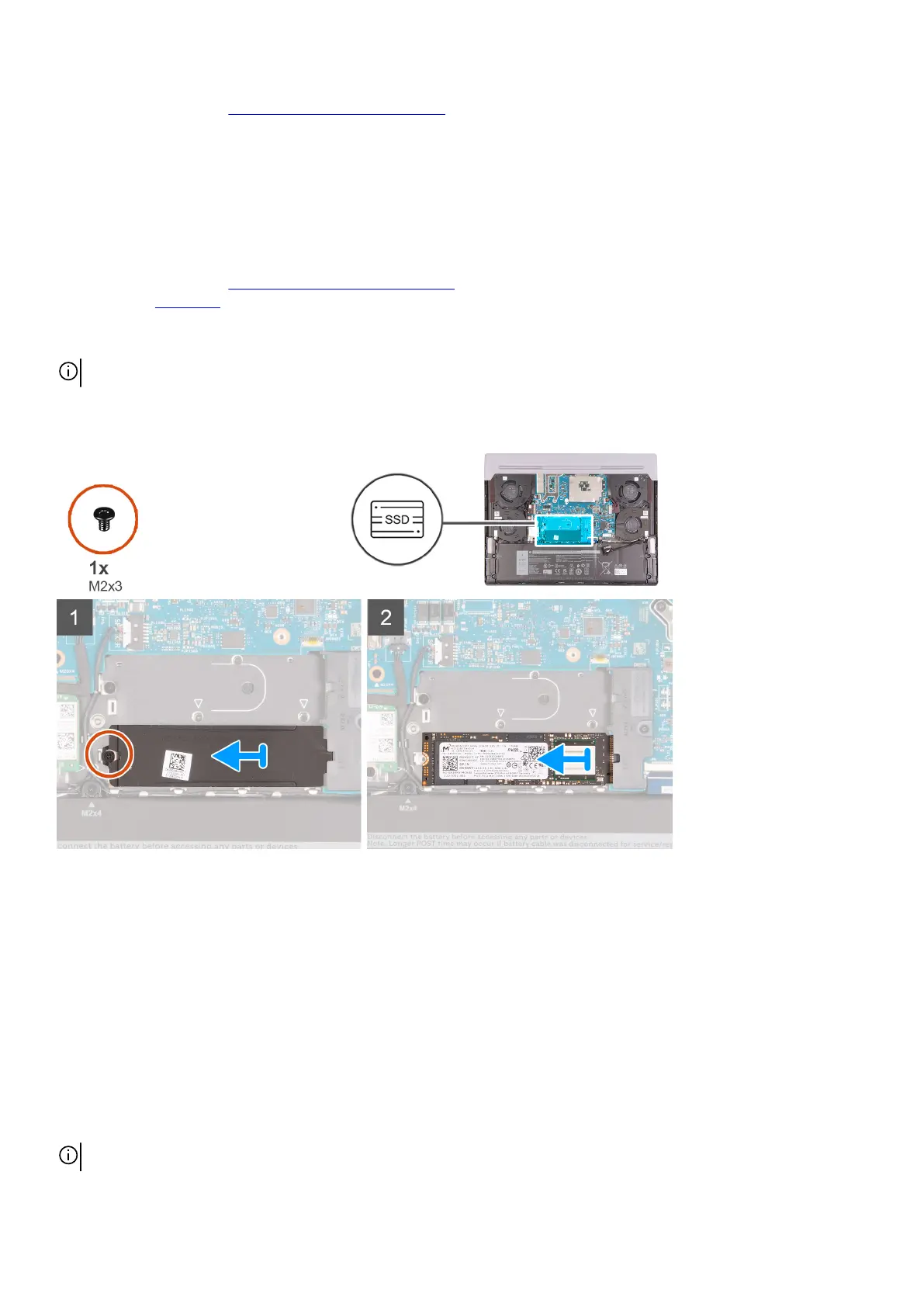

The following image(s) indicate the location of the M.2 2280 solid-state drive and provides a visual representation of the removal
procedure.
Steps
1. Remove the screw (M2x3) that secures the solid-state drive thermal shield to the solid-state drive and palm-rest and keyboard
assembly.
2. Lift and remove the solid-state thermal shield off the solid-state drive.
3. Slide and remove the solid-state drive from the solid-state drive slot.
Installing the solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
NOTE: The following procedure applies only to computers shipped with an M.2 2280 solid-state drive.
23
