Steps

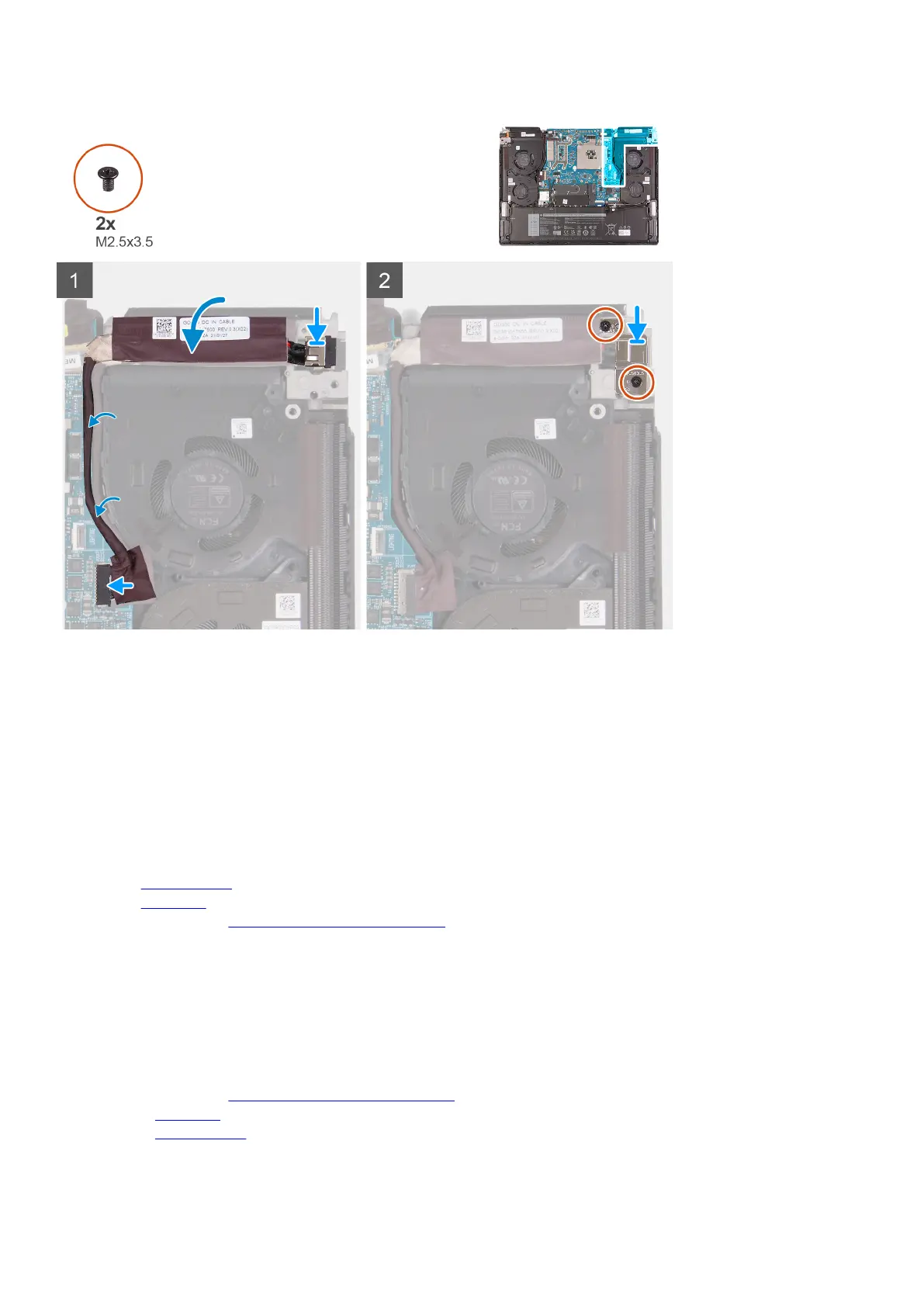

1. Align and place the power-adapter port into the slot on the palm-rest and keyboard assembly.
2. Adhere the power-adapter port cable to the fan and heat-sink assembly.
3. Connect the power-adapter port cable to the system board.
4. Route the power-adapter port cable through the routing guides on the fan and heat-sink assembly.
5. Place the power-adapter port bracket on the power-adapter port.
6. Align the screw holes on the power-adapter port bracket with the screw holes on the palm-rest and keyboard assembly.
7. Replace the two screws (M2.5x3.5) that secure the power-adapter port bracket to the palm-rest and keyboard assembly.
Next steps
1. Install the
rear I/O-cover.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Headset port
Removing the headset port
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the
rear I/O-cover.
