ALLEN & HEATH dLive DM0 MixRack User Manual

DM0 MixRack Getting Started Guide
10
AP10972 Issue 1

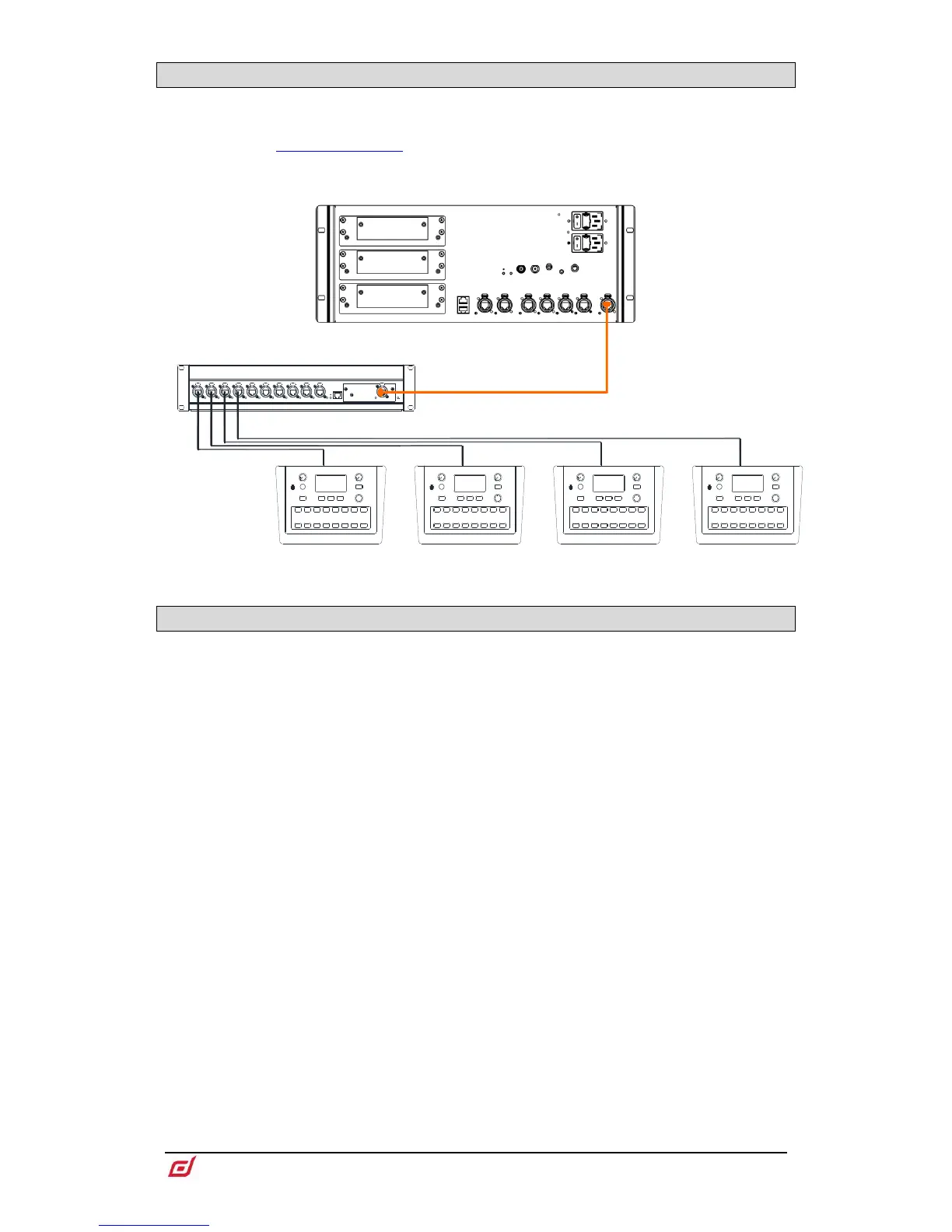

5.3 ME system connection
Plug a touring grade CAT5e (or higher specification) cable up to 100m long between the MixRack ME port
and the ME-1 or ME-U.
 Refer to www.allen-heath.com for cable requirements, recommendations, and a list
of CAT5 cables available to order.
5.4 Connect a laptop or wireless router
Connect a laptop, router or access point to either of the Network ports to use with dLive Editor or iOS apps.
Read the Release Notes and Help Files accompanying the software or apps for further information.
 dLive communicates over TCP/IP. All devices on the network including the MixRack
and Surface must have compatible IP addresses. Factory defaults are:
MixRack 192.168.1.70
Surface 192.168.1.71
Subnet Mask 255.255.255.0
Gateway 192.168.1.254
For direct, wired laptop connections, set your laptop to a static, compatible IP
address, for example 192.168.1.10.
For wireless connections, set your router / access point to a compatible IP address,
for example 192.168.1.254, and its DHCP range to a compatible range of addresses,
for example 192.168.1.100 to 192.168.1.200. Set any wireless laptop or mobile device
to DHCP / ‘obtain an IP address automatically’.

ALLEN & HEATH dLive DM0 MixRack Specifications

Operating Environment

operating temperature range	0°C to 35°C
operating temperature range in Fahrenheit	32°F to 95°F

Power

mains power voltage	100-240V AC
mains power frequency	47-63Hz
mains power consumption	90W max

Weight and Dimensions

width	482.6 mm
depth	355 mm
height	176 mm
weight	12 kg
boxed width	600 mm
boxed depth	480 mm
boxed height	330 mm
boxed weight	15 kg
