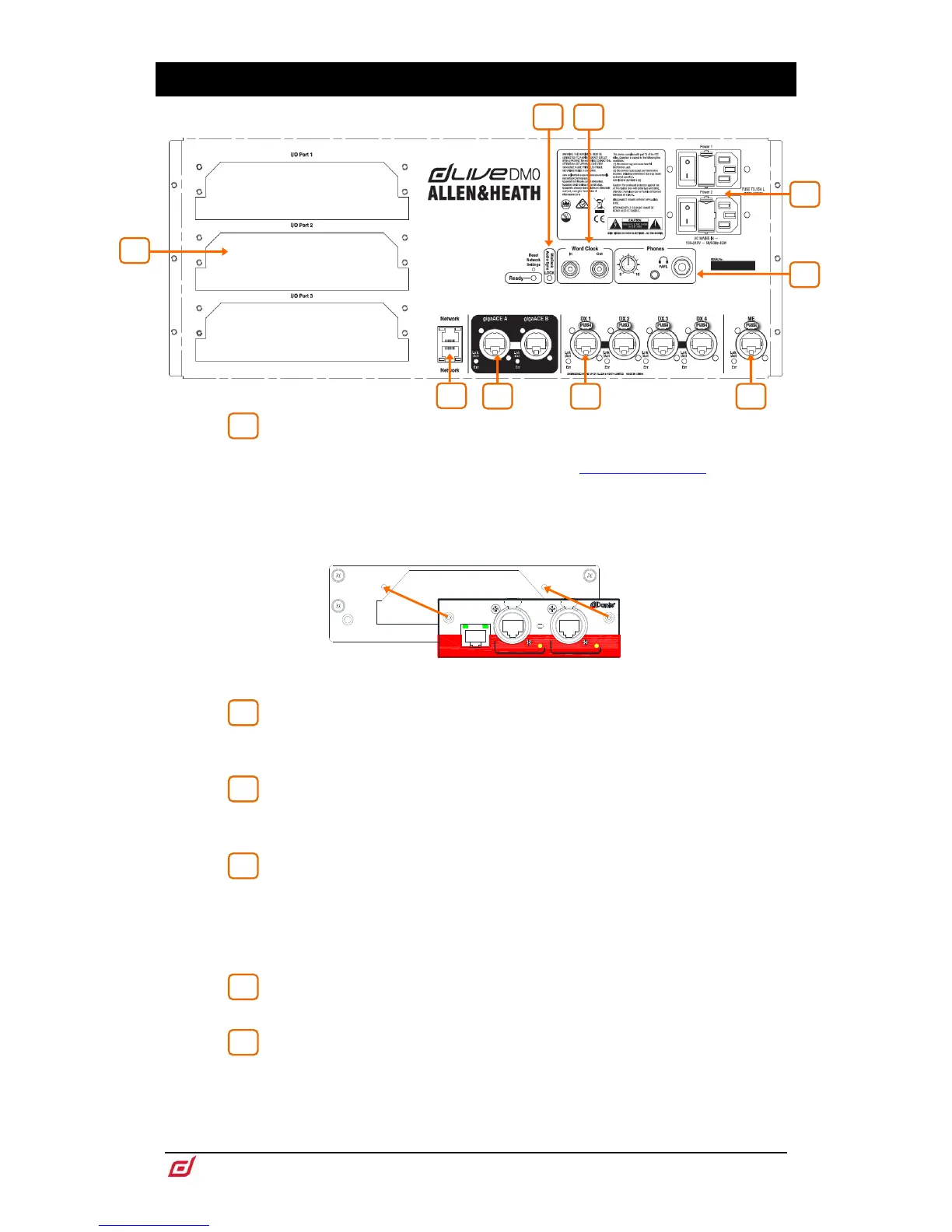

3. Rear Panel
I/O Ports – 3x audio interface ports 128x128 channels each, independently
assigned. Fit one of the option cards available for system expansion, digital mic
splitting, recording or distributed audio networking. Refer to www.allen-heath.com for
a list of available option cards.
iLive / GLD option cards (M-Dante, M-Waves, M-ES-V2, M-ACE, M-MADI) can be
used with dLive when fitted with the M-DL-ADAPT ‘letter-box’ adapter. This
provides a 64x64 48kHz interface with built-in Sample Rate Conversion.
Use the I/O screen to patch signals from or to the I/O Ports.
Audio Sync Lock – Indicates that the audio is sync locked to a valid clock
source. If this does not light up then check that the correct clock source is selected in
the MixRack / Audio / Audio Sync screen.
Word Clock I/O - BNC connectors for syncing from an external audio clock
or providing a clock to other devices. Use the MixRack / Audio / Audio Sync screen
to select the clock source.
Mains – Redundant power supplies with independent IEC sockets, On/Off
rocker switches and fuses.
Heed the safety warnings printed on the panel.
A plastic P-clip cable clamp is provided to secure the mains cable. Slot the cable in
or lock it in place using a star Torx T20 screwdriver to refit the clamp around the cable.
Phones - Standard 1/4” and 1/8” jack sockets and level control for the built-
in headphone amplifier. The output follows the PAFL selection.
Network –2x RJ45 Gigabit Ethernet ports. Connect a laptop or a wireless
router to use with dLive Editor or iOS apps. All devices on the network must have
compatible IP addresses.
