FRONT-OF-HOUSE
These switches are
recessed to avoid
accidental operation. Set
using a pen tip or pointed
object.
MONO
4
2
6
FOLDBACK
pre-fade aux sends
3
1
5
EFFECTS
1
2
3
4
sends
returns
groups
PRE
POST
up
up
Set the MONITOR
MODE switch to the up
position for mono out (L+R
sum).
Set the REV switches to
the up position for
conventional group/LR
operation.

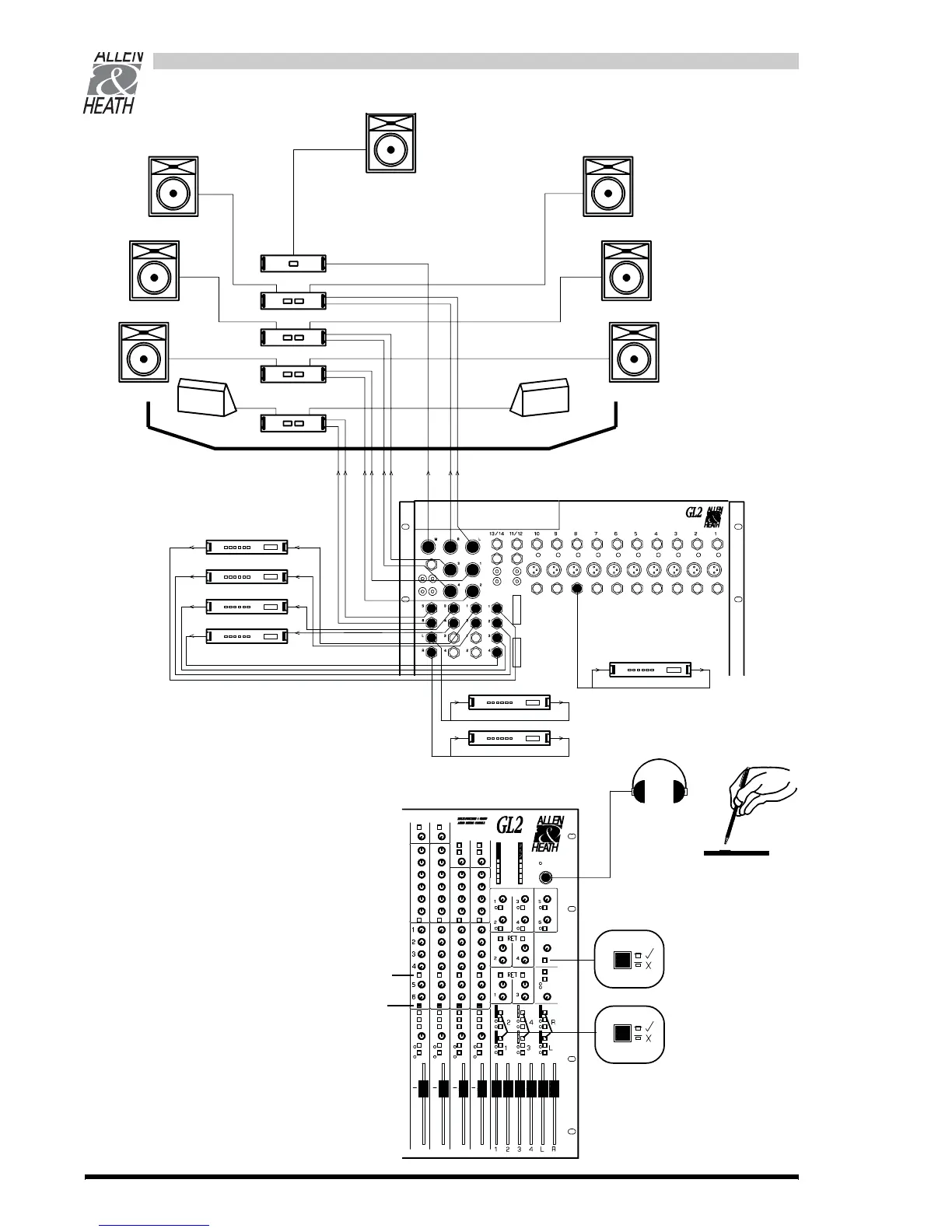

This example shows the 4 groups, L, R, and
Mono outputs feeding a 7 stack FOH amplifica-
tion system. The groups provide independent
control of the additional left and right loud-
speaker stacks, or may be used for separate
effects or zone feeds, or for subgrouping to the
L-R mix.
Select aux 1 to 4 post-fade to access 4 effects
processing devices. Use Return inputs 1 to 4 to
add the effects to the L-Mono-R outputs. Alter-
natively use the stereo or mono channels to mix
the effects into the groups and foldback as well.
Select aux 5 and 6 pre-fade for 2 foldback
monitor sends.
The channel and output inserts may be used for
floating effects and signal processing devices
such as compressors, limiters and graphic equal-
isers.
insert
RIGHT
LEFT
These are often used to prevent excessive
peaks overloading the amplification
system, for example in club installations
subject to sound level control.
COMPRESSOR/LIMITERS
conference ... club ... disco ... live shows ... theatre ... church ... touring ...
