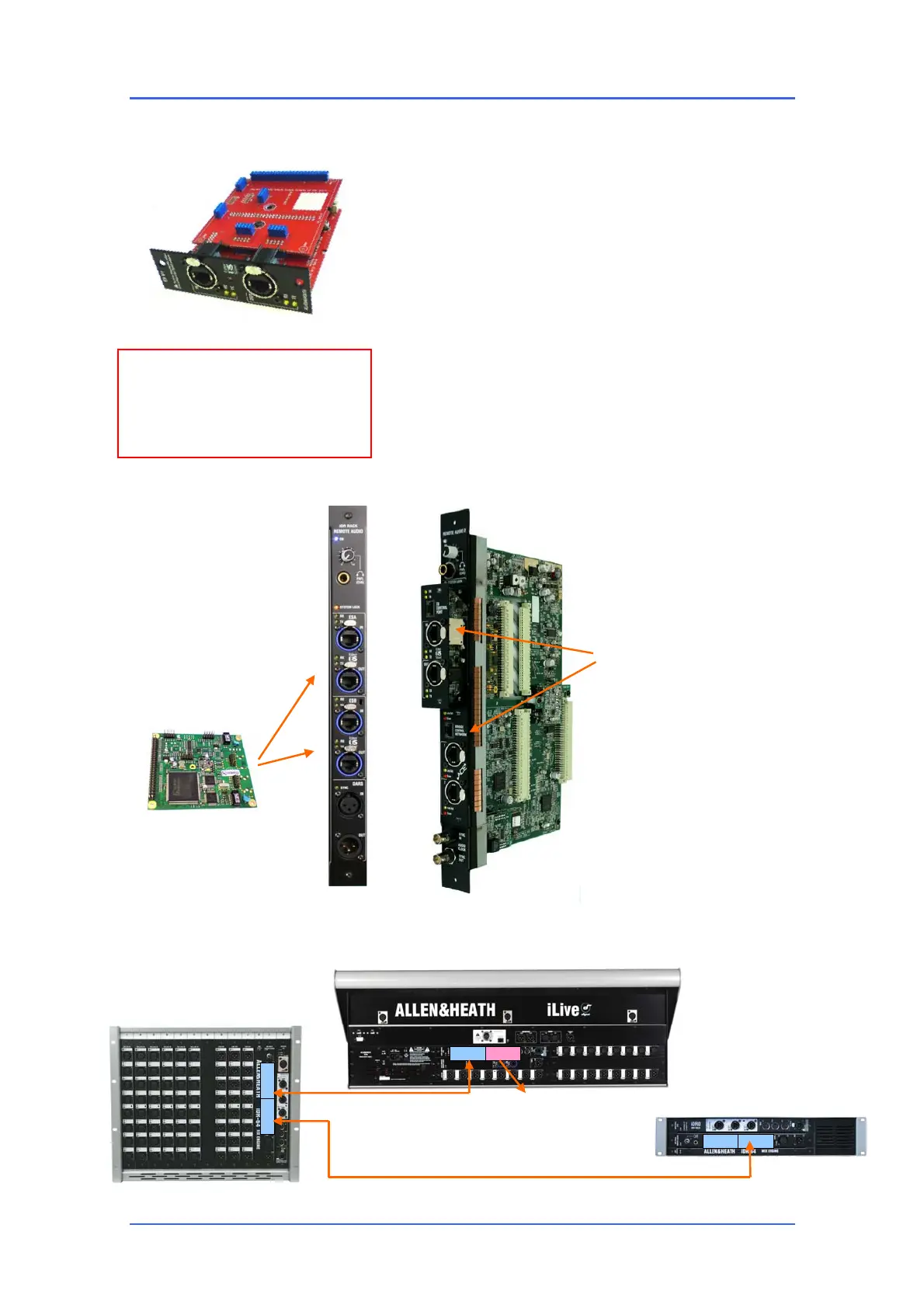

EtherSound card instructions – ES V1 base
M-ES-V1-BASE is a carrier frame that lets you re-use the original
Auvitran AVD EtherSound card option from the earlier Remote
Audio (RAB) module when upgrading to the more recent Remote
Audio 2 (RAB2) module.
The RAB2 module is available as an upgrade for existing users who
want to benefit from the wide range of audio interface options now
available for iLive. While the new M-ES-V2 EtherSound module
option using the smaller Auvitran AVDM card is available for RAB2,
the original card can be fitted using this carrier kit so providing a
lower cost upgrade for users wishing to continue with EtherSound
as the Port A Surface to MixRack link or to re-use the card for audio
expansion in Port B (MixRack only).
The original M-ETH-M card and the more recent M-ES2 option are
compatible with each other and the EtherSound network standard.
Note This carrier kit option is available only for use with the RAB2
module. It is not compatible with the iDR-64, 48, 32 or 16 Port B.
Part number M-ES-V1-BASE-A
RAB module
This is the original audio network
module fitted to the modular
iDR10 MixRack and standard
iLive Surfaces. Up to two
Auvitran AVD card options
could be fitted internally to
provide the ESA and ESB
EtherSound interface ports.
RAB2 module
This is the more recent audio
network module fitted to the iDR10
MixRack and standard iLive
Surfaces. Provides slots to fit up to
two from a range of audio
networking and digital interface
option cards.
M-ETH-M ES card kit
Option cards available:
M-ES-V1-BASE Carrier for earlier AVD card
M-ES-V2 ES using newer AVDM card
M-ACE Dual port ACE link
M-MMO ADAT, Aviom, iDR ports
M-MADI 64 channel dual port MADI
iDR10 MixRack
iDR0
A
B
A B
A
B
Port A = Surface to MixRack link
iLive-80, iLive-112, iLive-144, iLive-176
Note For firmware V1.7 this option is
not supported in the iLive Surface RAB2
module Port B. The only option
supported in Surface Port B is the MMO
module (ADAT, iDR link).
Port B = System expand, mic split,
record
Surface Port B M-MMO option only
