ALLEN & HEATH Olive S5000 User Manual

Surface Getting Started Guide
8
AP9899 Issue 3
Kensington Lock - A slot for fitting standard Kensington anti-theft security
devices.

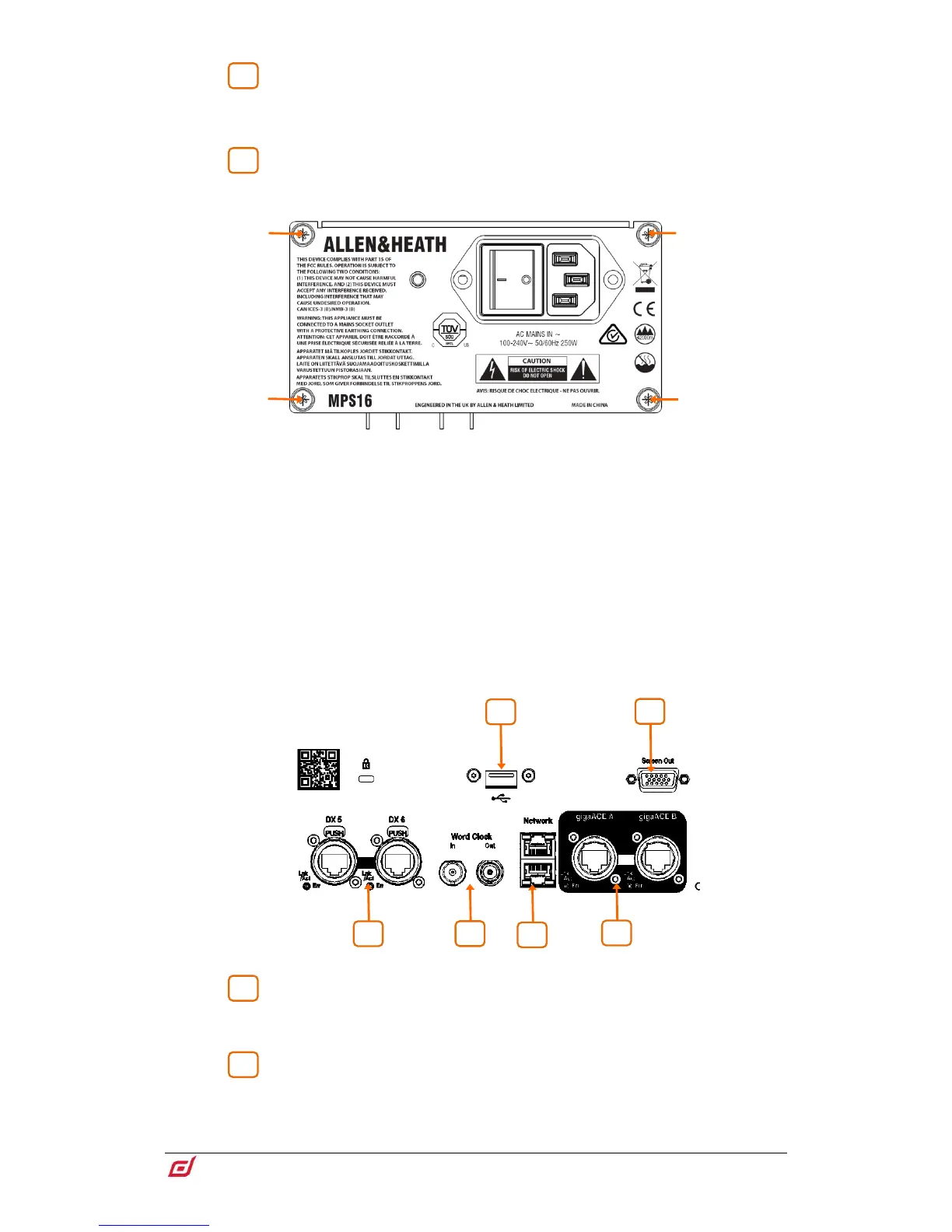

Power Supply – Hot swappable power supply with mains IEC socket and
On/Off rocker switch. To remove or replace, loosen the 4 screws indicated below and
slide the PSU out of the slot.
 dLive Surfaces ship with one PSU fitted. A second PSU can be fitted for
redundancy (part number MPS-16). Loosen the 4 captive thumb screws securing
the blank panel*, slide the PSU into the slot, and tighten the 4 captive thumb
screws indicated above. The Surface will automatically switch between the
supplies without interruption to the audio should one fail.
* On early dLive units, remove the 4 screws securing the blank panel using a star Torx T8
screwdriver.
 Heed the safety warnings printed on the panel.
A plastic P-clip cable clamp is provided to secure the mains cable. Slot the cable in
or lock it in place using a star Torx T20 screwdriver to refit the clamp around the cable.
Network – 2 RJ45 Gigabit Ethernet ports. Connect a laptop or a wireless
router to use with dLive Editor or iOS apps. All devices on the network must have
compatible IP addresses.
gigaACE link – MixRack to Surface link over Gigabit Ethernet (IEEE 802.3
Layer 2 compliant). A single Cat5e (or higher) cable carries bidirectional 96kHz audio
and control. Use two cables for redundancy – the system will seamlessly switch cable
in case of failures, without any audio dropout.
7
8
9
10
13
11
12
9
10
14
