18 XONE:32 User Guide
Specifications
0dBu = 0.775 Volts rms, +4dBu = 1.23V rms 0dBV = 1 Volt rms, -10dBV = 316mV rms
Max output level TRS +21dBu into >2k ohm
RCA +15dBu into >10k ohm
Headroom Channels +21dB
Mix to output +23dB
Freq response +0/-1dB 10Hz to 30kHz
Distortion < 0.02% THD+N @1kHz +10dBu
Crosstalk < 90dB Channel shutoff @1kHz
MIC EIN 22-22kHz -126dB 150 ohm source
Residual noise TRS -102dBu
RCA -92dBu
Mix noise TRS -87dB
Ch meters Peak reading 4 led
-15, 0, +5, +8 (PK)
Main meters Peak reading 12 led
-20 to +8 (PK)
Power Supply
Internal switch mode power unit with auto sensing mains input.
MAINS IN socket IEC 3 pin
Power lead Country dependent with moulded mains plug supplied
AC mains 100 to 240V AC @ 50/60Hz
Consumption 30W max
Mains fuse rating 100-240V AC T500mA 20mm
Dimensions and Weights

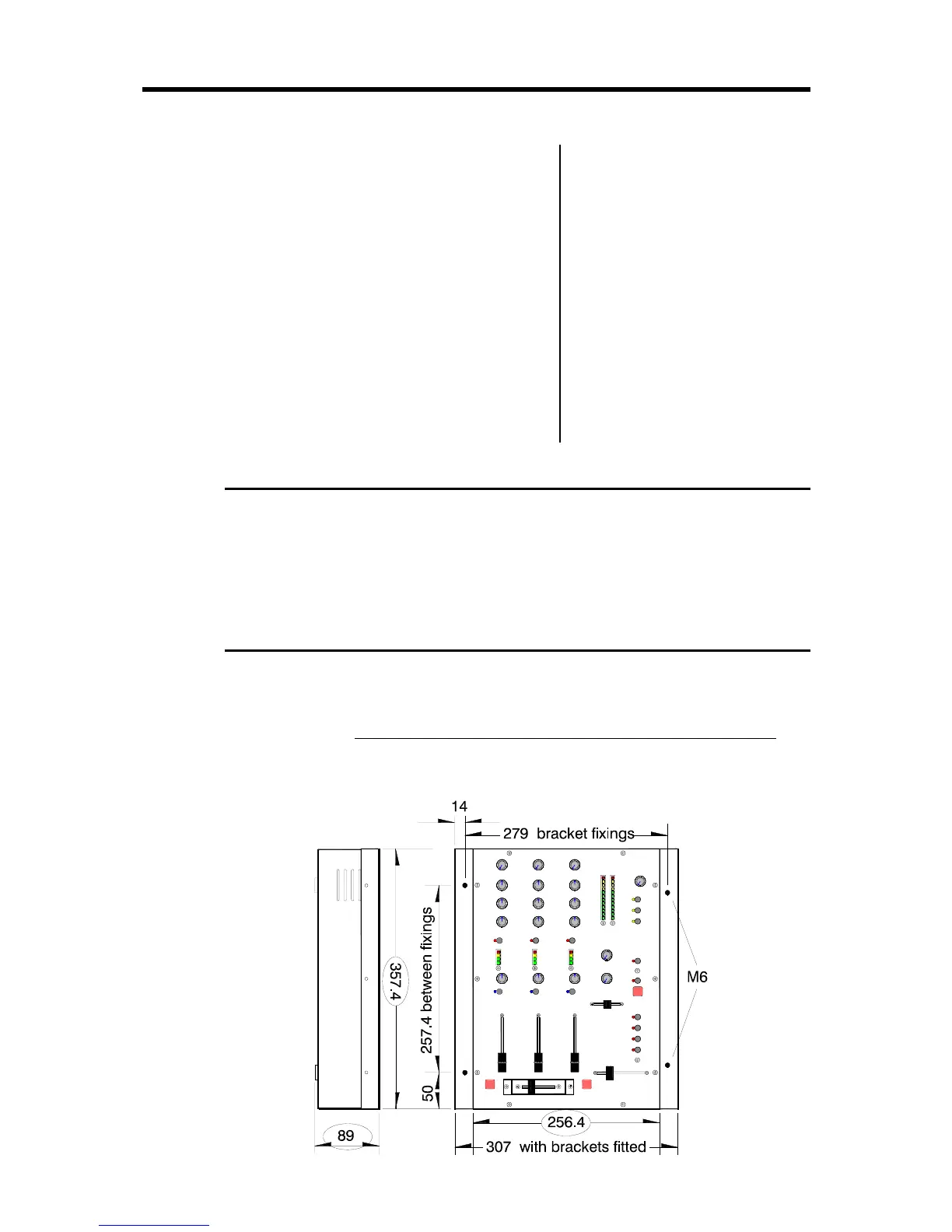

The console is fitted with rubber feet for desktop operation. An optional screw on rack ear kit is available for
rack or plinth mounting. This is fixed in place using M6 screws or bolts. Contact your Allen & Heath agent for
further information. The order code for the kit is: XONE:32-RK
Width Height Depth Weight
Desktop 257 mm (10.1”) 89 mm (3.5”) 358 mm (14.1”) 4 kg (9 lbs)
Rack ears fitted 307 mm (12.1”) 89 mm (3.5”) 358 mm (14.1”)
Packed 475 mm (18.7”) 210 mm (8.3”) 395 mm (15.6”) 5 kg (11 lbs)
Music EQ 3-Band +6/-26dB
100Hz, 1kHz, 10kHz
Mic EQ 2-Band +/-10dB
300Hz, 5kHz
HPF 60Hz
Ch fader 60mm stereo
Crossfader 45mm stereo VCA
Dual rail, gold contacts
Replaceable, P&G option
Filters Stereo analogue VCF
HPF, BPF, LPF types
100Hz to 20kHz sweep
LFO Finger tap tempo entry
Depth modulation of VCF
x2 Multiplier
