ALLEN & HEATH XONE:DB4 User Manual

Allen & Heath 24 XONE:DB4 User Guide

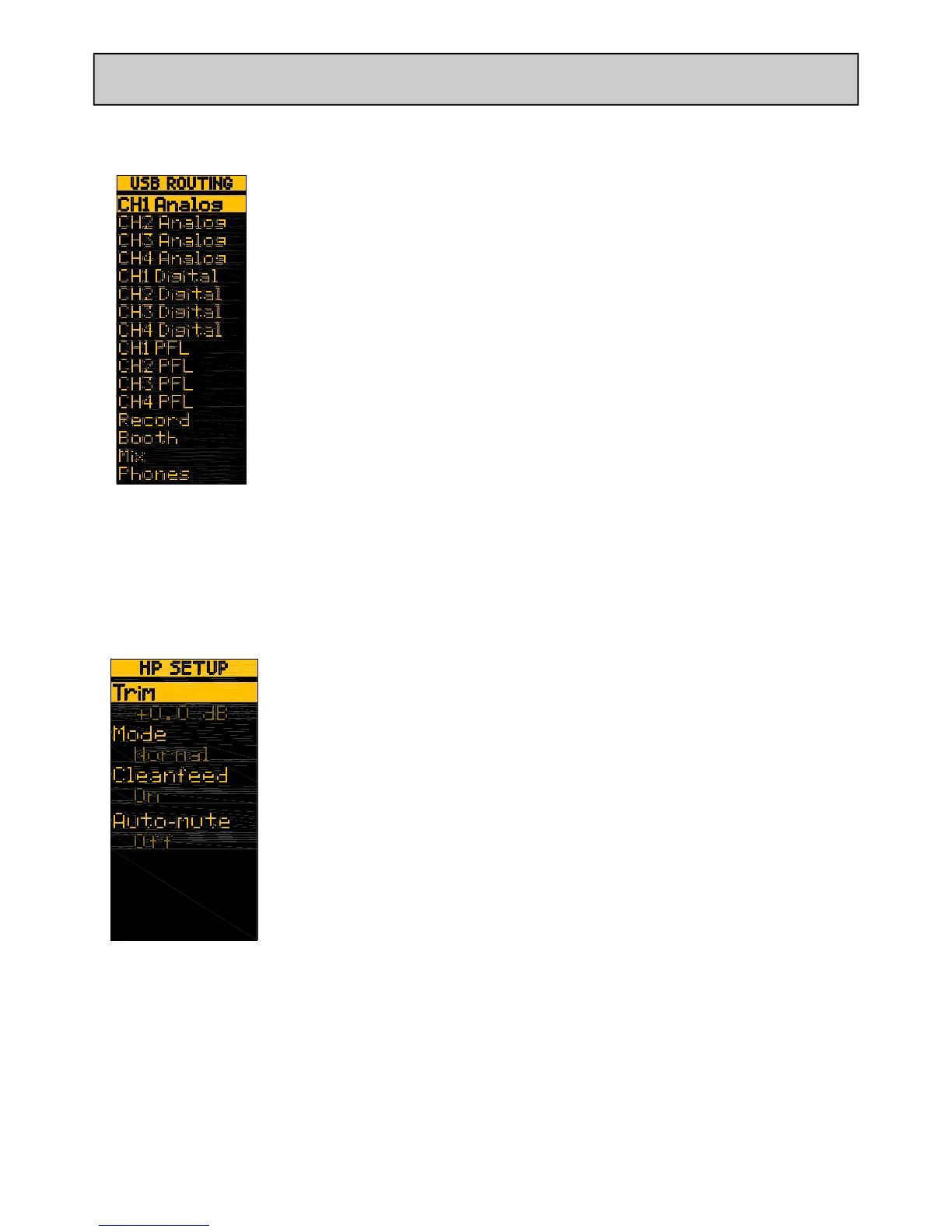

SETUP MENU
This menu selects the routing options for the upstream USB. Send 1 corre-
sponds to USB 1-2, send 2 to USB 3-4 etc. The options are:
CH1-4 Analog: Routes the selected converted analogue input to the
soundcard input.
CH1-4 Digital: Routes the selected digital input to the soundcard input.
CH1-4 PFL: Routes the selected pre-fade channel audio to the soundcard
input.
Record: Routes the record output to the soundcard input.
Booth: Routes the booth output to the soundcard input.
Mix: Routes the mix output to the soundcard input.
Phones: Routes the headphone (CUE) signal to the soundcard input.
To view the Soundcard Input Block Diagram, please see Page 28.
HP SETUP
This menu enables you to set the sensitivity, audio source and mode of the
headphone cue system
Trim: Adjusts the operating level of the headphone amplifier to match the sen-
sitivity of your headphones. The trim ranges from –28 to +12 dB.
Mode: Toggles between Split and Normal. In Split mode a mono sum of the
main mix is sent to the right headphone and the cue signal in the left. Use the
CUE/MIX control to pan between the two . The main meters will display cue
level on the left and mix level on the right.
Normal mode will provide a stereo cue or main mix signal to the headphone
output, dependant of the position of the CUE/MIX control. The meters will dis-
play a stereo signal level of the main mix, or the channel pre-fade signal level
when a Cue is activated.
Cleanfeed: Selects whether of not the signal from the Microphone input is
routed to the headphones when the CUE/MIX control is set to Mix; for in-
stance, if you don’t want to hear the MC’s microphone when beat-matching to
the main mix set this to On. The options are On/Off.
Auto-mute: Selects the non-cue’d audio source. If this is set to On, the head-
phone output will be muted until a channel Cue is activated. If set to Off, the
headphone output will default to the main mix or clean feed when all channels
cues are off.
USB ROUTING

ALLEN & HEATH XONE:DB4 Specifications

General

Frequency range	22 - 22000 Hz
Channels quantity	4 channels
Digital sound processing	- bit
Number of EQ bands per channel	4
Line Signal-to-Noise Ratio (SNR)	104 dB
XLR out	2
Microphone in	Yes
Line inputs (RCA)	8
Headphone connectivity	3.5 mm/6.35 mm
USB 2.0 ports quantity	1
Product color	Black
Video capability	No

Weight and Dimensions

Depth	358 mm
Width	320 mm
Height	88 mm
Weight	5100 g
Package depth	260 mm
Package width	530 mm
Package height	470 mm
Package weight	8600 g
